EDFA Optical Amplifiers

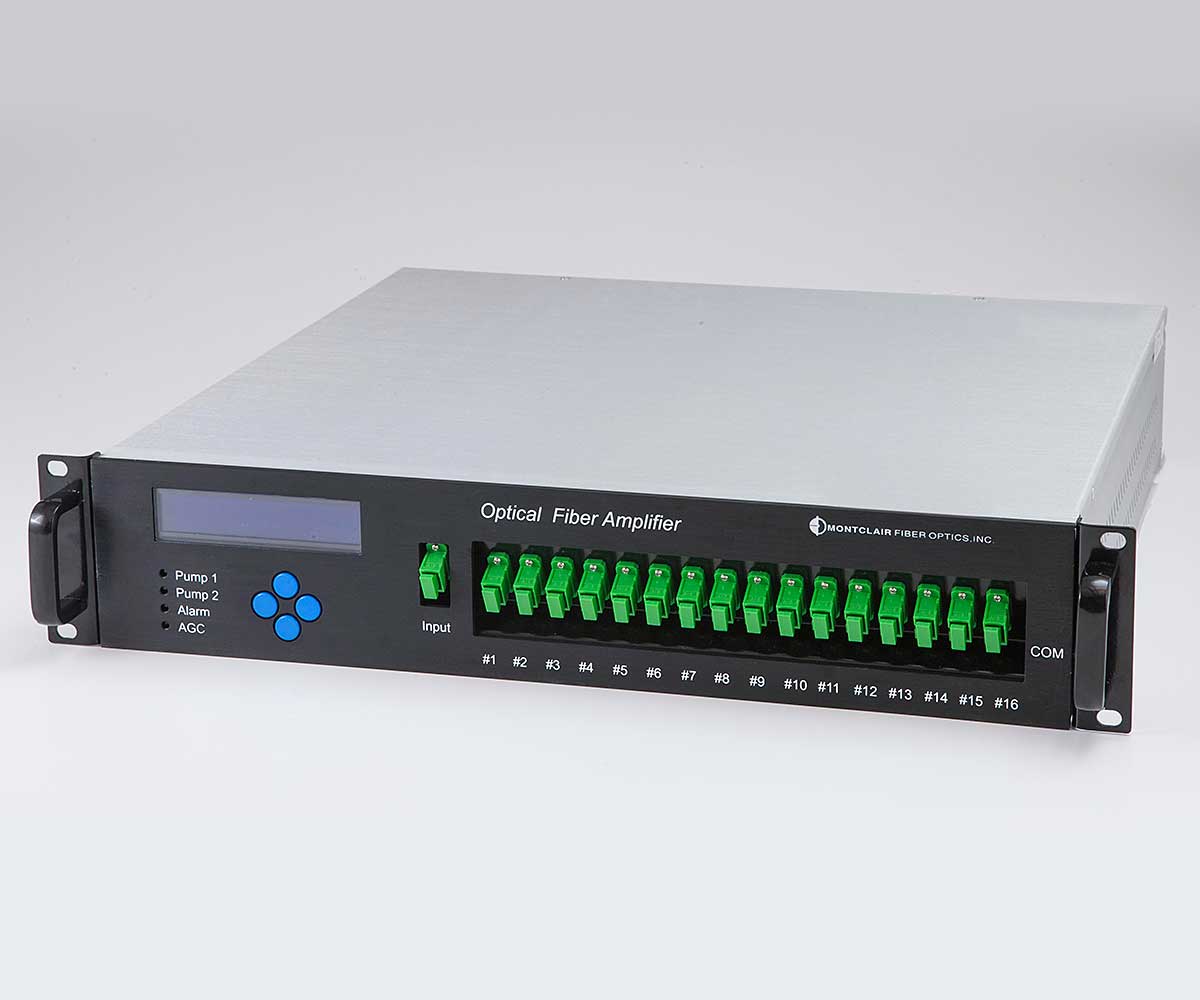

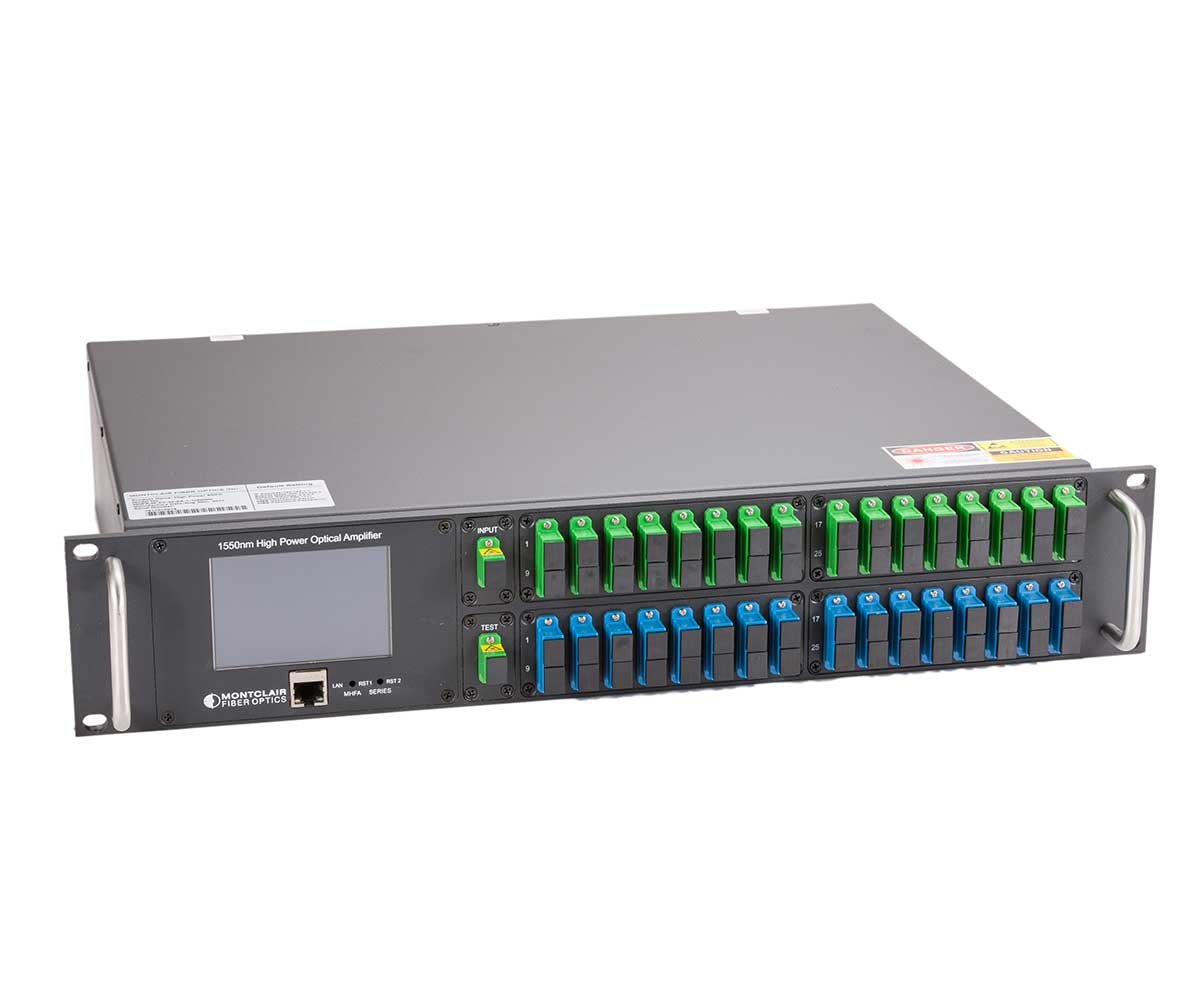

Montclair’s high power EDFA is characterized by low noise and high linearity performance to meet the most demanding requirements of CATV and FTTx applications. It offers a flexible, low-cost solution for large area networks and features an embedded total touch screen LCD for easy operation. The MHFA series of amplifiers are in standard 1U & 2U 19” and come equipped with 3 reliable cooling fans operating in parallel with microprocessor overheating protection.
Highly stable and reliable, Low noise figure < 5.5dB, Excellent gain flatness, Total Touch Screen LCD Monitoring, Redundant dual power supply, Available in up to 64 output ports, WDM PON 1310/1490/1550nm integration, High performance to cost ratio, Low power consumption, Up to 23dBm output power per port, 3 cooling fans in parallel operation.
