1550nm External Modulated Optical Transmitter

Add Product to Quote

Product Variations

Select a product variation and ‘Save’ to add the product to your quote.

Part No.	Port Configuration	Total output power (dBm)	Number of Output Ports	Power supply	Input / Output Ports

M-OTX-EM-55-2x10-R-CC-AFC	2x10	14	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x4-R-AA-ASC	2x4	8	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x5-R-AA-ASC	2x5	9	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x6-R-AA-ASC	2x6	10	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x7-R-AA-ASC	2x7	11	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x8-R-AA-ASC	2x8	12	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x9-R-AA-ASC	2x9	13	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x10-R-AA-ASC	2x10	14	2	Dual -48V DC	SC/APC
M--OTX-EM-55-2x4-R-BB-ASC	2x4	8	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x5-R-BB-ASC	2x5	9	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x6-R-BB-ASC	2x6	10	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x7-R-BB-ASC	2x7	11	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x8-R-BB-ASC	2x8	12	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x9-R-BB-ASC	2x9	13	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x10-R-BB-ASC	2x10	14	2	Dual 220V AC	SC/APC
M--OTX-EM-55-2x4-R-CC-ASC	2x4	8	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x5-R-CC-ASC	2x5	9	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x6-R-CC-ASC	2x6	10	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x7-R-CC-ASC	2x7	11	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x8-R-CC-ASC	2x8	12	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x9-R-CC-ASC	2x9	13	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x10-R-CC-ASC	2x10	14	2	Dual 110V AC	SC/APC
M--OTX-EM-55-2x4-R-AA-AFC	2x4	8	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x5-R-AA-AFC	2x5	9	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x6-R-AA-AFC	2x6	10	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x7-R-AA-AFC	2x7	11	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x8-R-AA-AFC	2x8	12	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x9-R-AA-AFC	2x9	13	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x10-R-AA-AFC	2x10	14	2	Dual -48V DC	FC/APC
M--OTX-EM-55-2x4-R-BB-AFC	2x4	8	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x5-R-BB-AFC	2x5	9	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x6-R-BB-AFC	2x6	10	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x7-R-BB-AFC	2x7	11	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x8-R-BB-AFC	2x8	12	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x9-R-BB-AFC	2x9	13	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x10-R-BB-AFC	2x10	14	2	Dual 220V AC	FC/APC
M--OTX-EM-55-2x4-R-CC-AFC	2x4	8	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x5-R-CC-AFC	2x5	9	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x6-R-CC-AFC	2x6	10	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x7-R-CC-AFC	2x7	11	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x8-R-CC-AFC	2x8	12	2	Dual 110V AC	FC/APC
M--OTX-EM-55-2x9-R-CC-AFC	2x9	13	2	Dual 110V AC	FC/APC

No Results

Port Configuration

Total output power (dBm)

Number of Output Ports

Power supply

Input / Output Ports

Clear

Part No.

For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

A cost-effective solution delivering balanced high-output power performance for your analog & digital CATV networks. With the use of Lithium Niobate Modulation (LINBO3) to modulate the 1500nm laser it eliminates the chirp effect associated with 1550nm laser internal modulation. For long reach applications transmitters can be paired with Montclair series of 1550nm optical amplifiers. Product Reliability & Assurance backed by over 20 years of engineering and manufacturing experience each amplifier is strictly qualified and adhered to rigorous standards to guarantee you a maintenance-free and optimal performance network. A two-year limited warranty is offered with each amplifier. Technical Support from our experienced staff is provided at every level to ensure each product configuration and characteristic is specific to your application.

Features

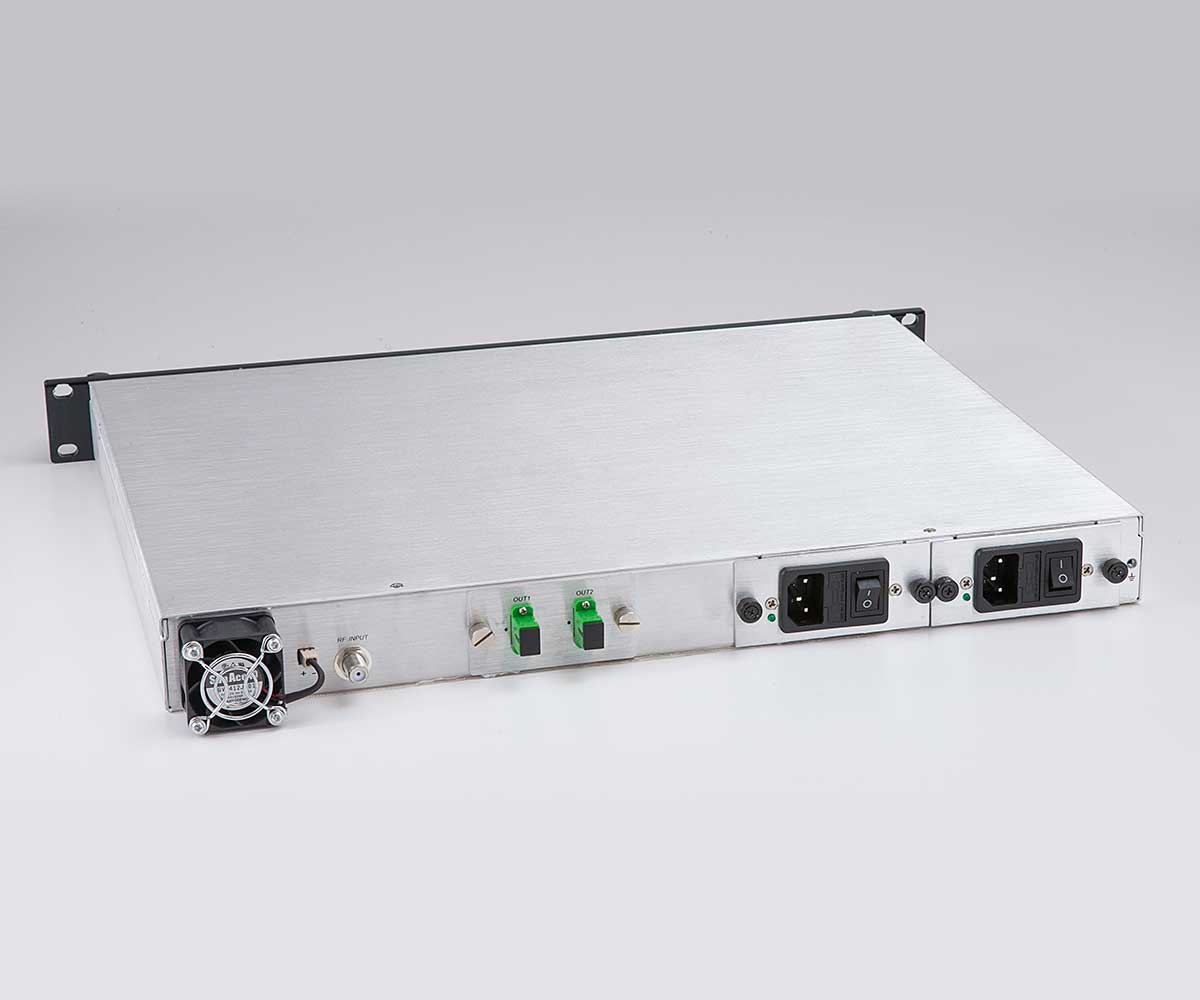

1RU 19” rack-mount chassis
Flexible monitoring interface for RJ45, RS232, and SNMP
High CSO, CTB, XMOD performance
High performance SOC with 12BitD/A with precise digital laser temperature and power control
High power balanced output (2 ports)
LCD front panel display
Low noise figure for excellent CNR
Pre-distortion AGC RF circuit digital adjustable gain (0.5dB precision)

Applications

Standards

NTSC
PAL

Product Documents

1550nm External-Modulated Optical Transmitter Product Datasheet

Product Specifications

Port Configuration 2x4, 2x5, 2x6, 2x7, 2x8, 2x9, 2x10

Total output power (dBm) 8, 9, 10, 11, 12, 13, 14

Laser type 1550nm DFB LD

Number of Output Ports 1, 2

Optical wavelength 1550nm±10nm or ITU grid

Power supply Dual -48V DC, Dual 220V AC, Dual 110V AC

Noise level ≤ -160dB/Hz

Input / Output Ports FC/APC, SC/APC

Optical output path 2 ports balanced output power

RF bandwidth 45 – 870MHz

RF input impedance 75Ω

RF interface type F type female

RF input return loss ≤ -16dB

RF input voltage 15 to 25dBmV/ch with AGC control;OMI/ch=3%±0.25%

RF test point 15±1dBmV/ch AGC mode @ 77 channels

RF flatness ±0.75dB

CNR > 54dB; > 52dB

CSO @ 60 CH.PAL-D ≤ -65dBc

Power 65W Max

Working temperature 0 ~ +50 °C

Storage temperature -20 ~ +60 °C

Humidity 85% Max

1RU rack-mount chassis dimensions (W x D x H) 483 x 385 x 44 mm (19 x 15 x 1.75 in)

Total output power(mW) 2 ~ 10
