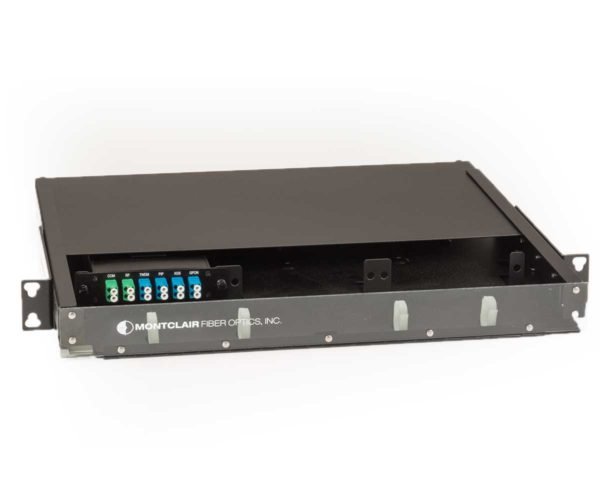

1U Rack-Mount LGX® Panel
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | No. Fiber Terminations | Adapter / Connector type | Splice Option | |
|---|---|---|---|---|
| MFE-RM-12/24-UL | For Unloaded Panel | For Unloaded Panel | For Unloaded Panel | |
| MFE-RM-12/24-ALCD-6-00-0/00 | 12 | LC/APC | NO | |
| MFE-RM-12/24-ALCD-12-00-0/00 | 24 | LC/APC | NO | |
| MFE-RM-12/24-ALCD-18-00-0/00 | 36 | LC/APC | NO | |
| MFE-RM-12/24-LCD-6-00-0/00 | 12 | LC/UPC | NO | |
| MFE-RM-12/24-LCD-12-00-0/00 | 24 | LC/UPC | NO | |
| MFE-RM-12/24-LCD-18-00-0/00 | 36 | LC/UPC | NO | |
| MFE-RM-12/24-ALCD-6-PL-1/12S | 12 | LC/APC | YES | |
| MFE-RM-12/24-ALCD-12-PL-2/12S | 24 | LC/APC | YES | |
| MFE-RM-12/24-ALCD-18-PL-3/12S | 36 | LC/APC | YES | |
| MFE-RM-12/24-LCD-6-PL-1/12S | 12 | LC/UPC | YES | |
| MFE-RM-12/24-LCD-12-PL-2/12S | 24 | LC/UPC | YES | |
| MFE-RM-12/24-LCD-18-PL-3/12S | 36 | LC/UPC | YES | |
| MFE-RM-12/24-ASCD-6-00-0/00 | 12 | SC/APC | NO | |
| MFE-RM-12/24-ASCD-12-00-0/00 | 24 | SC/APC | NO | |
| MFE-RM-12/24-ASCD-18-00-0/00 | 36 | SC/APC | NO | |
| MFE-RM-12/24-SCD-6-00-0/00 | 12 | SC/UPC | NO | |
| MFE-RM-12/24-SCD-12-00-0/00 | 24 | SC/UPC | NO | |
| MFE-RM-12/24-SCD-18-00-0/00 | 36 | SC/UPC | NO | |
| MFE-RM-12/24-ASCD-6-PL-1/12S | 12 | SC/APC | YES | |
| MFE-RM-12/24-ASCD-12-PL-2/12S | 24 | SC/APC | YES | |
| MFE-RM-12/24-ASCD-18-PL-3/12S | 36 | SC/APC | YES | |
| MFE-RM-12/24-SCD-6-PL-1/12S | 12 | SC/UPC | YES | |
| MFE-RM-12/24-SCD-12-PL-2/12S | 24 | SC/UPC | YES | |
| MFE-RM-12/24-SCD-18-PL-3/12S | 36 | SC/UPC | YES |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
Up to 36 fiber splices & terminations. 12/24 fiber rack-mount 1U splice & term panel.
Features
- 1U 1 rack-unit high
- Accepts up to (3) standard LGX-style adapter plates or cassettes
- Accommodates up to (3) 7″ splice trays
- Durable powder coat finish
- Front and rear access
- Mounts in 19” and 23” racks
- Optional 23″ mounting brackets
- Secure cable management from a sliding tray and removable cover
- Standard 19″ sliding mounting brackets for 5″ to flush mount projection
Product Specifications
No. Fiber Terminations
For Unloaded Panel, 12, 24, 36
Dimensions
1.75″ h x 17″ w x 15″ d
Adapter / Connector type
For Unloaded Panel, LC/APC, LC/UPC, SC/APC, SC/UPC
Weight
15lbs
Splice Option
For Unloaded Panel, NO, YES
Material
16 Gauge CRS
Housing type
LGX®
Powder Coat Finish
standard dove gray (beige), optional black
