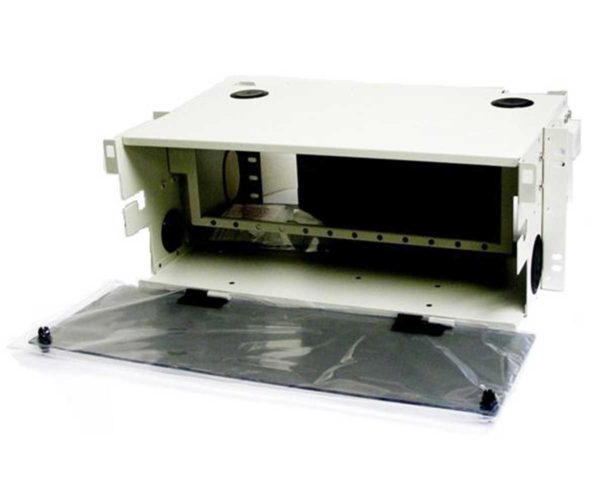

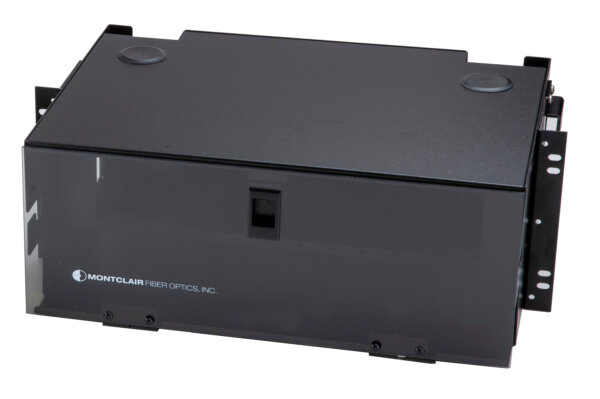

4U Rack-Mount LGX® Panel
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | No. Fiber Terminations | Adapter / Connector type | Splice Option | |
|---|---|---|---|---|
| MFE-RM-72/96-UL | For Unloaded Panel | For Unloaded Panel | For Unloaded Panel | |
| MFE-RM-72/96-ALCD-12-00-0/00 | 24 | LC/APC | NO | |
| MFE-RM-72/96-ALCD-24-00-0/00 | 48 | LC/APC | NO | |
| MFE-RM-72/96-ALCD-36-00-0/00 | 72 | LC/APC | NO | |
| MFE-RM-72/96-ALCD-48-00-0/00 | 96 | LC/APC | NO | |
| MFE-RM-72/96-ALCD-72-00-0/00 | 144 | LC/APC | NO | |
| MFE-RM-72/96-LCD-12-00-0/00 | 24 | LC/UPC | NO | |
| MFE-RM-72/96-LCD-24-00-0/00 | 48 | LC/UPC | NO | |
| MFE-RM-72/96-LCD-36-00-0/00 | 72 | LC/UPC | NO | |
| MFE-RM-72/96-LCD-48-00-0/00 | 96 | LC/UPC | NO | |
| MFE-RM-72/96-LCD-72-00-0/00 | 144 | LC/UPC | NO | |
| MFE-RM-72/96-ALCD-12-PL-1/12S | 24 | LC/APC | YES | |
| MFE-RM-72/96-ALCD-24-PL-4/12S | 48 | LC/APC | YES | |
| MFE-RM-72/96-ALCD-36-PL-3/24S | 72 | LC/APC | YES | |
| MFE-RM-72/96-ALCD-48-PL-4/24S | 96 | LC/APC | YES | |
| MFE-RM-72/96-LCD-12-PL-2/12S | 24 | LC/UPC | YES | |
| MFE-RM-72/96-LCD-24-PL-4/12S | 48 | LC/UPC | YES | |
| MFE-RM-72/96-LCD-36-PL-3/24S | 72 | LC/UPC | YES | |
| MFE-RM-72/96-LCD-48-PL-4/24S | 96 | LC/UPC | YES | |
| MFE-RM-72/96-ASCD-12-00-0/00 | 24 | SC/APC | NO | |
| MFE-RM-72/96-ASCD-24-00-0/00 | 48 | SC/APC | NO | |
| MFE-RM-72/96-ASCD-36-00-0/00 | 72 | SC/APC | NO | |
| MFE-RM-72/96-ASCD-48-00-0/00 | 96 | SC/APC | NO | |
| MFE-RM-72/96-ASCD-72-00-0/00 | 144 | SC/APC | NO | |
| MFE-RM-72/96-SCD-12-00-0/00 | 24 | SC/UPC | NO | |
| MFE-RM-72/96-SCD-24-00-0/00 | 48 | SC/UPC | NO | |
| MFE-RM-72/96-SCD-36-00-0/00 | 72 | SC/UPC | NO | |
| MFE-RM-72/96-SCD-48-00-0/00 | 96 | SC/UPC | NO | |
| MFE-RM-72/96-ASCD-12-PL-1/12S | 24 | SC/APC | YES | |
| MFE-RM-72/96-ASCD-24-PL-4/12S | 48 | SC/APC | YES | |
| MFE-RM-72/96-ASCD-36-PL-3/24S | 72 | SC/APC | YES | |
| MFE-RM-72/96-ASCD-48-PL-4/24S | 96 | SC/APC | YES | |
| MFE-RM-72/96-SCD-12-PL-2/12S | 24 | SC/UPC | YES | |
| MFE-RM-72/96-SCD-24-PL-4/12S | 48 | SC/UPC | YES | |
| MFE-RM-72/96-SCD-36-PL-3/24S | 72 | SC/UPC | YES | |
| MFE-RM-72/96-SCD-48-PL-4/24S | 96 | SC/UPC | YES |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
Up to 96 fiber splices & terminations; 144 terminations only. 72/96 fiber rack-mount 4U splice & term panel.
Features
- 4U 4 rack-unit high
- Accepts cables from front, rear, top or bottom
- Accepts up to (12) standard LGX-style adapter plates or cassettes
- Accommodates up to (4) 10″ splice trays
- Cable storage plates included
- Durable powder coat finish
- Mounts in 19” and 23” racks with reversible brackets
- Removable front hinged door and back cover
- Stackable
- Standard 5” rack projection or optional flush mount
Product Specifications
No. Fiber Terminations
For Unloaded Panel, 24, 48, 72, 96, 144
Dimensions
7.00” h X 17” w X 12” d
Adapter / Connector type
For Unloaded Panel, LC/APC, LC/UPC, SC/APC, SC/UPC
Weight
16lbs
Splice Option
For Unloaded Panel, NO, YES
Material
16 Gauge CRS
Housing type
LGX®
Powder Coat Finish
standard dove gray (beige), black
