Adapter plates
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Fiber Mode | Adapter / Connector type | No. Of Adapter Ports | |
|---|---|---|---|---|
| MFE-ADP-P6/LCD/MM | Multimode OM1/62.5 | LC | 12 | |
| MFE-ADP-P6/AFC/SM | Singlemode | FC/APC | 6 | |
| MFE-ADP-P6/FC/SM | Singlemode | FC | 6 | |
| MFE-ADP-P6/FC/UL | Unloaded | Unloaded | 6 | |
| MFE-ADP-P8/AFC/SM | Singlemode | FC/APC | 8 | |
| MFE-ADP-P8/FC/SM | Singlemode | FC | 8 | |
| MFE-ADP-P8/FC/UL | Unloaded | Unloaded | 8 | |
| MFE-ADP-P3/ALCD/SM | Singlemode | LC/APC | 6 | |
| MFE-ADP-P3/LCD/SM | Singlemode | LC | 6 | |
| MFE-ADP-P3/LCD/MM | Multimode OM1/62.5 | LC | 6 | |
| MFE-ADP-P3/LCD/MM(OM3/4) | Multimode OM3/4 | LC | 6 | |
| MFE-ADP-P3/LCD/UL | Unloaded | Unloaded | 6 | |
| MFE-ADP-P6/ALCD/SM | Singlemode | LC/APC | 12 | |
| MFE-ADP-P6/LCD/SM | Singlemode | LC | 12 | |
| MFE-ADP-P6/LCD/MM(OM3/4) | Multimode OM3/4 | LC | 12 | |
| MFE-ADP-P6/LCD/UL | Unloaded | Unloaded | 12 | |
| MFE-ADP-P6/ASC/SM | Singlemode | SC/APC | 6 | |
| MFE-ADP-P6/SC/SM | Singlemode | SC | 6 | |
| MFE-ADP-P6/SC/MM | Multimode OM1/62.5 | SC | 6 | |
| MFE-ADP-P6/SC/MM(OM3/4) | Multimode OM3/4 | SC | 6 | |
| MFE-ADP-P6/SC/UL | Unloaded | Unloaded | 6 | |
| MFE-ADP-P8/ASC/SM | Singlemode | SC/APC | 8 | |
| MFE-ADP-P8/SC/SM | Singlemode | SC | 8 | |
| MFE-ADP-P8/SC/MM | Multimode OM1/62.5 | SC | 8 | |
| MFE-ADP-P8/SC/MM(OM3/4) | Multimode OM3/4 | SC | 8 | |
| MFE-ADP-P8/SC/UL | Unloaded | Unloaded | 8 | |
| MFE-ADP-P6/ASCD/SM | Singlemode | SC/APC | 12 | |
| MFE-ADP-P6/SCD/SM | Singlemode | SC | 12 | |
| MFE-ADP-P6/SCD/MM | Multimode OM1/62.5 | SC | 12 | |
| MFE-ADP-P6/SCD/MM(OM3/4) | Multimode OM3/4 | SC | 12 | |
| MFE-ADP-P6/SCD/UL | Unloaded | Unloaded | 12 | |
| MFE-ADP-P6/ST/SM | Singlemode | ST | 6 | |
| MFE-ADP-P6/ST/MM | Multimode OM1/62.5 | ST | 6 | |
| MFE-ADP-P6/ST/UL | Unloaded | Unloaded | 6 | |
| MFE-ADP-P8/ST/SM | Singlemode | ST | 8 | |
| MFE-ADP-P8/ST/MM | Multimode OM1/62.5 | ST | 8 | |
| MFE-ADP-P8/ST/UL | Unloaded | Unloaded | 8 |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
We offer a wide range of LGX® compatible adapter plates for installation in rack and wall-mount fiber termination and splice panels, as well as our LGX 1RU and 2RU brackets.

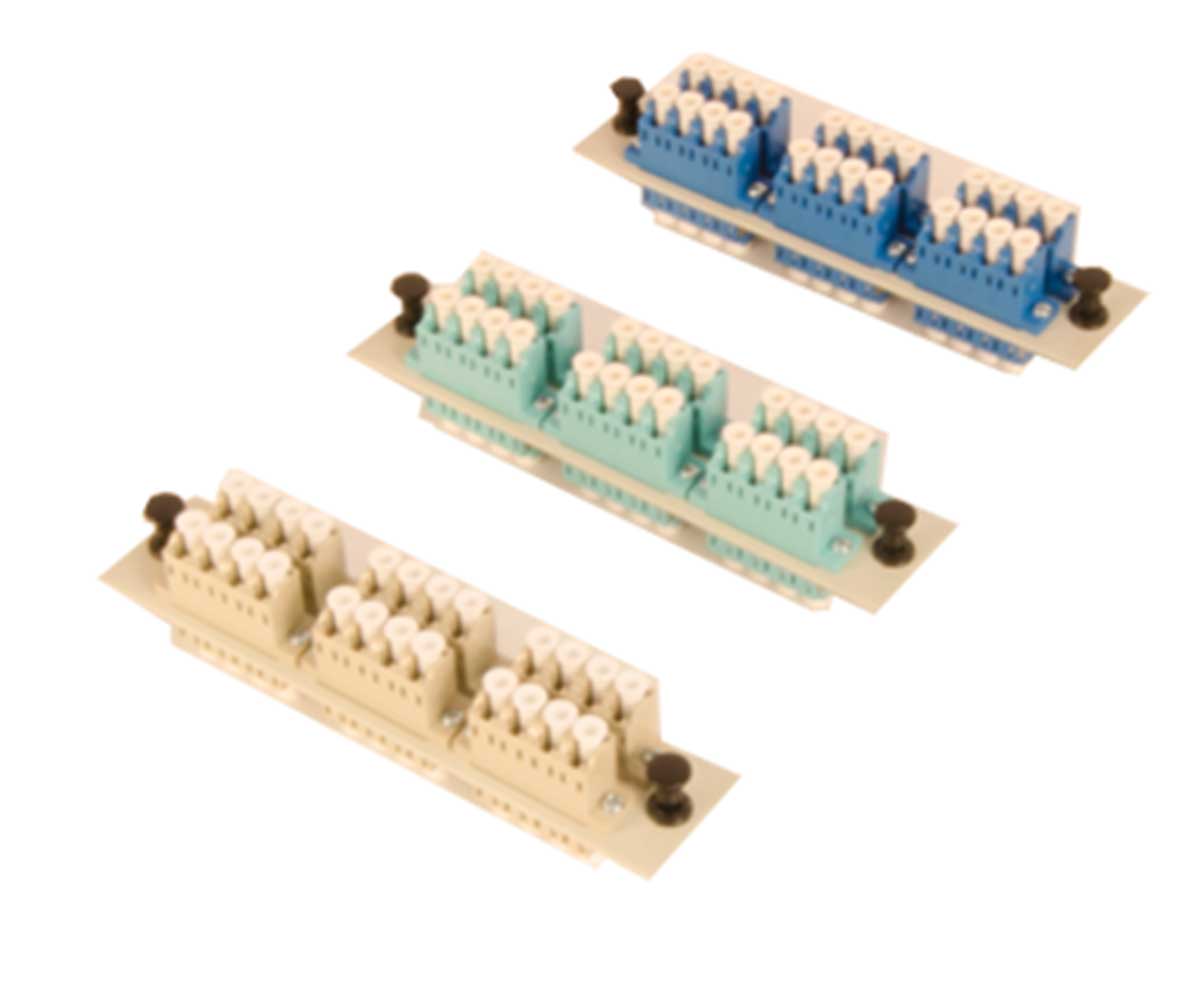

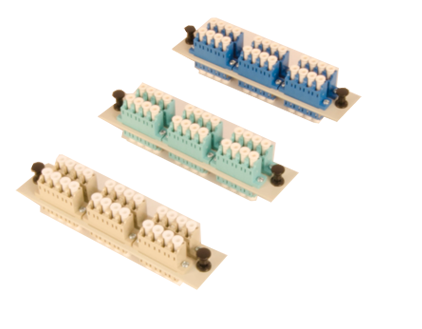

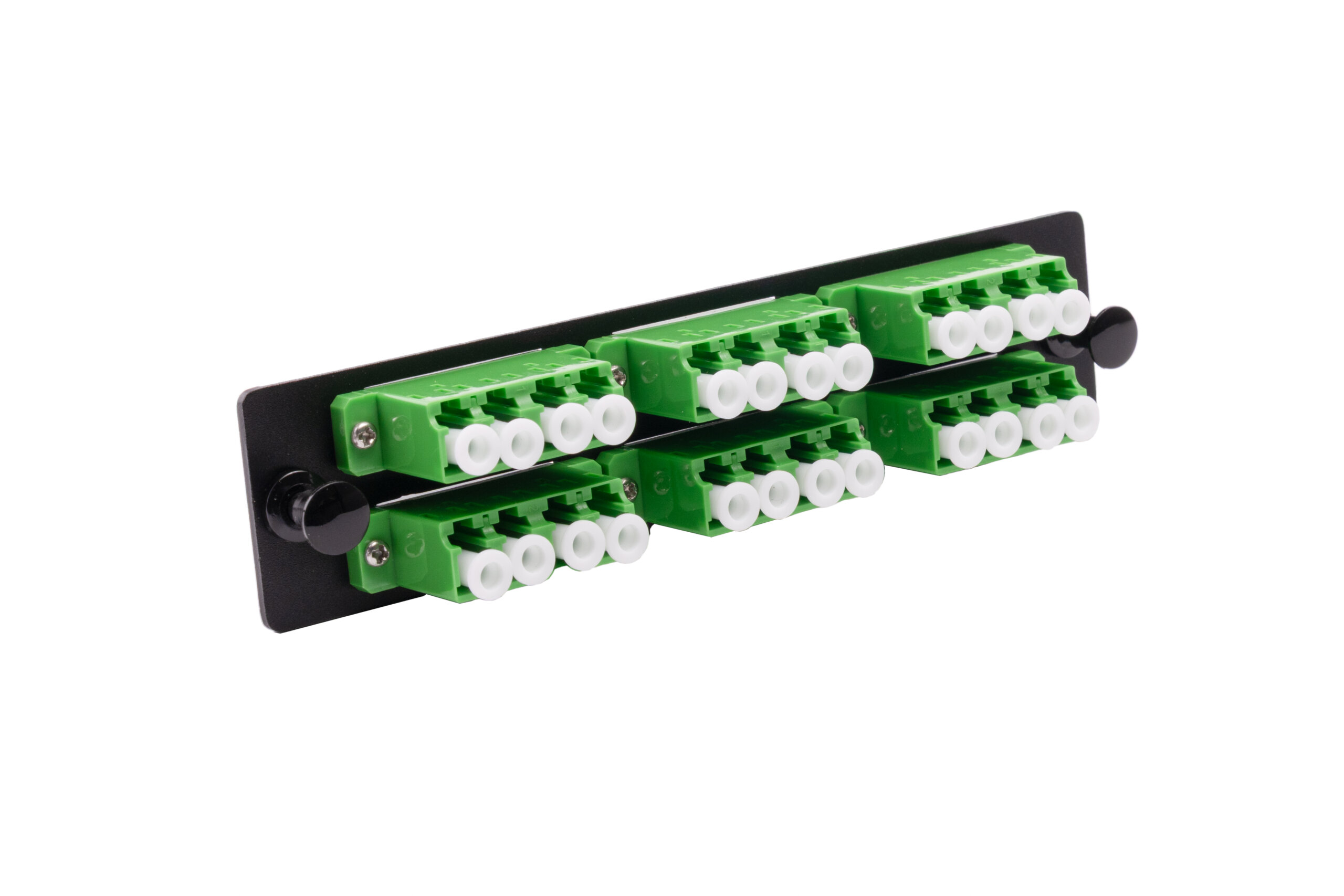

The adapter plates are available in configurations of 6, 8, 12, and 24 ports and come in various color-coded options for multimode and singlemode simplex and duplex FC, LC, SC, and ST adapters.
Features
- Black or Beige color option
- Durable powder coat finish
- LGX compatible
- Wide range of configurations
Product Documents
Product Specifications
Fiber Mode
Singlemode, Multimode OM1/62.5, Multimode OM3/4, Unloaded
FC
FC/APC 6 Port SM metal-chrome, FC 6 Port SM metal-chrome, FC 6 Port unloaded, FC/APC 8 Port SM metal-chrome, FC 8 Port SM metal-chrome, FC 8 Port unloaded
Adapter / Connector type
FC/APC, FC, Unloaded, LC/APC, LC, SC/APC, SC, ST
LC

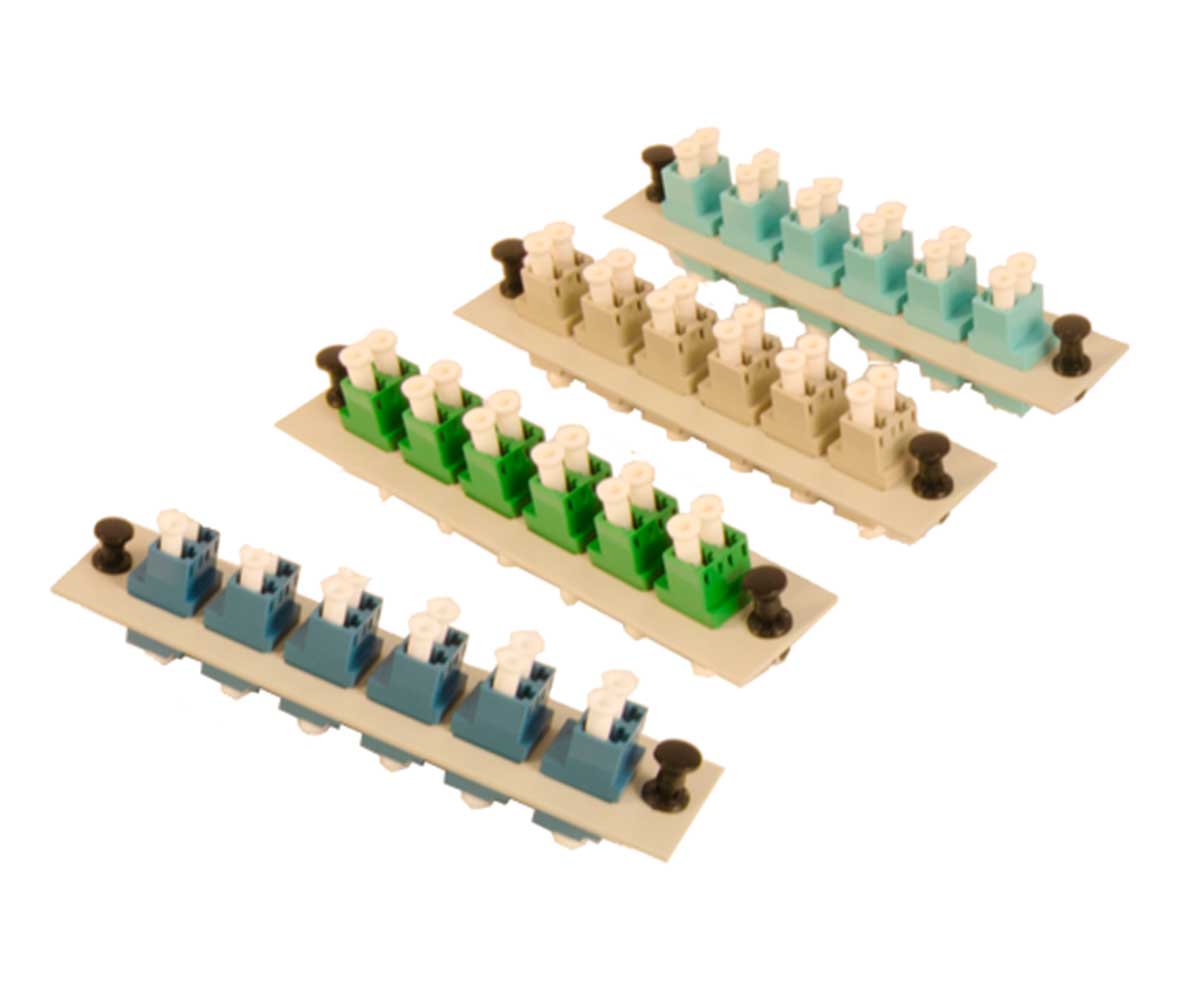

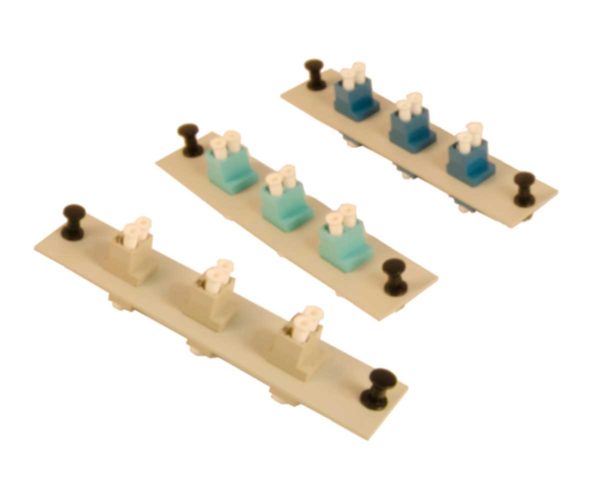

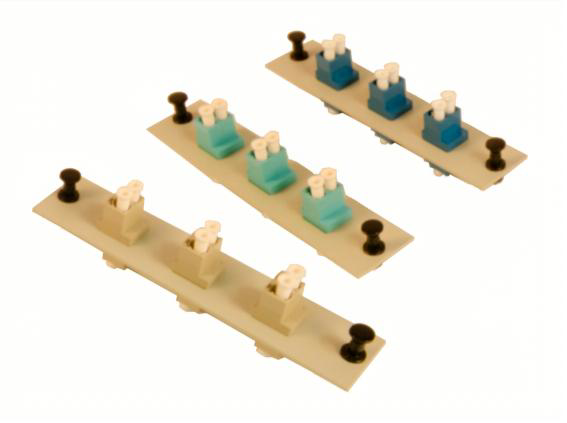

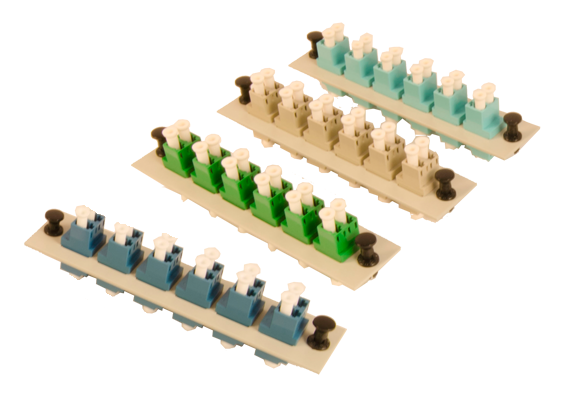

LC/APC 6 Port (3 duplex) SM green, LC 6 Port (3 duplex) SM blue, LC 6 Port (3 duplex) MM beige, LC 6 Port (3 duplex) MM aqua, LC 6 Port unloaded (3 duplex), LC/APC 12 Port (6 duplex) SM green, LC 12 Port (6 duplex) SM blue, LC 12 Port (6 duplex) MM beige, LC 12 Port (6 duplex) MM aqua, LC 12 Port unloaded (6 duplex)
No. Of Adapter Ports
6, 8, 12
SC

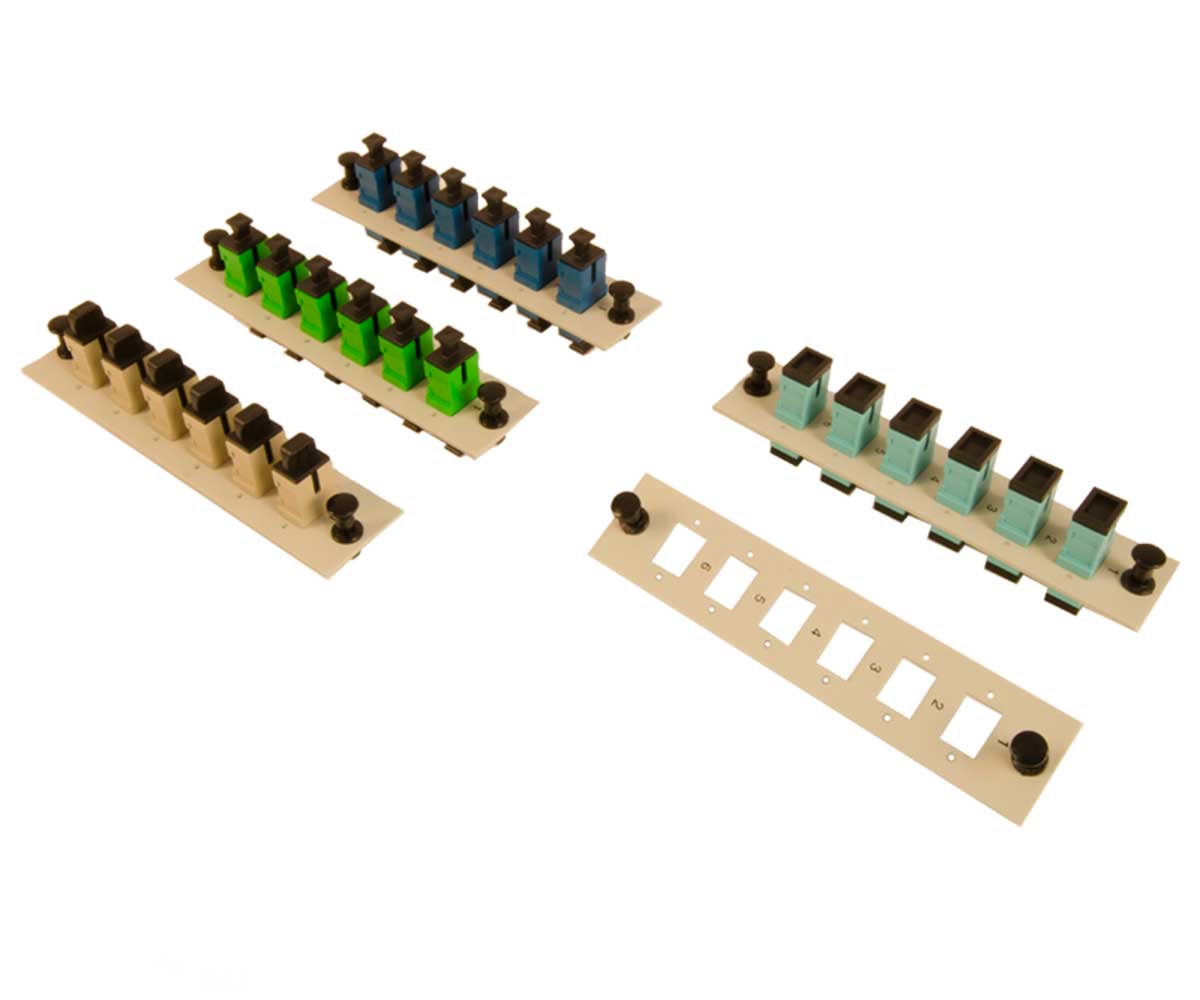

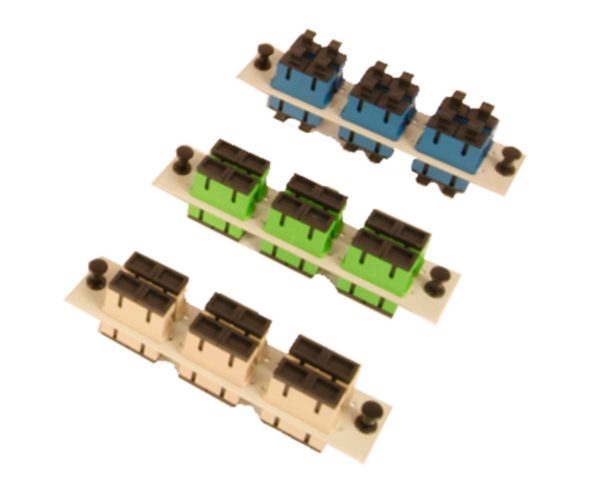

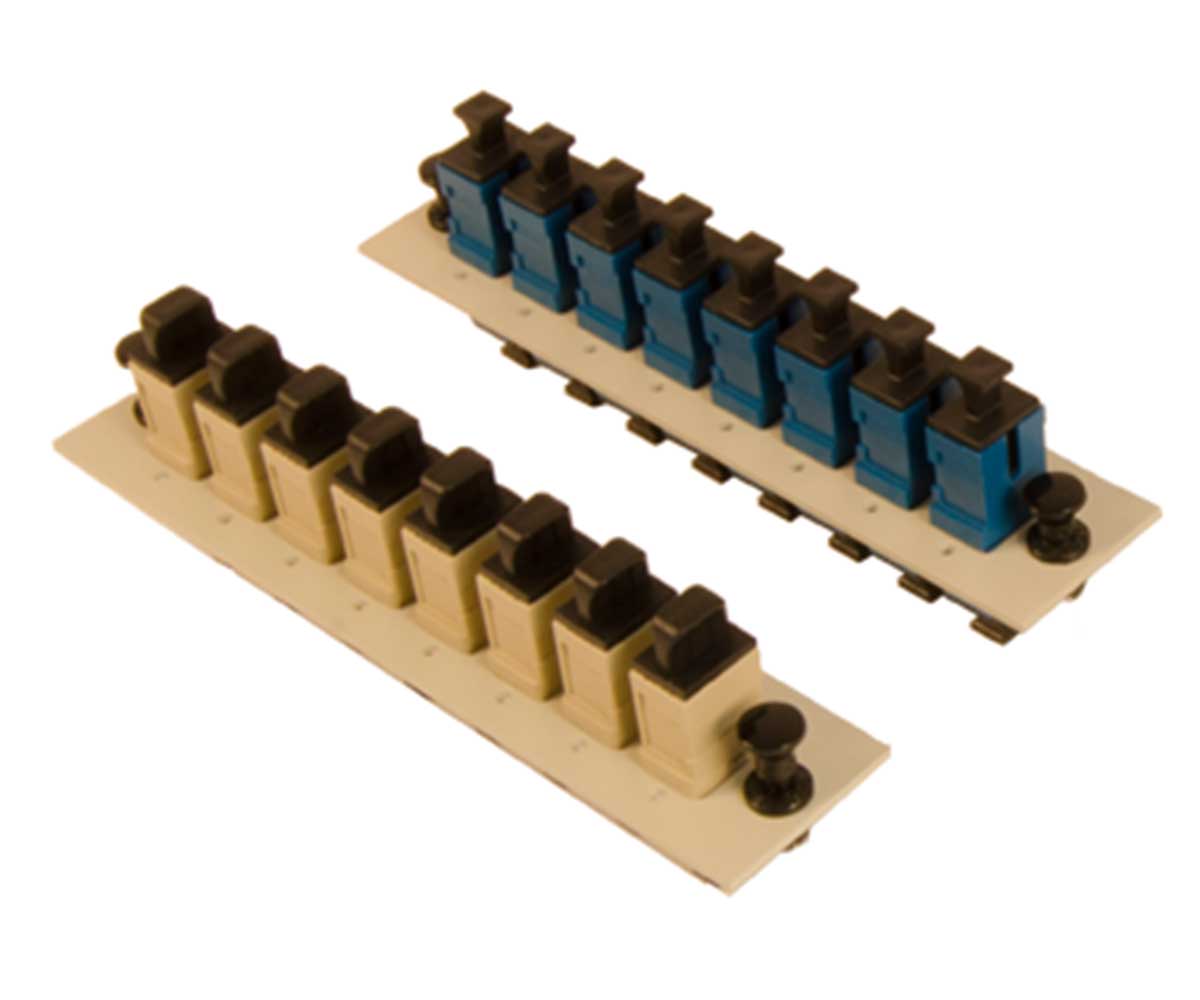

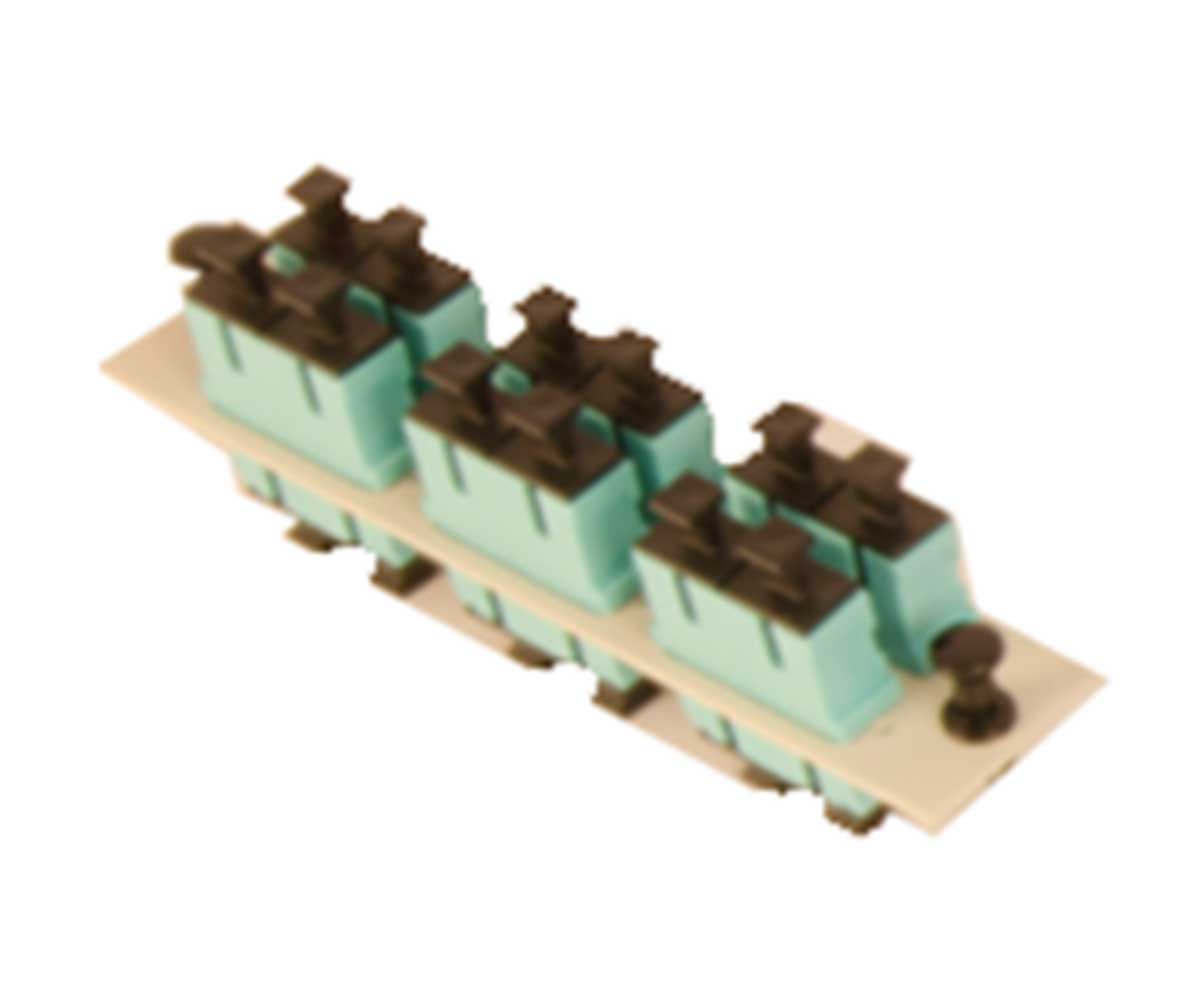

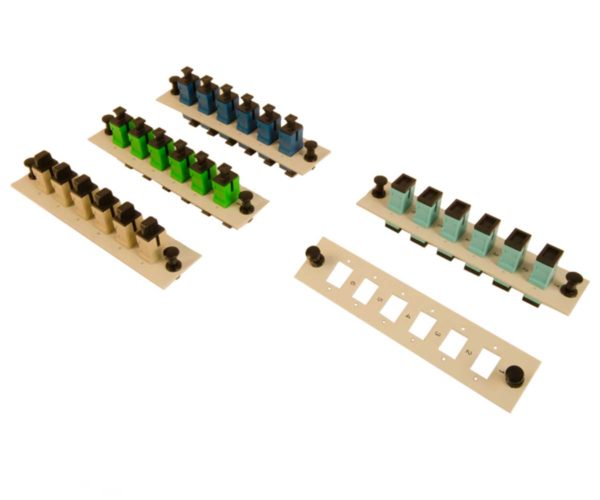

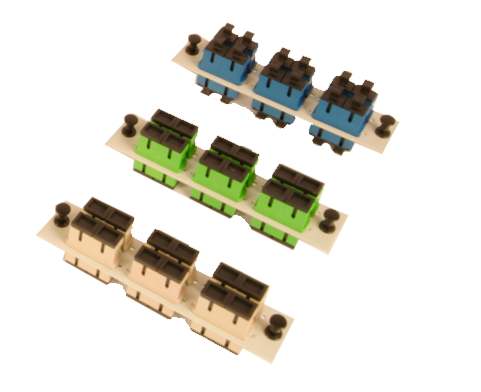

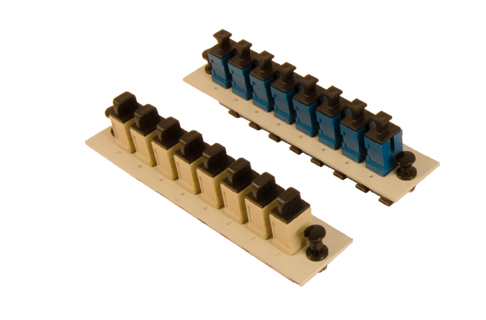

SC/APC 6 Port simplex SM green, SC 6 Port simplex SM blue, SC 6 Port simplex MM beige, SC 6 Port simplex MM aqua, SC/APC 8 Port SM green, SC 8 Port simplex SM blue, SC 8 Port simplex MM beige, SC 8 Port simplex MM aqua, SC/APC 12 Port (6 duplex) SM green, SC 12 Port (6 duplex) SM blue, SC 12 Port (6 duplex) MM beige, SC 12 Port (6 duplex) MM aqua
ST

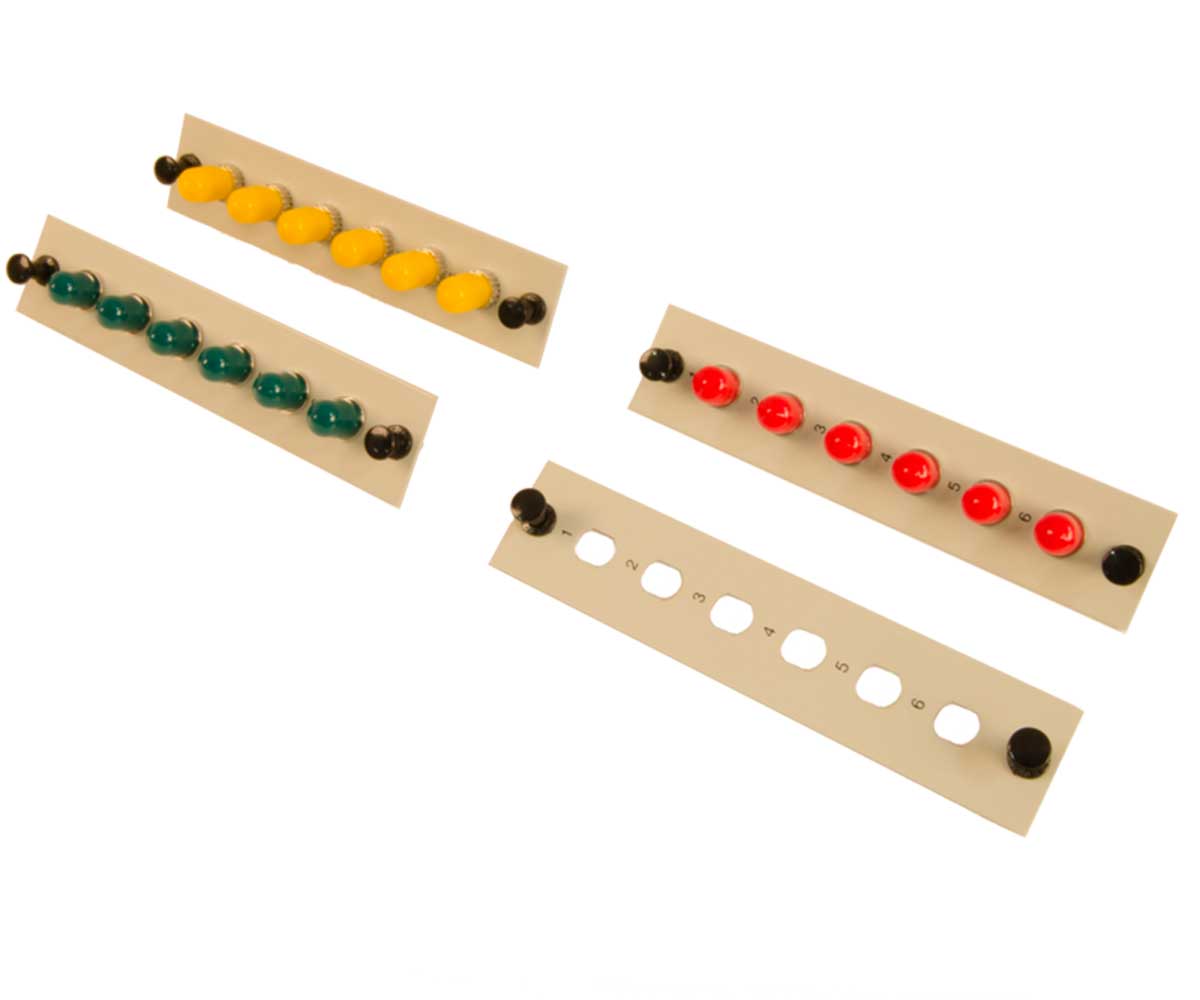

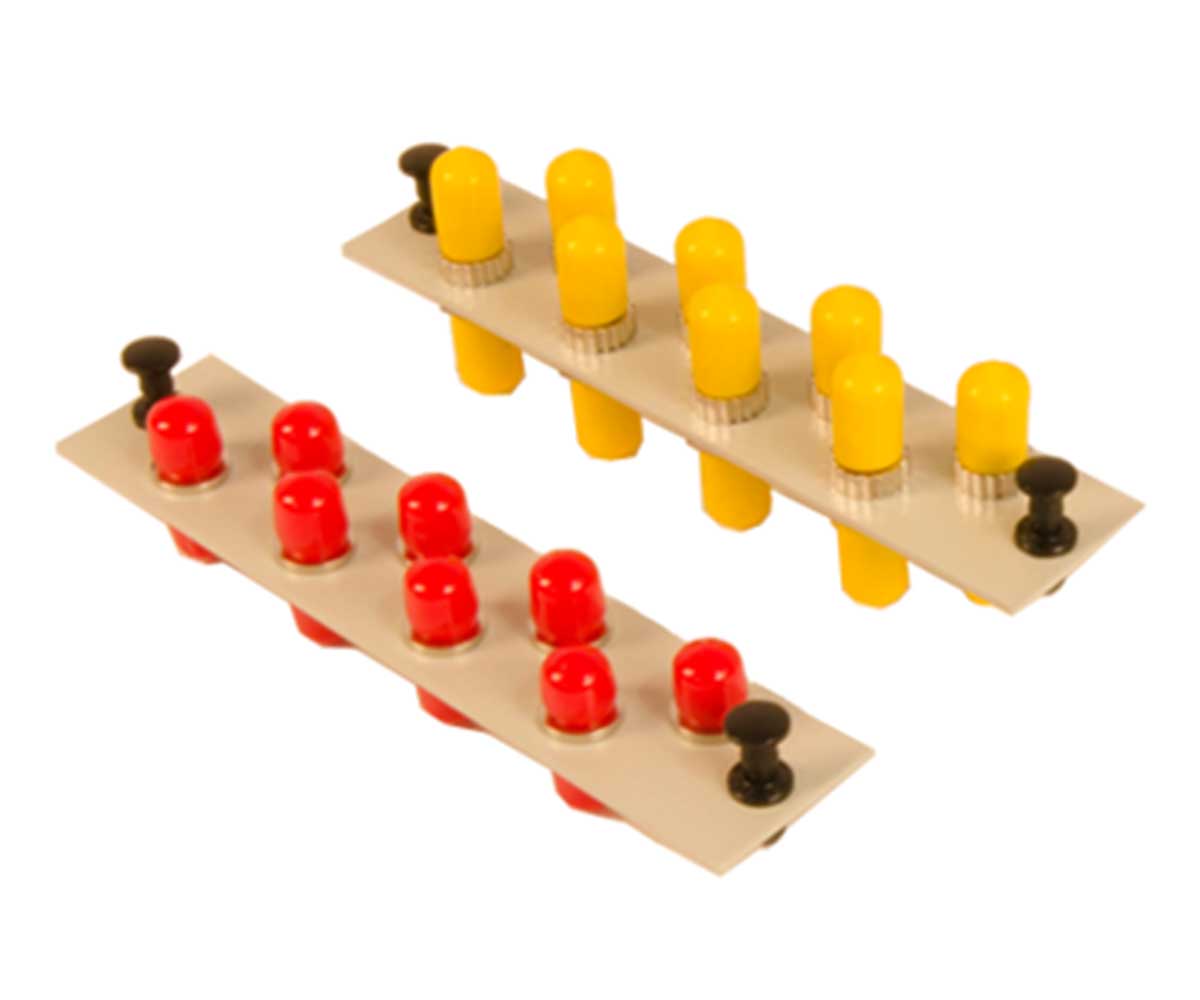

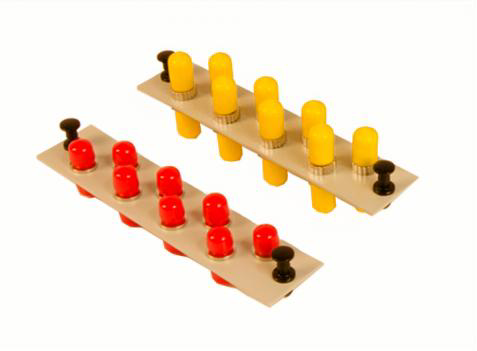

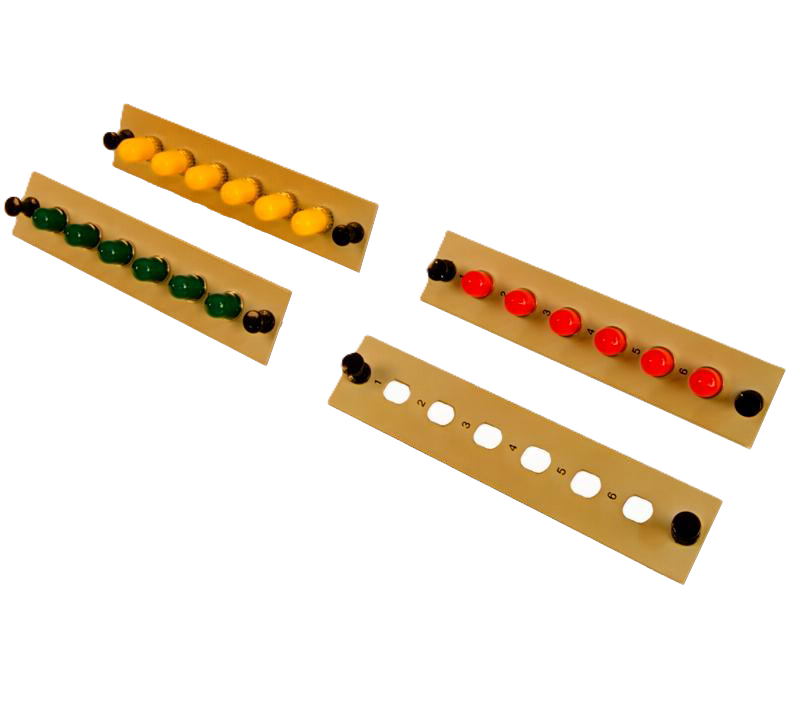

ST 6 Port SM metal-chrome, ST 6 Port MM metal-chrome, ST 6 Port unloaded, ST 8 Port SM metal-chrome, ST 8 Port MM metal-chrome, ST 8 Port unloaded
