Coexistence Element (CEx)

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

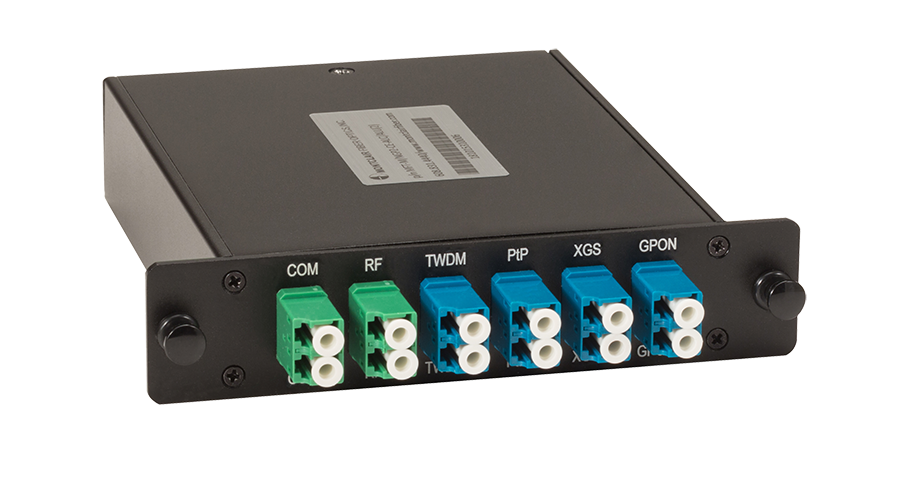

A single WDM device used to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies. Additional provisioning wavelengths with the Coexistence Element include RF, Point to Point (PtP), and OTDR monitoring. Premium optical components and high-quality connectivity ensure superior performance, the lowest loss, and robust network reliability. Please Note: CEx are available in LGX® module, ruggedized cassette, rack-mount, and customized housings. OTDR Monitor option is available; 1% Monitor port adds approx. 0.75 dB to the IL for each port.

Features

  • Excellent environmental & mechanical stability
  • High isolation
  • Low insertion loss & PDL
  • Premium grade components & connectivity

Applications

Standards

Product Specifications

Adapter options LC/APC, LC/UPC, SC/APC, SC/UPC
Adapter Type LC/APC & LC/UPC, SC/APC & SC/UPC

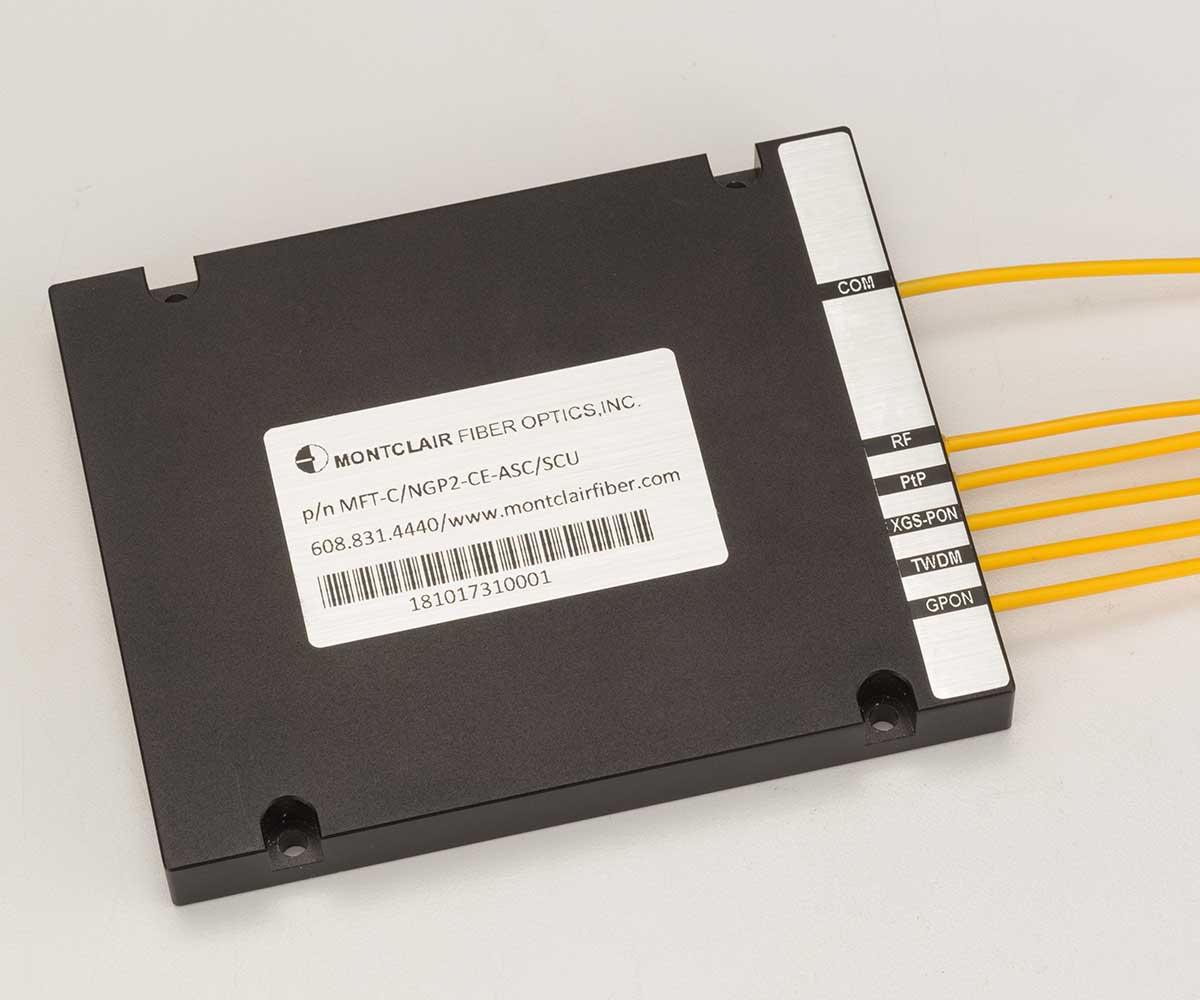

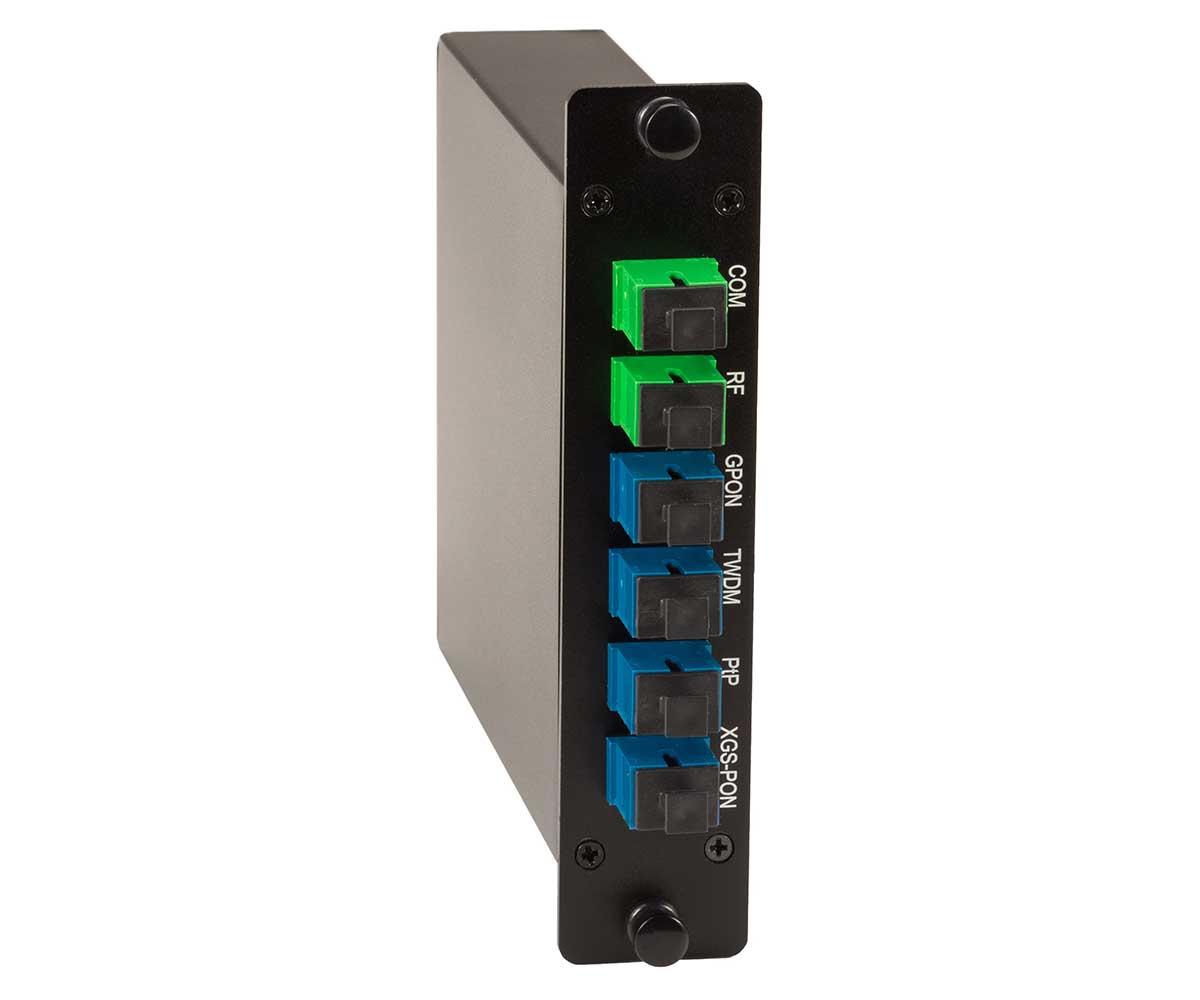

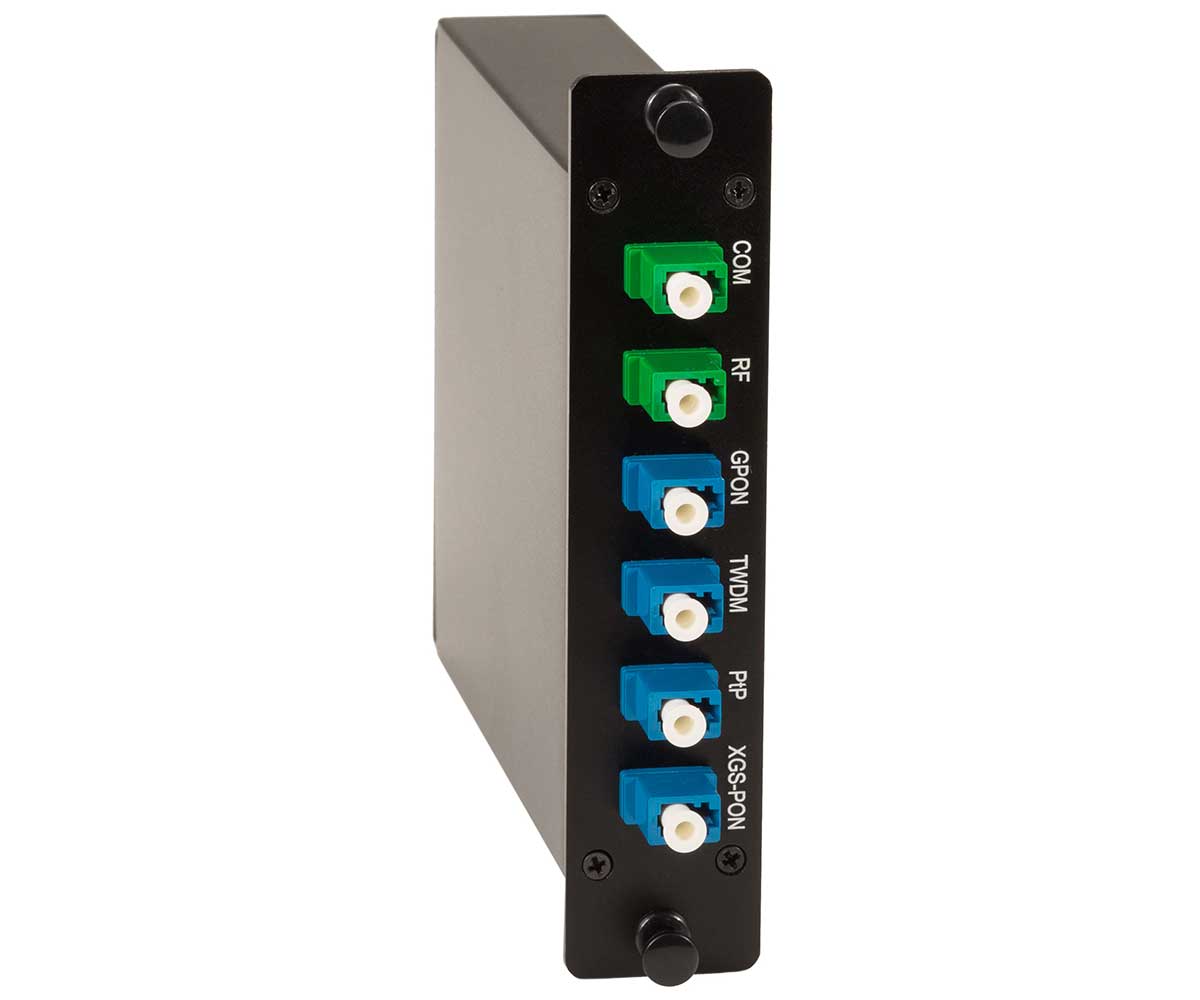

CEx type 2x CEx High-Density LGX LC/APC & LC/UPC adapter ports, 2x CEx High-Density LGX LC/APC & LC/UPC adapter ports (Monitor port), 1x CEx LGX LC/APC & LC/UPC adapter ports, 1x CEx LGX LC/APC & LC/UPC adapter ports (Monitor port), 1x CEx LGX SC/APC & SC/UPC adapter ports, 1x CEx LGX SC/APC & SC/UPC adapter ports (Monitor port), 1x CEx Ruggedized Cassette LC/APC & LC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 1x CEx Ruggedized Cassette LC/APC & LC/UPC 1 meter 2.0mm outdoor-rated fiber cable (Monitor port), 1x CEx Ruggedized Cassette SC/APC & SC/UPC 1 meter 2.0mm outdoor-rated fiber cable, 1x CEx Ruggedized Cassette SC/APC & SC/UPC 1 meter 2.0mm outdoor-rated fiber cable (Monitor port)
GPON Passband Channel Wavelength (nm) 1290 - 1330, 1480 - 1500
NG-PON2 (TWDM) Passband Channel Wavelength (nm) 1532 - 1540, 1595 - 1603
XGS-PON Passband Channel Wavelength (nm) 1260 - 1280, 1575 - 1580
RF Passband Channel Wavelength (nm) 1550 - 1560
PtP Passband Channel Wavelength (nm) 1610 - 1625
OTDR Monitor Passband Channel Wavelength (nm) 1625 - 1675
GPON Insertion Loss (dB max.) 1.0
NG-PON2 (TWDM) Insertion Loss (dB max.) 1.0
XGS-PON Insertion Loss (dB max.) 1.0
RF Insertion Loss (dB max.) 1.2
PtP Insertion Loss (dB max.) 1.6
GPON Isolation (dB min.) 45
NG-PON2 (TWDM) Isolation (dB min.) 30
XGS-PON Isolation (dB min.) 30
RF Isolation (dB min.) 12
PtP Isolation (dB min.) 30
Return loss (dB min.) - includes connectors 50
Insertion loss temperature sensitivity (dB/°C min.) 0.005
Directivity (dB min.) 50
Polarization dependent loss (dB max.) 0.30
Polarization mode dispersion (ps max.) 0.20
Passband Ripple (dB max.) 0.30
Maximum optical power (mW max.) 300
Operating temperature (°C) -5 to +75
Storage temperature (°C) -40 to +85
LGX® single slot wide module (mm) 129 x 125 x 28
Connector/Adapter type for GPON, NG-PON2, XGS-PON, PtP, OTDR ports LC/UPC, SC/UPC
Connector/Adapter type for RF and Common ports LC/APC, SC/APC
