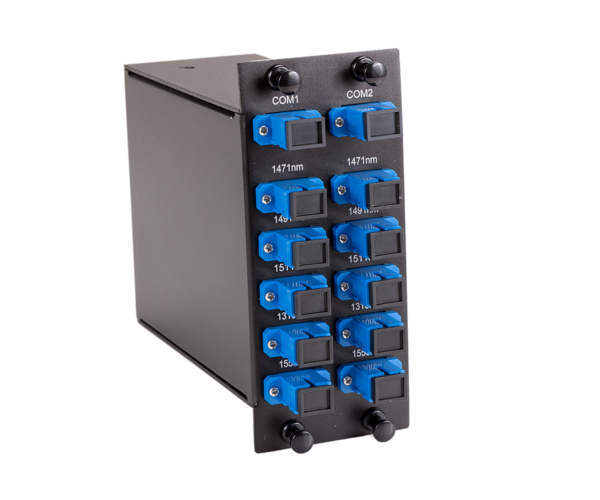

CWDM Mux Demux Dual Fiber
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Adapter / Connector type | Number of Channels | Starting wavelength (nm) | Upgrade/Express port | |
|---|---|---|---|---|---|
| MW-C20-4-47-MD-M-ALC | LC/APC | 4 | 1470 | No | |
| MW-C20-4-47-MD-M-LCU | LC/UPC | 4 | 1470 | No | |
| MW-C20-4-47-MD-M-ASC | SC/APC | 4 | 1470 | No | |
| MW-C20-4-47-MD-M-SCU | SC/UPC | 4 | 1470 | No | |
| MW-C20-8-47-MD-M-ALC | LC/APC | 8 | 1470 | No | |
| MW-C20-8-47-MD-M-LCU | LC/UPC | 8 | 1470 | No | |
| MW-C20-8-47-MD-M-ASC | SC/APC | 8 | 1470 | No | |
| MW-C20-8-47-MD-M-SCU | SC/UPC | 8 | 1470 | No | |
| MW-C20-16-31-MD-M-ALC | LC/APC | 16 | 1310 | No | |
| MW-C20-16-31-MD-M-LCU | LC/UPC | 16 | 1310 | No | |
| MW-C20-16-31-MD-M-ASC | SC/APC | 16 | 1310 | No | |
| MW-C20-16-31-MD-M-SCU | SC/UPC | 16 | 1310 | No | |
| MW-C20-4-47-MD-M-ALC-U | LC/APC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD-M-LCU-U | LC/UPC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD-M-ASC-U | SC/APC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD-M-SCU-U | SC/UPC | 4 | 1470 | Yes | |
| MW-C20-8-47-MD-M-ALC-U | LC/APC | 8 | 1470 | Yes | |
| MW-C20-8-47-MD-M-LCU-U | LC/UPC | 8 | 1470 | Yes | |
| MW-C20-8-47-MD-M-ASC-U | SC/APC | 8 | 1470 | Yes | |
| MW-C20-8-47-MD-M-SCU-U | SC/UPC | 8 | 1470 | Yes | |
| MW-C20-16-31-MD-M-ALC-U | LC/APC | 16 | 1310 | Yes | |
| MW-C20-16-31-MD-M-LCU-U | LC/UPC | 16 | 1310 | Yes | |
| MW-C20-16-31-MD-M-ASC-U | SC/APC | 16 | 1310 | Yes | |
| MW-C20-16-31-MD-M-SCU-U | SC/UPC | 16 | 1310 | Yes |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details

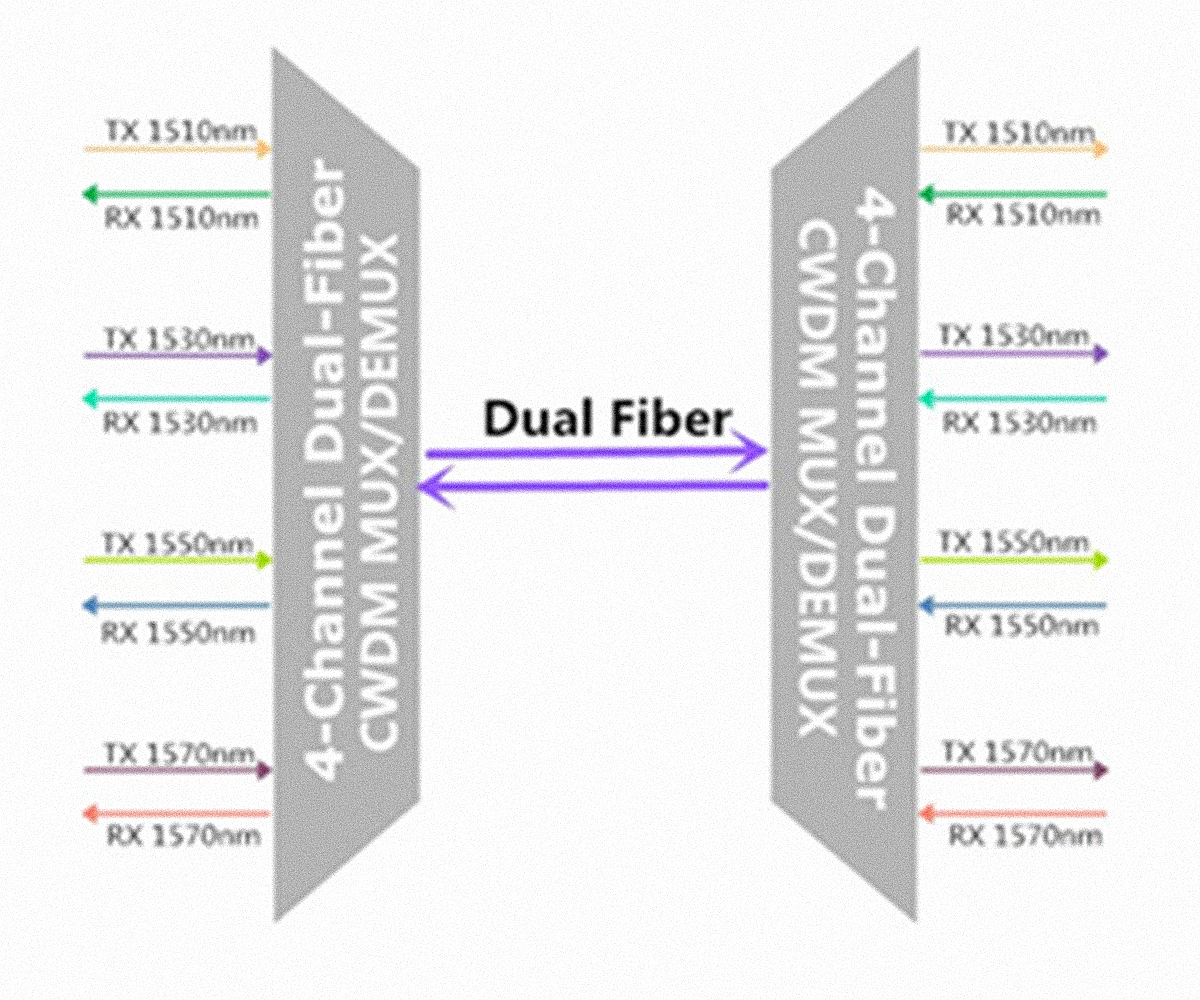

The CWDM Mux demux dual fiber bidirectional solution supports up to 18 coarse wavelength channels (1270 – 1610nm) for full transmitting and receiving of CWDM signals over duplex singlemode fiber. In this configuration, all 18 CWDM channels are utilized in both directions of the network. This offers a low-cost method for utilizing the bandwidth capacity on existing fiber. Montclair passive CWDMs are available with an optional upgrade port to allow for incremental future channel add-ons.
CWDM Mux Demux can be ordered in many options:
- 2 to 18 Channels (the most common are 4, 8, and 16 Channels)
- Wideband port 1310±50 & 1550±40nm
- Upgrade / Express port
- Monitor port
- LGX Module, Rack-mount, Cassette
- LC/APC, LC/UPC, SC/APC, SC/UPC
Features
- Excellent environmental & mechanical stability
- High channel isolation
- Premium grade components & connectivity
- Wide pass band
Standards
Product Documents
Product Specifications
Adapter / Connector type
LC/APC, LC/UPC, SC/APC, SC/UPC
Number of Channels
4, 8, 16
Starting wavelength (nm)
1470, 1310
Upgrade/Express port
No, Yes
