CWDM Mux Demux Single Fiber
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Adapter / Connector type | Number of Channels | Starting wavelength (nm) | Upgrade/Express port | |
|---|---|---|---|---|---|
| MW-C20-4-47-MD1-M-ALC | LC/APC | 4 | 1470 | No | |
| MW-C20-4-47-MD1-M-LCU | LC/UPC | 4 | 1470 | No | |
| MW-C20-4-47-MD1-M-ASC | SC/APC | 4 | 1470 | No | |
| MW-C20-4-47-MD1-M-SCU | SC/UPC | 4 | 1470 | No | |
| MW-C20-8-31-MD1-M-ALC | LC/APC | 8 | 1310 | No | |
| MW-C20-8-47-MD1-M-LCU | LC/UPC | 8 | 1310 | No | |
| MW-C20-8-47-MD1-M-ASC | SC/APC | 8 | 1310 | No | |
| MW-C20-8-47-MD1-M-SCU | SC/UPC | 8 | 1310 | No | |
| MW-C20-4-47-MD1-M-ALC-U | LC/APC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD1-M-LCU-U | LC/UPC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD1-M-ASC-U | SC/APC | 4 | 1470 | Yes | |
| MW-C20-4-47-MD1-M-SCU-U | SC/UPC | 4 | 1470 | Yes | |
| MW-C20-8-31-MD1-M-ALC-U | LC/APC | 8 | 1310 | Yes | |
| MW-C20-8-47-MD1-M-LCU-U | LC/UPC | 8 | 1310 | Yes | |
| MW-C20-8-47-MD1-M-ASC-U | SC/APC | 8 | 1310 | Yes | |
| MW-C20-8-47-MD1-M-SCU-U | SC/UPC | 8 | 1310 | Yes |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details

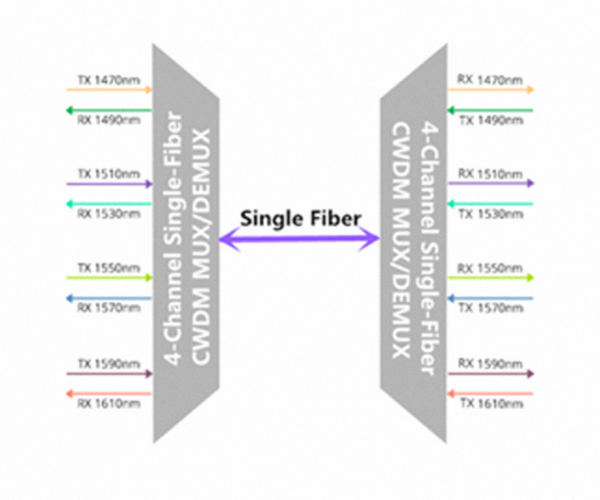

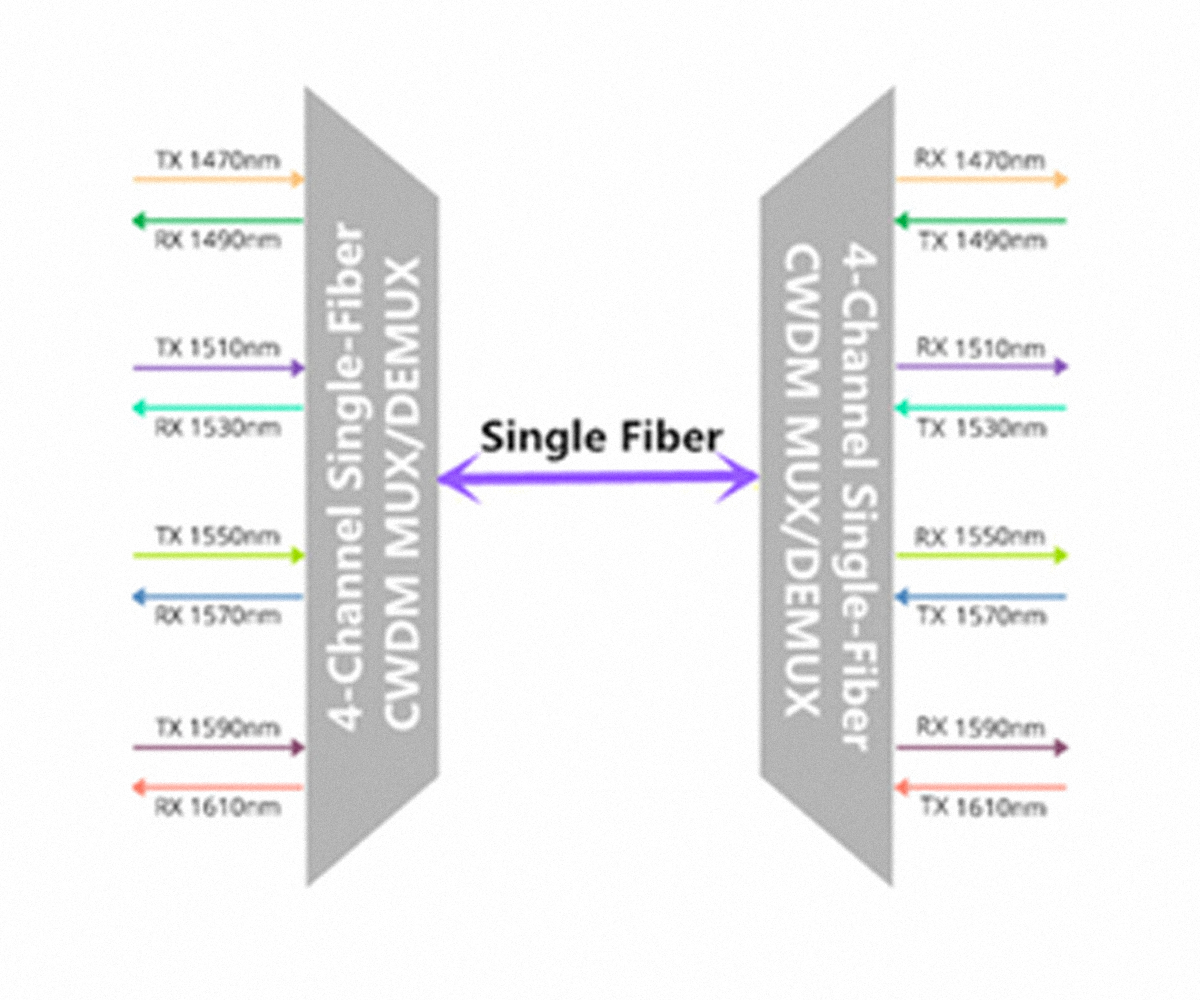

The CWDM Mux Demux single fiber bidirectional solution supports CWDM channels in both directions over a single simplex singlemode fiber. The principle difference between single fiber and dual fiber CWDM is the single fiber requires different wavelengths transmitted in either direction: A 4 channel CWDM single fiber system, for example, would require 8 different wavelength channels – The East (Mux/Tx) to West (Demux/Rx) direction would utilize 1470/1510/1550/1590 wavelengths; The West (Mux/Tx) to East (Demux/Rx) direction would utilize 1490/1530/1570/1610 wavelengths.
CWDM Mux Demux can be ordered in many options:
- 2 to 9 Channels
- Wideband port 1310±50 & 1550±40nm
- Upgrade / Express port
- Monitor port
- LGX Module, Rack-mount, Cassette
- LC/APC, LC/UPC, SC/APC, SC/UPC
Features
- Excellent environmental & mechanical stability
- High channel isolation
- Premium grade components & connectivity
- Wide pass band
Standards
Product Documents
Product Specifications
Adapter / Connector type
LC/APC, LC/UPC, SC/APC, SC/UPC
Number of Channels
4, 8
Starting wavelength (nm)
1470, 1310
Upgrade/Express port
No, Yes
