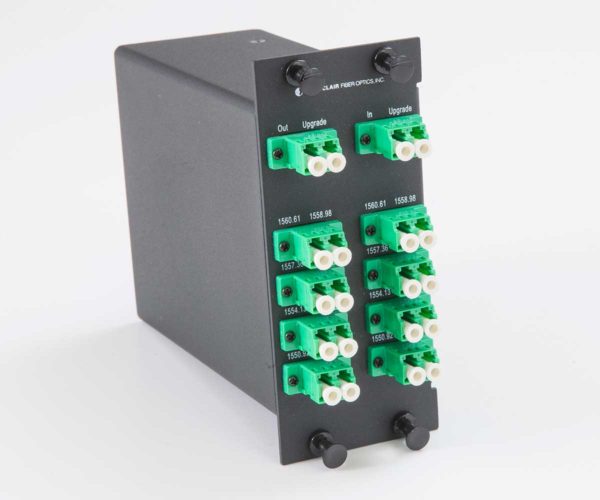

DWDM 100GHz Mux Demux Dual Fiber

Add Product to Quote

Product Variations

Select a product variation and ‘Save’ to add the product to your quote.

Part No.	Adapter / Connector type	Number of Channels	Starting wavelength (nm)	Upgrade/Express port

MW-D1-4-C21-MD-R-ALC	LC/APC	4	C21 / 1560.61	No
MW-D1-4-C21-MD-R-LCU	LC/UPC	4	C21 / 1560.61	No
MW-D1-4-C21-MD-R-ASC	SC/APC	4	C21 / 1560.61	No
MW-D1-4-C21-MD-R-SCU	SC/UPC	4	C21 / 1560.61	No
MW-D1-8-C21-MD-R-ALC	LC/APC	8	C21 / 1560.61	No
MW-D1-8-C21-MD-R-LCU	LC/UPC	8	C21 / 1560.61	No
MW-D1-8-C21-MD-R-ASC	SC/APC	8	C21 / 1560.61	No
MW-D1-8-C21-MD-R-SCU	SC/UPC	8	C21 / 1560.61	No
MW-D1-16-C21-MD-R-ALC	LC/APC	16	C21 / 1560.61	No
MW-D1-16-C21-MD-R-LCU	LC/UPC	16	C21 / 1560.61	No
MW-D1-16-C21-MD-R-ASC	SC/APC	16	C21 / 1560.61	No
MW-D1-16-C21-MD-R-SCU	SC/UPC	16	C21 / 1560.61	No
MW-D1-4-C21-MD-R-ALC-U	LC/APC	4	C21 / 1560.61	Yes
MW-D1-4-C21-MD-R-LCU-U	LC/UPC	4	C21 / 1560.61	Yes
MW-D1-4-C21-MD-R-ASC-U	SC/APC	4	C21 / 1560.61	Yes
MW-D1-4-C21-MD-R-SCU-U	SC/UPC	4	C21 / 1560.61	Yes
MW-D1-8-C21-MD-R-ALC-U	LC/APC	8	C21 / 1560.61	Yes
MW-D1-8-C21-MD-R-LCU-U	LC/UPC	8	C21 / 1560.61	Yes
MW-D1-8-C21-MD-R-ASC-U	SC/APC	8	C21 / 1560.61	Yes
MW-D1-8-C21-MD-R-SCU-U	SC/UPC	8	C21 / 1560.61	Yes
MW-D1-16-C21-MD-R-ALC-U	LC/APC	16	C21 / 1560.61	Yes
MW-D1-16-C21-MD-R-LCU-U	LC/UPC	16	C21 / 1560.61	Yes
MW-D1-16-C21-MD-R-ASC-U	SC/APC	16	C21 / 1560.61	Yes
MW-D1-16-C21-MD-R-SCU-U	SC/UPC	16	C21 / 1560.61	Yes

No Results

Adapter / Connector type

Number of Channels

Starting wavelength (nm)

Upgrade/Express port

Clear

Part No.

For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

A low-cost method for utilizing the bandwidth capacity on existing fiber. The DWDM 100GHz Mux Demux dual fiber bidirectional solution supports up to 16 dense wavelength channels for full transmitting and receiving of DWDM C-Band signals over duplex singlemode fiber. Montclair passive DWDMs are available with an optional upgrade port to allow for incremental future channel add-ons.
