DOADM | Dense Optical Add Drop Multiplexer
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
Part No. | Adapter / Connector type | Number of Channels | Starting wavelength (nm) | Wideband port | Monitor port | |
---|---|---|---|---|---|---|
MW-AD-4-C21-M-ALC | LC/APC | 4 | C21/1560.61 | No | No | |
MW-AD-4-C21-M-LCU | LC/UPC | 4 | C21/1560.61 | No | No | |
MW-AD-4-C21-M-ASC | SC/APC | 4 | C21/1560.61 | No | No | |
MW-AD-4-C21-M-SCU | SC/UPC | 4 | C21/1560.61 | No | No | |
MW-AD-8-C21-M-ALC | LC/APC | 8 | C21/1560.61 | No | No | |
MW-AD-8-C21-M-LCU | LC/UPC | 8 | C21/1560.61 | No | No | |
MW-AD-8-C21-M-ASC | SC/APC | 8 | C21/1560.61 | No | No | |
MW-AD-8-C21-M-SCU | SC/UPC | 8 | C21/1560.61 | No | No | |
MW-AD-4-C21-M-ALC-M | LC/APC | 4 | C21/1560.61 | No | Yes | |
MW-AD-4-C21-M-LCU-M | LC/UPC | 4 | C21/1560.61 | No | Yes | |
MW-AD-4-C21-M-ASC-M | SC/APC | 4 | C21/1560.61 | No | Yes | |
MW-AD-4-C21-M-SCU-M | SC/UPC | 4 | C21/1560.61 | No | Yes | |
MW-AD-8-C21-M-ALC-M | LC/APC | 8 | C21/1560.61 | No | Yes | |
MW-AD-8-C21-M-LCU-M | LC/UPC | 8 | C21/1560.61 | No | Yes | |
MW-AD-8-C21-M-ASC-M | SC/APC | 8 | C21/1560.61 | No | Yes | |
MW-AD-8-C21-M-SCU-M | SC/UPC | 8 | C21/1560.61 | No | Yes | |
MW-AD-4-C21-M-ALC-31 | LC/APC | 4 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-4-C21-M-LCU-31 | LC/UPC | 4 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-4-C21-M-ASC-31 | SC/APC | 4 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-4-C21-M-SCU-31 | SC/UPC | 4 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-8-C21-M-ALC-31 | LC/APC | 8 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-8-C21-M-LCU-31 | LC/UPC | 8 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-8-C21-M-ASC-31 | SC/APC | 8 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-8-C21-M-SCU-31 | SC/UPC | 8 | C21/1560.61 | 1310+/-40nm | No | |
MW-AD-4-C21-M-ALC-31-M | LC/APC | 4 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-4-C21-M-LCU-31-M | LC/UPC | 4 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-4-C21-M-ASC-31-M | SC/APC | 4 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-4-C21-M-SCU-31-M | SC/UPC | 4 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-8-C21-M-ALC-31-M | LC/APC | 8 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-8-C21-M-LCU-31-M | LC/UPC | 8 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-8-C21-M-ASC-31-M | SC/APC | 8 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-8-C21-M-SCU-31-M | SC/UPC | 8 | C21/1560.61 | 1310+/-40nm | Yes | |
MW-AD-4-C21-M-ALC-55 | LC/APC | 4 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-4-C21-M-LCU-55 | LC/UPC | 4 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-4-C21-M-ASC-55 | SC/APC | 4 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-4-C21-M-SCU-55 | SC/UPC | 4 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-8-C21-M-ALC-55 | LC/APC | 8 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-8-C21-M-LCU-55 | LC/UPC | 8 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-8-C21-M-ASC-55 | SC/APC | 8 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-8-C21-M-SCU-55 | SC/UPC | 8 | C21/1560.61 | 1550+/-40nm | No | |
MW-AD-4-C21-M-ALC-55-M | LC/APC | 4 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-4-C21-M-LCU-55-M | LC/UPC | 4 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-4-C21-M-ASC-55-M | SC/APC | 4 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-4-C21-M-SCU-55-M | SC/UPC | 4 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-8-C21-M-ALC-55-M | LC/APC | 8 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-8-C21-M-LCU-55-M | LC/UPC | 8 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-8-C21-M-ASC-55-M | SC/APC | 8 | C21/1560.61 | 1550+/-40nm | Yes | |
MW-AD-8-C21-M-SCU-55-M | SC/UPC | 8 | C21/1560.61 | 1550+/-40nm | Yes |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details

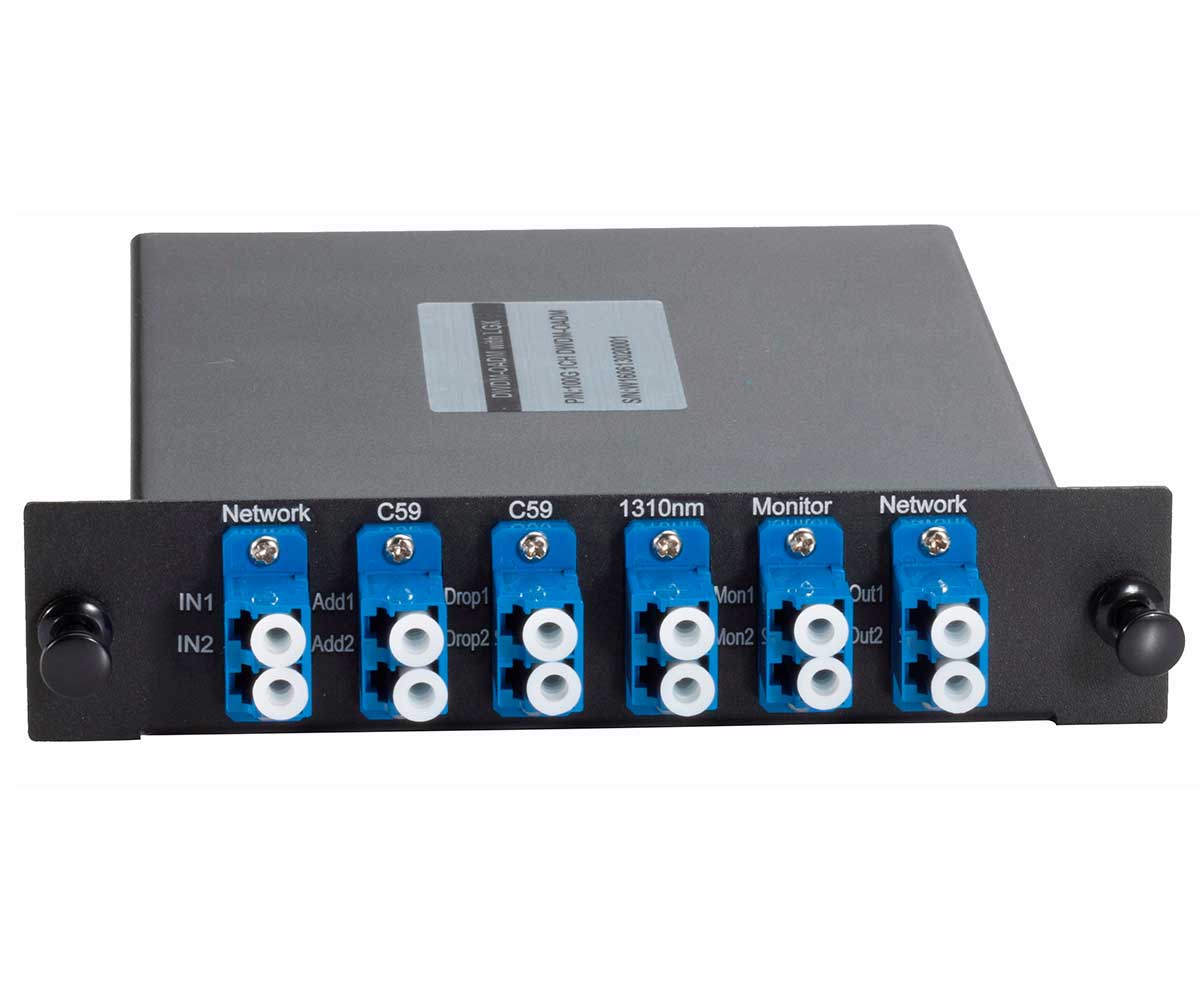

DWDM OADM (DWDM/AD) modules are Dense Wavelength Division Multiplexing (DWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path. Using high-performance filter technology, the DWDM/AD is a passive optical add/drop multiplexer designed to optically add/drop one or more multiple DWDM channels into one or two fibers.
An ideal solution for Metro-Core, Metro-Access and Enterprises comprise a family of flexible, cost-effective solutions that expand the bandwidth capacity of existing fiber in point-to-point, ring, or bus configurations' applications. Add/drop channels are interfaced to any of DWDM transceivers on the equipment side and with optional Add-on ports including Monitor Port, 1310nm passband port, and Express/Expansion port. For 100GHz or 200GHz networks, Montclair DWDM Optical Add Drop Multiplexers (OADM) are available in 1RU 19” Rack mount, LGX module, and Tray-mount ruggedized cassettes.
Features
- Entirely passive device, no power supply needed
- Fully transparent to all data rates and protocols
- Low-cost transceivers applicable, existing equipment can still be used
- Optical drop/pass and drop/insert of single DWDM channel for point-to-point, ring- or bus configuration
- Up to10 Gbit/s per channel
Product Specifications
Adapter / Connector type
LC/APC, LC/UPC, SC/APC, SC/UPC
Number of Channels
4, 8
Starting wavelength (nm)
C21/1560.61
Wideband port
No, 1310+/-40nm, 1550+/-40nm
Monitor port
No, Yes
