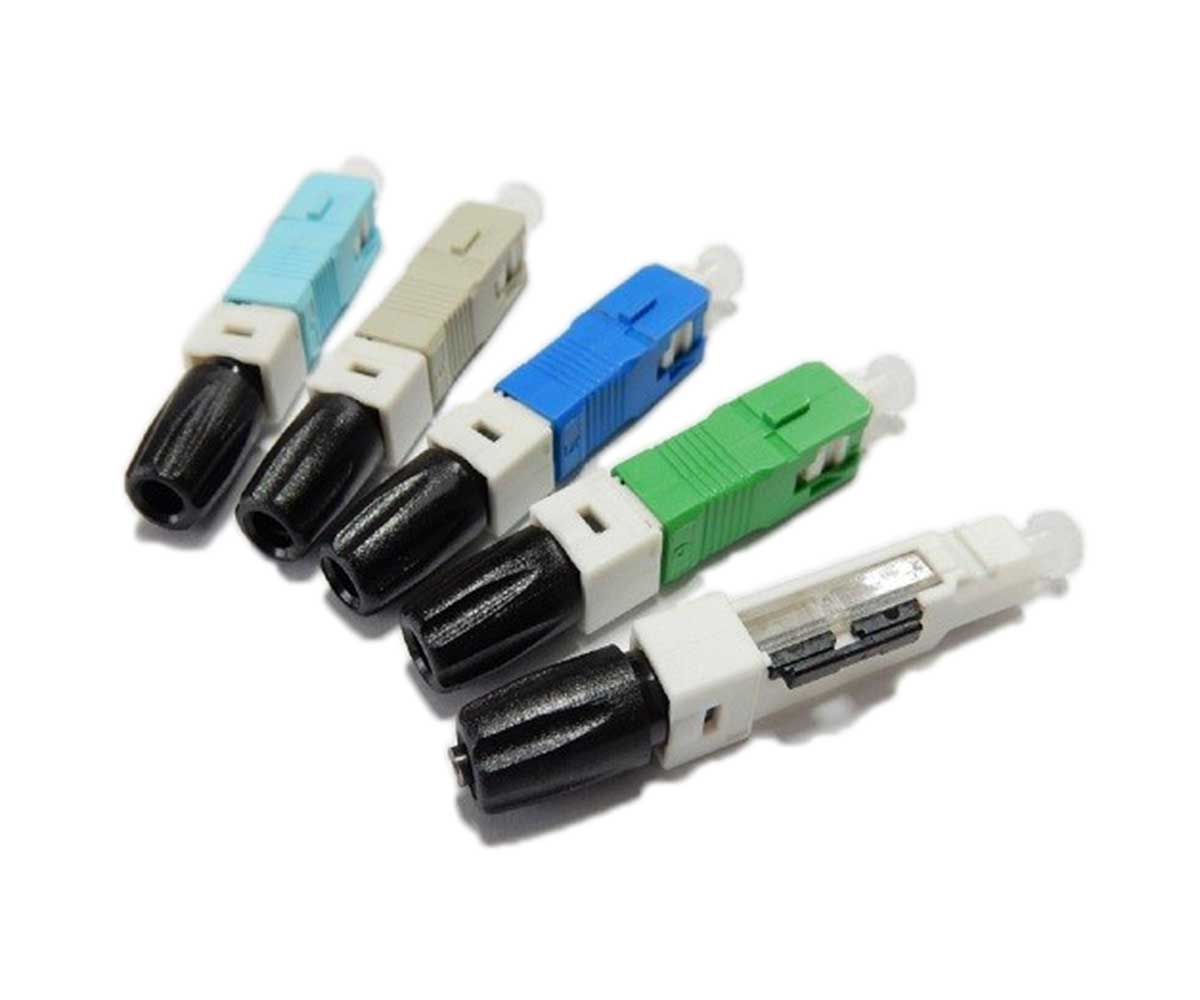

EZ-QUICK Field-Installable Connectors

Factory pre-polished connectors that are tested to cost-effectively eliminate the need for time consuming terminating, epoxy setup, and polishing in the field. With a few easy steps, installing EZ-QUICK® Field-Installable connectors takes less than 2 minutes to achieve low loss terminations on singlemode or multimode 250um, 900um, 2mm, and 3mm fiber cables.

These connectors require no special tools or skills. A fiber cleaver and strippers are the only essential tools for easy and quick installations in the field. Simply strip, cleave, and guide the fiber end into the transparent connector body containing index matching gel. A red light emitted through the transparent connector body visually confirms the fibers are fully mated when the red light disappears. Final engagement of the built-in clamp on the connector housing safely secures the fiber.

View Specifications

Clear
Part No. N/A
Features
  • Connector installations in less than 2 minutes
  • Easy, quick, and reliable installation method
  • Factory pre-polished and tested to ensure low loss connections
  • No epoxies or polishing required
SPECIFICATIONS
Operating/Storage temperature range (°C)

-40 to +85

Insertion Loss - typical (dB) Singlemode APC

0.3

Insertion Loss - typical (dB) Singlemode UPC

0.2

Return Loss - typical (dB) Singlemode APC

50~55

Insertion Loss - typical (dB) Multimode PC

0.1

Return Loss - typical (dB) Singlemode UPC

50~55

Return Loss - typical (dB) Multimode PC

25

Fiber cable diameter sizes

250um, 900um, 2.0mm, 3.0mm

Connector type

LC/APC Singlemode 9um Green, LC/UPC Singlemode 9um Blue, LC/PC Multimode OM1 62.5um Beige, LC/PC Multimode OM2 50um Beige, LC/PC Multimode OM3 50um Aqua, LC/PC Multimode OM4 50um Aqua, SC/APC Singlemode 9um Green, SC/UPC Singlemode 9um Blue, SC/PC Multimode OM1 62.5um Beige, SC/PC Multimode OM2 50um Beige, SC/PC Multimode OM3 50um Aqua, SC/PC MM OM4 50um Aqua
