Hybrid Adapter Converters
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Hybrid Adapter Type | |
|---|---|---|
| MHA-LC/ST/SM | LC Female to ST Female | |
| MHA-FC/LC/SM | FC Female to LC Female | |

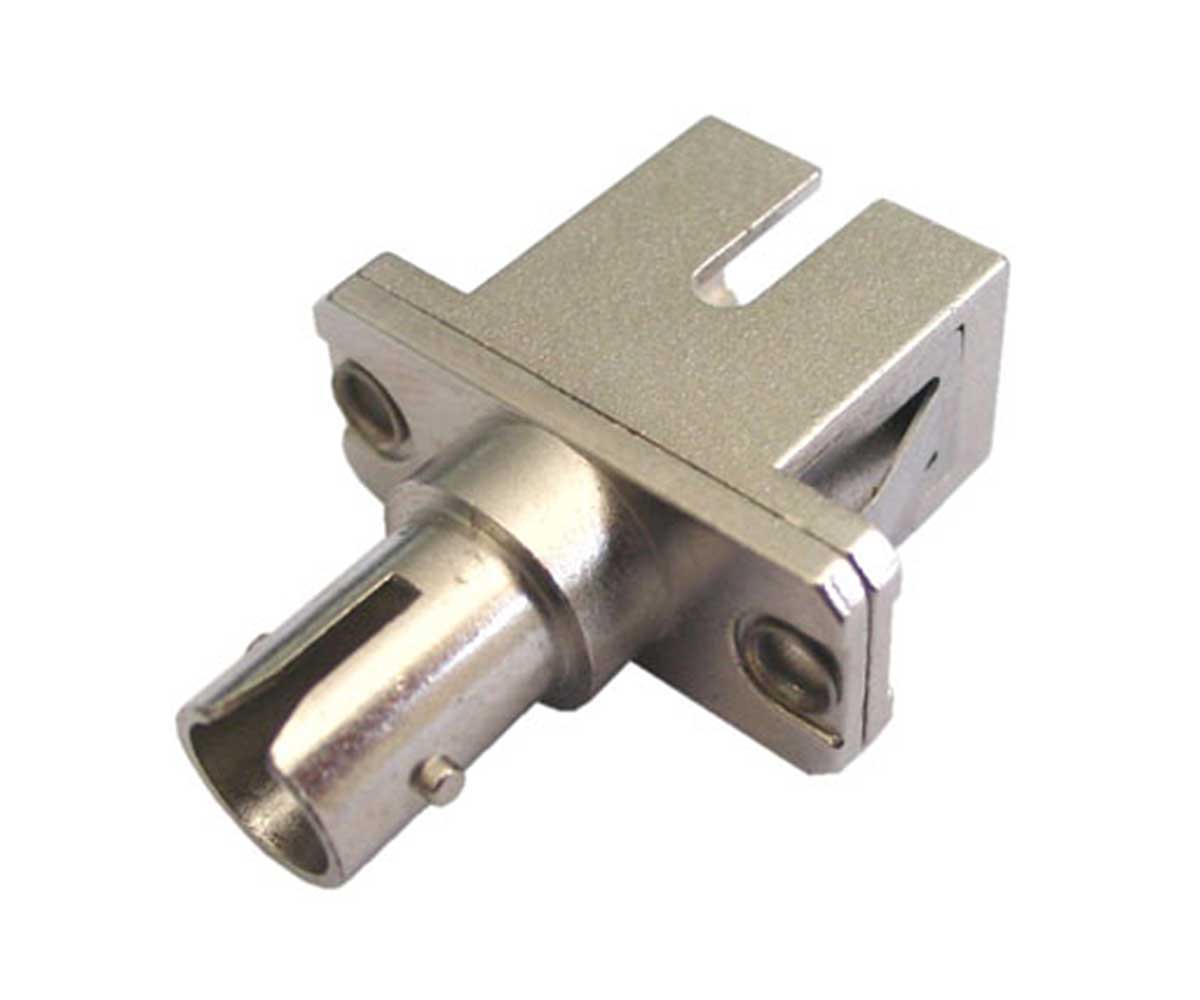

| MHA-SC/ST/SM | SC Female to ST Female | |

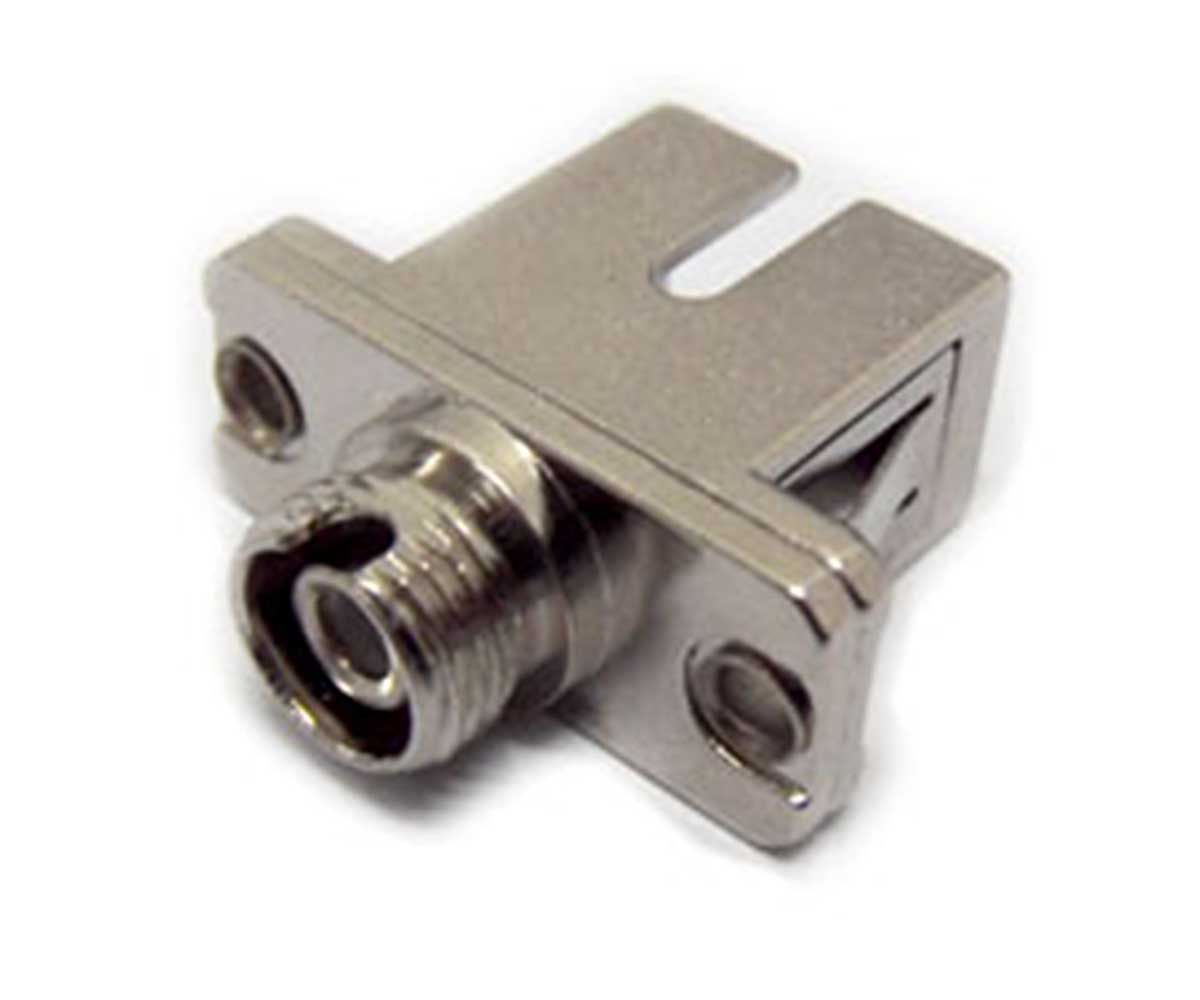

| MHA-FC/SC/SM | FC Female to SC Female | |

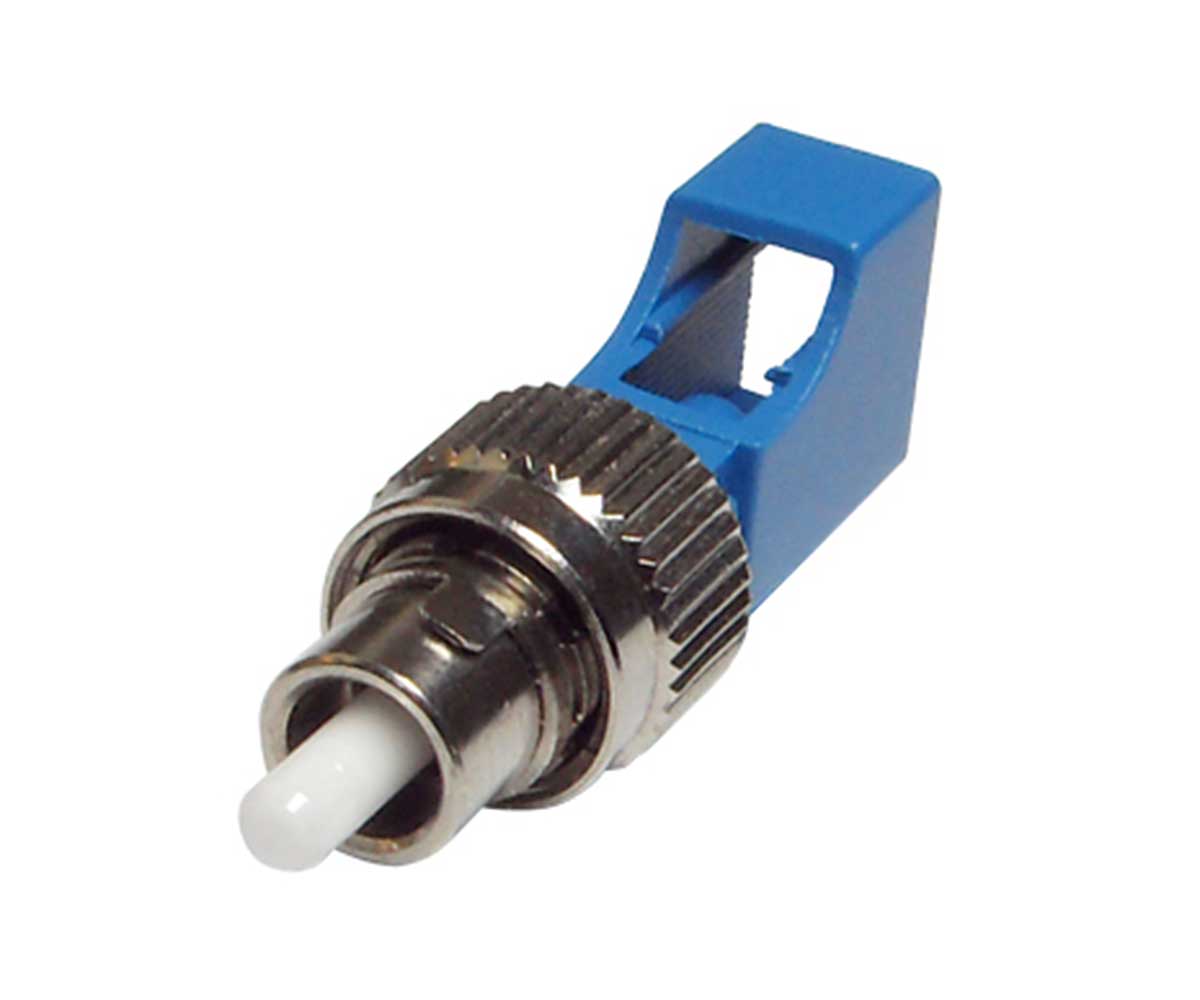

| MHA-FCM/LCF/SM | FC Male to LC Female | |

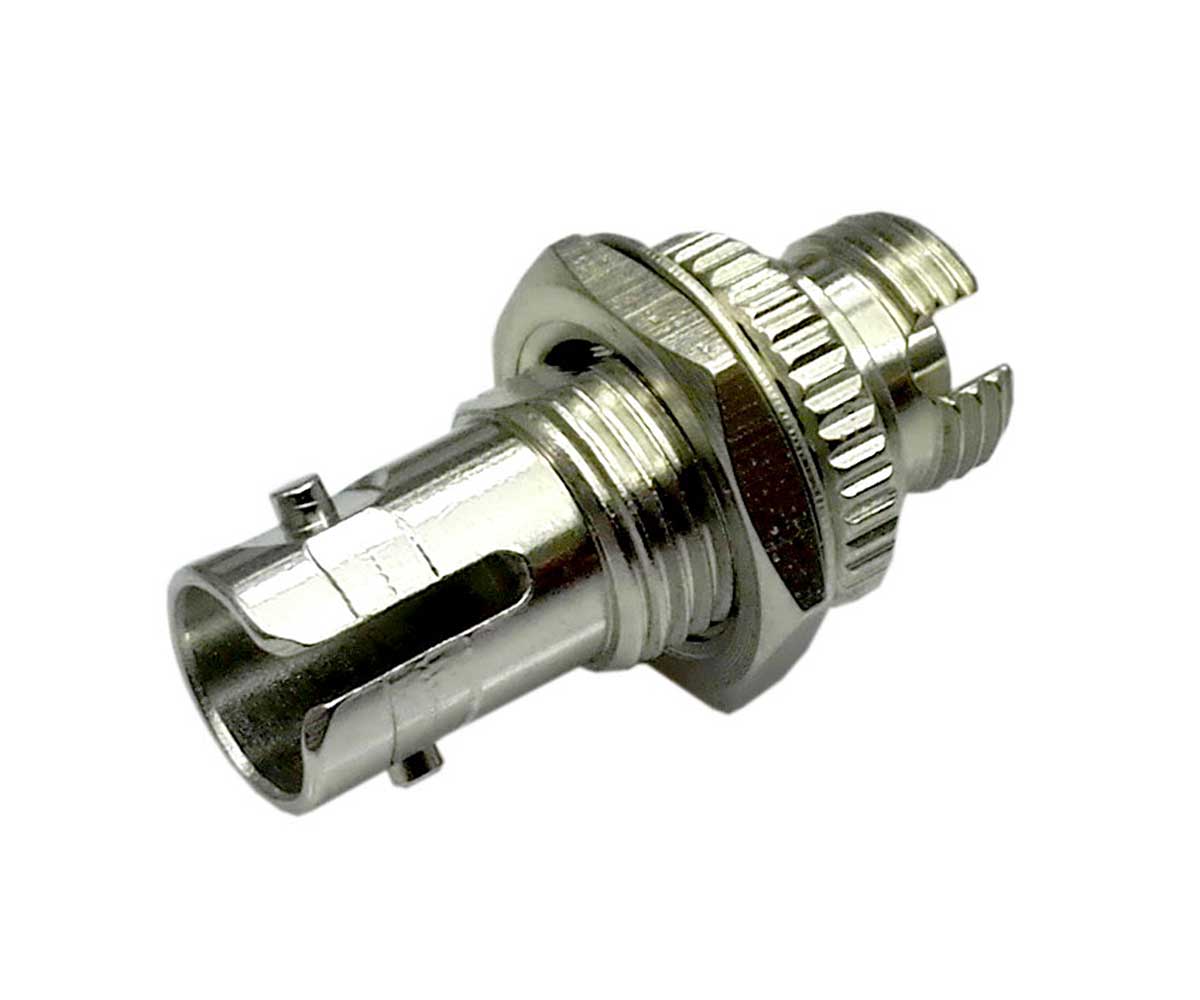

| MHA-FC/ST/SM | FC Female to ST Female | |

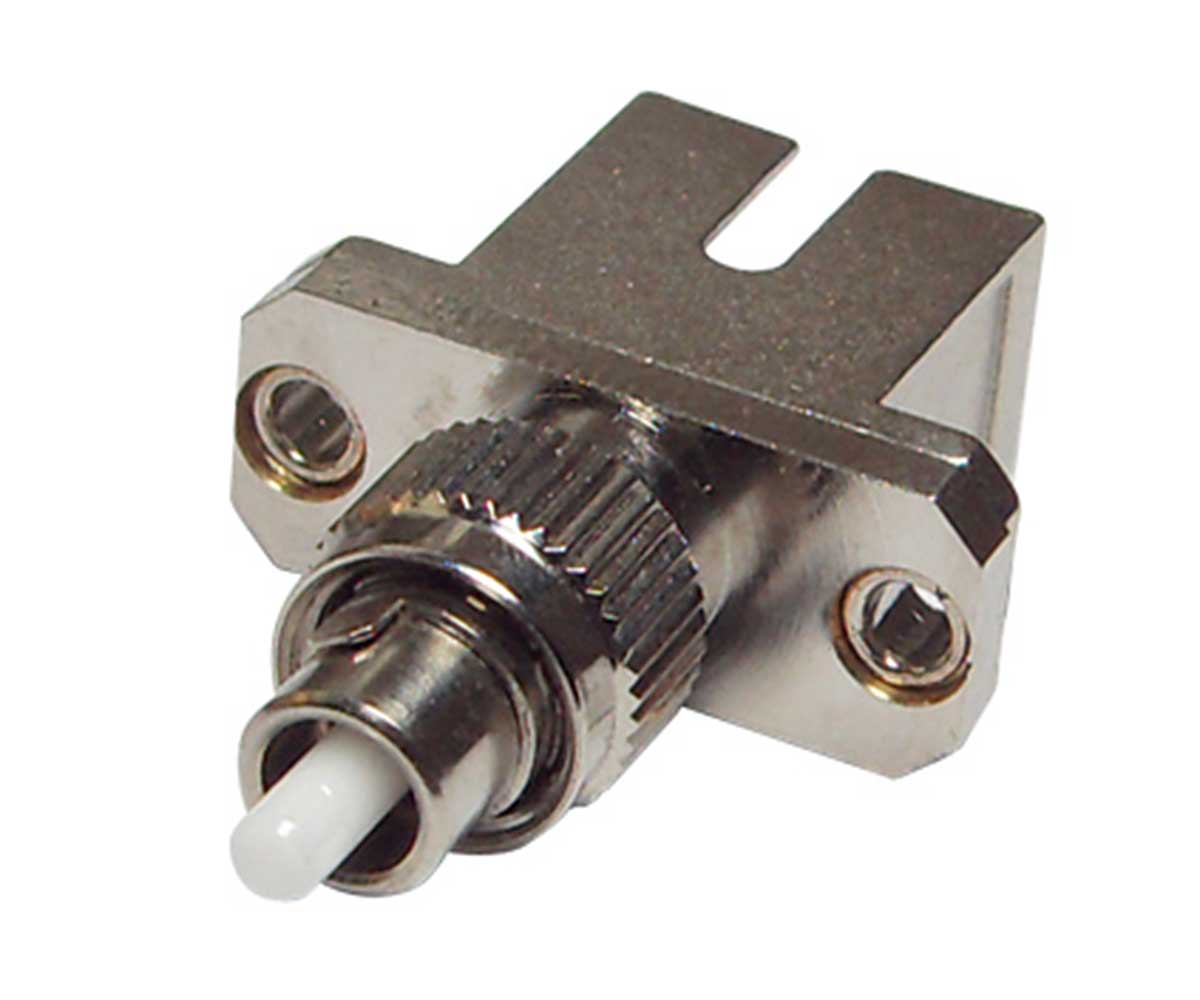

| MHA-FCM/SCF/SM | FC Male to SC Female | |
| MHA-LC/SC/SM | LC Female to SC Female | |
| MHA-FCM/STF/SM | FC Male to ST Female | |

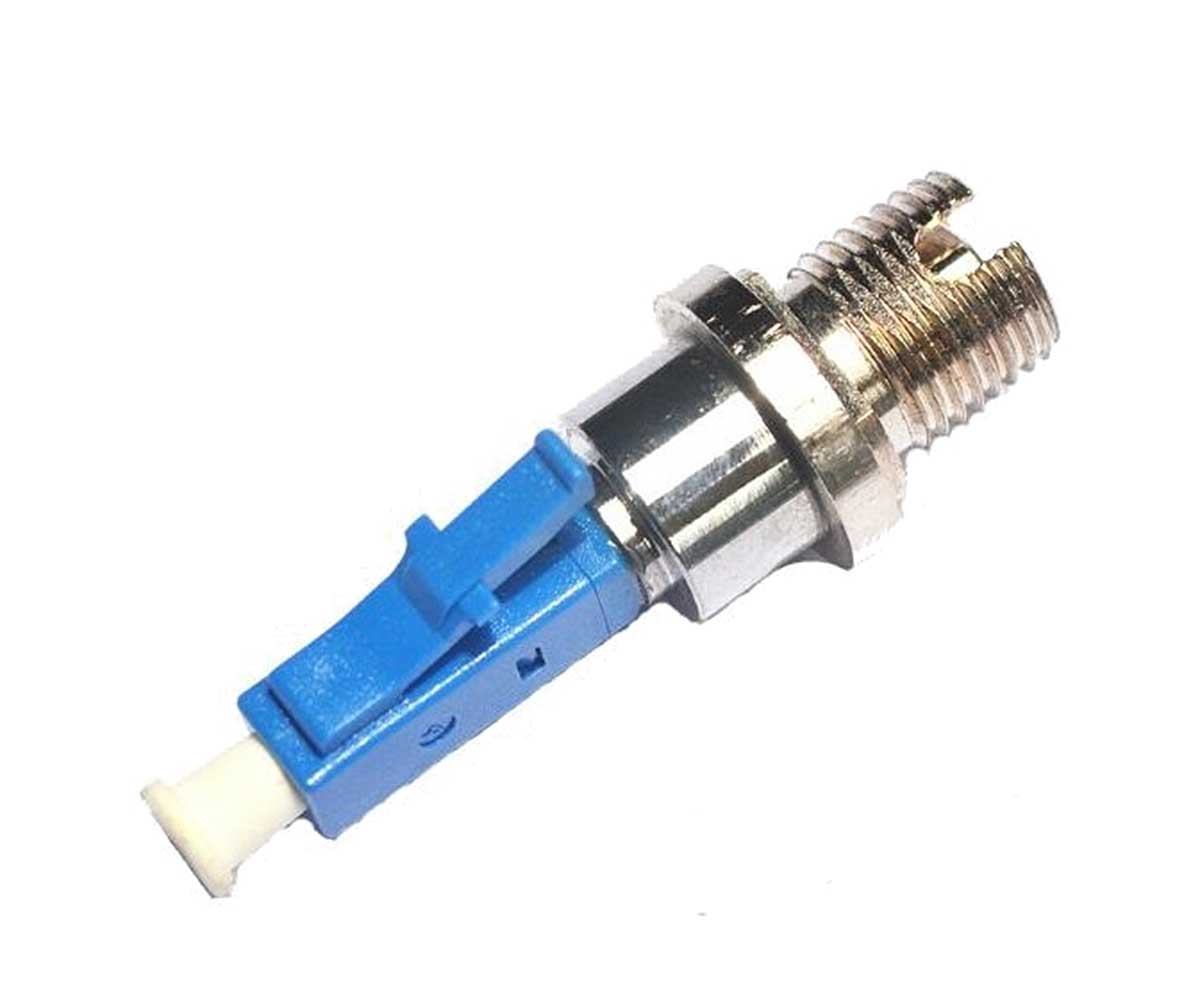

| MHA-LCM/FCF/SM | LC Male to FC Female | |
| MHA-LCM/SCF/SM | LC Male to SC Female | |
| MHA-LCM/STF/SM | LC Male to ST Female | |

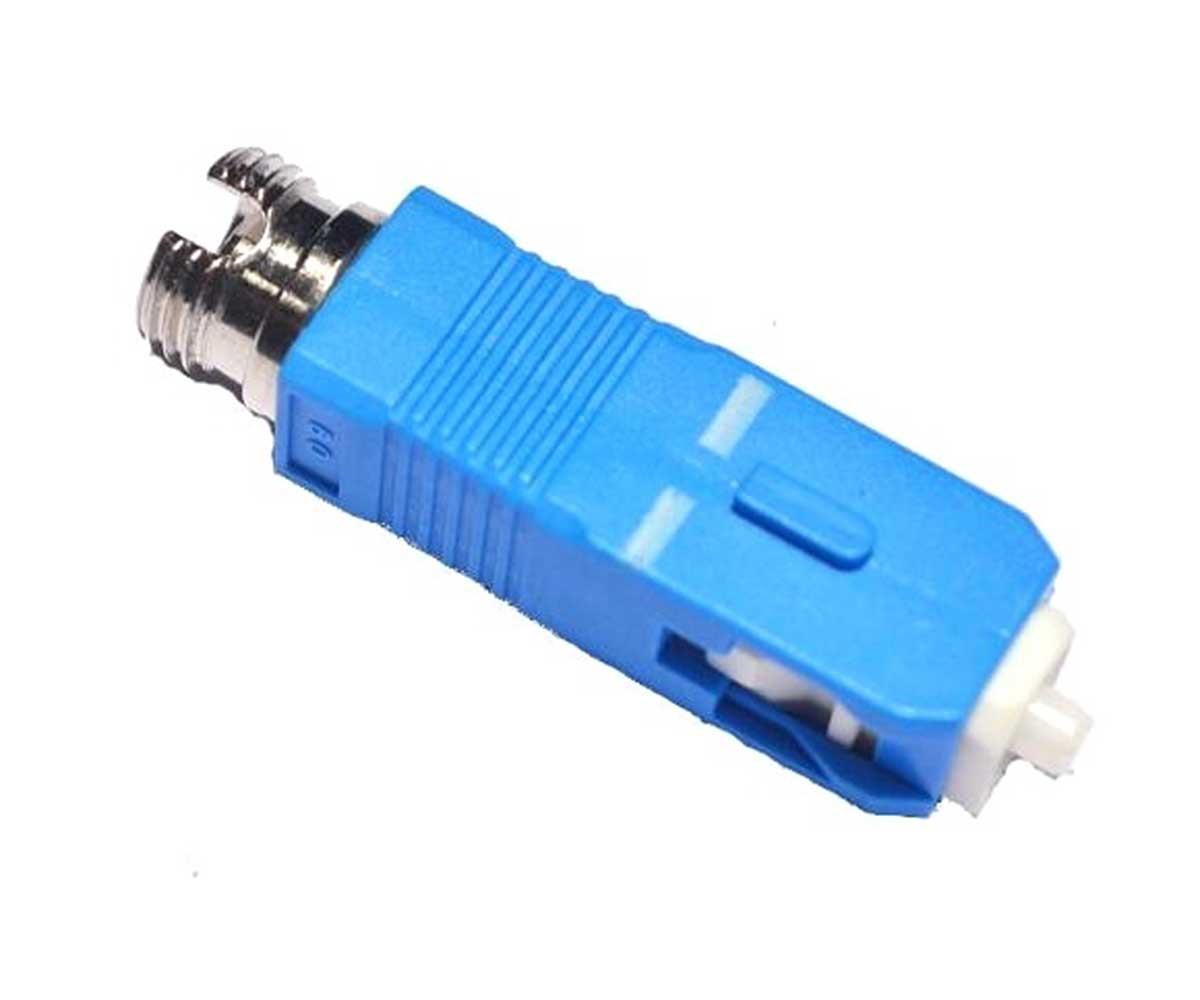

| MHA-SCM/FCF/SM | SC Male to FC Female | |
| MHA-SCM/LCF/SM | SC Male to LC Female | |

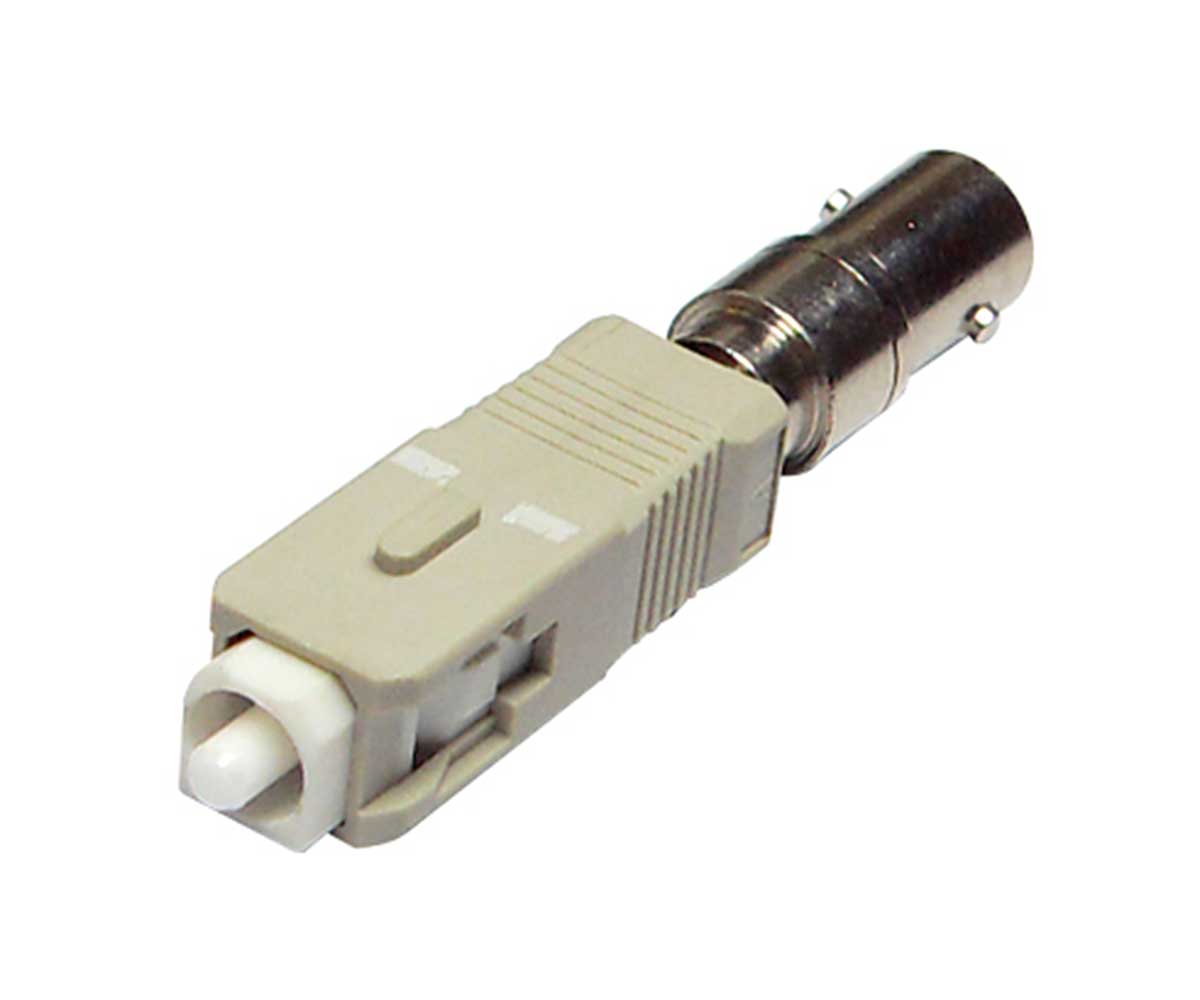

| MHA-SCM/STF/SM | SC Male to ST Female | |
| MHA-STM/FCF/SM | ST Male to FC Female | |
| MHA-STM/LCF/SM | ST Male to LC Female | |
| MHA-STM/SCF/SM | ST Male to SC Female | |
| MHA-ASCM/SCF/SM | SC/APC Male to SC Female | |
| MHA-SCM/ASCF/SM | SC Male to SC/APC Female |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
Hybrid adapters are manufactured with quality zirconia sleeves and provide tight-tolerance to ensure low insertion loss. We offer a wide selection of high-quality fiber optic hybrid adapter converters for mating with different types of connectors and genders. They are available in female to female and male to female styles.
Features
- Available installed in adapter plates
- High precision alignment
- Low insertion loss & PDL
- Singlemode
Applications
Product Specifications
Insertion Loss - typical (dB)
≤ 0.20
Hybrid Adapter Type
FC Female to LC Female, FC Female to SC Female, FC Female to ST Female, LC Female to SC Female, LC Female to ST Female, SC Female to ST Female, FC Male to LC Female, FC Male to SC Female, FC Male to ST Female, LC Male to FC Female, LC Male to SC Female, LC Male to ST Female, SC Male to FC Female, SC Male to LC Female, SC Male to ST Female, ST Male to FC Female, ST Male to LC Female, ST Male to SC Female, SC/APC Male to SC Female, SC Male to SC/APC Female
Repeatability
≤ 0.10
Fiber Mode Type
Singlemode
Operating temperature range (°C)
-25 to +70
