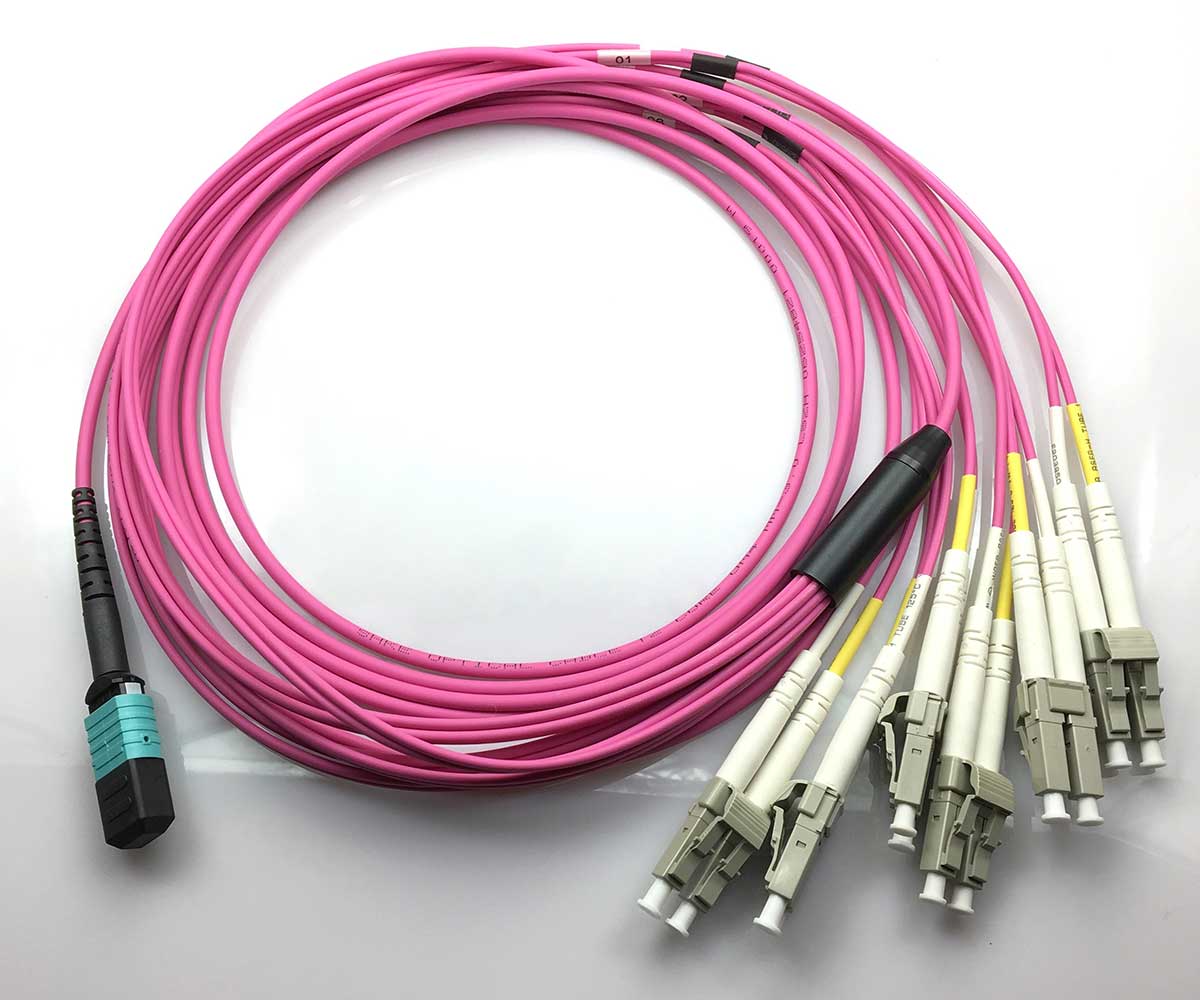

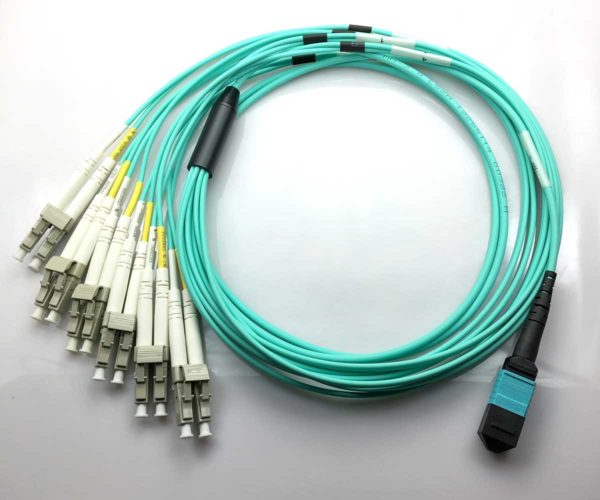

MTP MPO OM3 & OM4 Fanout Cables
Add Product to Quote
Product Variations
Select a product variation and ‘Save’ to add the product to your quote.
| Part No. | Cable Type | MTP Connector type | Fanout connector type | Fiber count | Total cable length (m) | Polarity type | |
|---|---|---|---|---|---|---|---|
| MTPF-3-SUF-LC-8-M-1-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 1 | Type-A | |
| MTPF-3-SUF-LC-8-M-2-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 2 | Type-A | |
| MTPF-3-SUF-LC-8-M-3-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 3 | Type-A | |
| MTPF-3-SUF-LC-8-M-5-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 5 | Type-A | |
| MTPF-3-SUF-LC-8-M-10-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 10 | Type-A | |
| MTPF-3-SUF-SC-8-M-1-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 1 | Type-A | |
| MTPF-3-SUF-SC-8-M-2-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 2 | Type-A | |
| MTPF-3-SUF-SC-8-M-3-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 3 | Type-A | |
| MTPF-3-SUF-SC-8-M-5-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 5 | Type-A | |
| MTPF-3-SUF-SC-8-M-10-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 10 | Type-A | |
| MTPF-3-SUF-LC-12-M-1-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 1 | Type-A | |
| MTPF-3-SUF-LC-12-M-2-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 2 | Type-A | |
| MTPF-3-SUF-LC-12-M-3-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 3 | Type-A | |
| MTPF-3-SUF-LC-12-M-5-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 5 | Type-A | |
| MTPF-3-SUF-LC-12-M-10-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 10 | Type-A | |
| MTPF-3-SUF-SC-12-M-1-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 1 | Type-A | |
| MTPF-3-SUF-SC-12-M-2-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 2 | Type-A | |
| MTPF-3-SUF-SC-12-M-3-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 3 | Type-A | |
| MTPF-3-SUF-SC-12-M-5-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 5 | Type-A | |
| MTPF-3-SUF-SC-12-M-10-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 10 | Type-A | |
| MTPF-3-SUF-LC-24-M-1-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 1 | Type-A | |
| MTPF-3-SUF-LC-24-M-2-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 2 | Type-A | |
| MTPF-3-SUF-LC-24-M-3-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 3 | Type-A | |
| MTPF-3-SUF-LC-24-M-5-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 5 | Type-A | |
| MTPF-3-SUF-LC-24-M-10-P | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 10 | Type-A | |
| MTPF-3-SUF-SC-24-M-1-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 1 | Type-A | |
| MTPF-3-SUF-SC-24-M-2-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 2 | Type-A | |
| MTPF-3-SUF-SC-24-M-3-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 3 | Type-A | |
| MTPF-3-SUF-SC-24-M-5-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 5 | Type-A | |
| MTPF-3-SUF-SC-24-M-10-P | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 10 | Type-A | |
| MTPF-3-SUF-LC-8-M-1-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 1 | Type-B | |
| MTPF-3-SUF-LC-8-M-2-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 2 | Type-B | |
| MTPF-3-SUF-LC-8-M-3-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 3 | Type-B | |
| MTPF-3-SUF-LC-8-M-5-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 5 | Type-B | |
| MTPF-3-SUF-LC-8-M-10-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 8 | 10 | Type-B | |
| MTPF-3-SUF-SC-8-M-1-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 1 | Type-B | |
| MTPF-3-SUF-SC-8-M-2-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 2 | Type-B | |
| MTPF-3-SUF-SC-8-M-3-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 3 | Type-B | |
| MTPF-3-SUF-SC-8-M-5-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 5 | Type-B | |
| MTPF-3-SUF-SC-8-M-10-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 8 | 10 | Type-B | |
| MTPF-3-SUF-LC-12-M-1-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 1 | Type-B | |
| MTPF-3-SUF-LC-12-M-2-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 2 | Type-B | |
| MTPF-3-SUF-LC-12-M-3-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 3 | Type-B | |
| MTPF-3-SUF-LC-12-M-5-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 5 | Type-B | |
| MTPF-3-SUF-LC-12-M-10-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 12 | 10 | Type-B | |
| MTPF-3-SUF-SC-12-M-1-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 1 | Type-B | |
| MTPF-3-SUF-SC-12-M-2-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 2 | Type-B | |
| MTPF-3-SUF-SC-12-M-3-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 3 | Type-B | |
| MTPF-3-SUF-SC-12-M-5-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 5 | Type-B | |
| MTPF-3-SUF-SC-12-M-10-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 12 | 10 | Type-B | |
| MTPF-3-SUF-LC-24-M-1-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 1 | Type-B | |
| MTPF-3-SUF-LC-24-M-2-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 2 | Type-B | |
| MTPF-3-SUF-LC-24-M-3-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 3 | Type-B | |
| MTPF-3-SUF-LC-24-M-5-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 5 | Type-B | |
| MTPF-3-SUF-LC-24-M-10-P(B) | OM3 | Standard UPC Female (no pins) | LC/UPC | 24 | 10 | Type-B | |
| MTPF-3-SUF-SC-24-M-1-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 1 | Type-B | |
| MTPF-3-SUF-SC-24-M-2-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 2 | Type-B | |
| MTPF-3-SUF-SC-24-M-3-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 3 | Type-B | |
| MTPF-3-SUF-SC-24-M-5-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 5 | Type-B | |
| MTPF-3-SUF-SC-24-M-10-P(B) | OM3 | Standard UPC Female (no pins) | SC/UPC | 24 | 10 | Type-B | |
| MTPF-4-SUF-LC-8-M-1-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 1 | Type-A | |
| MTPF-4-SUF-LC-8-M-2-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 2 | Type-A | |
| MTPF-4-SUF-LC-8-M-3-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 3 | Type-A | |
| MTPF-4-SUF-LC-8-M-5-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 5 | Type-A | |
| MTPF-4-SUF-LC-8-M-10-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 10 | Type-A | |
| MTPF-4-SUF-SC-8-M-1-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 1 | Type-A | |
| MTPF-4-SUF-SC-8-M-2-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 2 | Type-A | |
| MTPF-4-SUF-SC-8-M-3-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 3 | Type-A | |
| MTPF-4-SUF-SC-8-M-5-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 5 | Type-A | |
| MTPF-4-SUF-SC-8-M-10-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 10 | Type-A | |
| MTPF-4-SUF-LC-12-M-1-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 1 | Type-A | |
| MTPF-4-SUF-LC-12-M-2-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 2 | Type-A | |
| MTPF-4-SUF-LC-12-M-3-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 3 | Type-A | |
| MTPF-4-SUF-LC-12-M-5-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 5 | Type-A | |
| MTPF-4-SUF-LC-12-M-10-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 10 | Type-A | |
| MTPF-4-SUF-SC-12-M-1-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 1 | Type-A | |
| MTPF-4-SUF-SC-12-M-2-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 2 | Type-A | |
| MTPF-4-SUF-SC-12-M-3-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 3 | Type-A | |
| MTPF-4-SUF-SC-12-M-5-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 5 | Type-A | |
| MTPF-4-SUF-SC-12-M-10-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 10 | Type-A | |
| MTPF-4-SUF-LC-24-M-1-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 1 | Type-A | |
| MTPF-4-SUF-LC-24-M-2-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 2 | Type-A | |
| MTPF-4-SUF-LC-24-M-3-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 3 | Type-A | |
| MTPF-4-SUF-LC-24-M-5-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 5 | Type-A | |
| MTPF-4-SUF-LC-24-M-10-P | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 10 | Type-A | |
| MTPF-4-SUF-SC-24-M-1-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 1 | Type-A | |
| MTPF-4-SUF-SC-24-M-2-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 2 | Type-A | |
| MTPF-4-SUF-SC-24-M-3-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 3 | Type-A | |
| MTPF-4-SUF-SC-24-M-5-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 5 | Type-A | |
| MTPF-4-SUF-SC-24-M-10-P | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 10 | Type-A | |
| MTPF-4-SUF-LC-8-M-1-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 1 | Type-B | |
| MTPF-4-SUF-LC-8-M-2-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 2 | Type-B | |
| MTPF-4-SUF-LC-8-M-3-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 3 | Type-B | |
| MTPF-4-SUF-LC-8-M-5-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 5 | Type-B | |
| MTPF-4-SUF-LC-8-M-10-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 8 | 10 | Type-B | |
| MTPF-4-SUF-SC-8-M-1-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 1 | Type-B | |
| MTPF-4-SUF-SC-8-M-2-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 2 | Type-B | |
| MTPF-4-SUF-SC-8-M-3-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 3 | Type-B | |
| MTPF-4-SUF-SC-8-M-5-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 5 | Type-B | |
| MTPF-4-SUF-SC-8-M-10-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 8 | 10 | Type-B | |
| MTPF-4-SUF-LC-12-M-1-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 1 | Type-B | |
| MTPF-4-SUF-LC-12-M-2-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 2 | Type-B | |
| MTPF-4-SUF-LC-12-M-3-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 3 | Type-B | |
| MTPF-4-SUF-LC-12-M-5-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 5 | Type-B | |
| MTPF-4-SUF-LC-12-M-10-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 12 | 10 | Type-B | |
| MTPF-4-SUF-SC-12-M-1-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 1 | Type-B | |
| MTPF-4-SUF-SC-12-M-2-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 2 | Type-B | |
| MTPF-4-SUF-SC-12-M-3-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 3 | Type-B | |
| MTPF-4-SUF-SC-12-M-5-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 5 | Type-B | |
| MTPF-4-SUF-SC-12-M-10-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 12 | 10 | Type-B | |
| MTPF-4-SUF-LC-24-M-1-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 1 | Type-B | |
| MTPF-4-SUF-LC-24-M-2-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 2 | Type-B | |
| MTPF-4-SUF-LC-24-M-3-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 3 | Type-B | |
| MTPF-4-SUF-LC-24-M-5-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 5 | Type-B | |
| MTPF-4-SUF-LC-24-M-10-P(B) | OM4 | Standard UPC Female (no pins) | LC/UPC | 24 | 10 | Type-B | |
| MTPF-4-SUF-SC-24-M-1-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 1 | Type-B | |
| MTPF-4-SUF-SC-24-M-2-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 2 | Type-B | |
| MTPF-4-SUF-SC-24-M-3-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 3 | Type-B | |
| MTPF-4-SUF-SC-24-M-5-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 5 | Type-B | |
| MTPF-4-SUF-SC-24-M-10-P(B) | OM4 | Standard UPC Female (no pins) | SC/UPC | 24 | 10 | Type-B |
No Results
For a Custom Design Configuration of this Product Provide Your Request Here
Product Details
Installers and operators benefit from reduced time and simplified installations of a structured cabling system to meet the bandwidth demands of today’s data centers. The MTP®/MPO connector, standardized on IEC 61754-7 & TIA/EIA 604-5, supports high-speed parallel applications with data rates up to 10Gb/s and 40Gb/s and 100Gb/s Ethernet protocols via multimode OM3 & 4 fiber.
Contact us for more configurations.
Features
- 8, 12, 24, 36, 48, 72, 96, and 144 count fiber cable
- Attached pulling-eye to fit each particular environment
- Color coded housings available to differentiate fiber type and connector grade
- Factory terminated and 100% optically tested
- High precision guide pins
- High-density
- Installer-friendly to save time and labor costs
- MTP®/MPO fanout cables available in 12 & 24 fiber connectors
- Optimal network performance
- Patented elliptical guide pin tip to minimize ferrule debris
- Quality components
Applications
Product Specifications
Cable Type
OM3, OM4
MTP Connector type
Standard UPC Male (pins), Standard UPC Female (no pins)
MTP / MPO Insertion loss dB
0.20
Fanout connector type
LC/UPC, SC/UPC
MTP / MPO Return loss dB
30
Fiber count
8, 12, 24, 48, 72, 144
Multimode Connector Insertion loss dB
Typical 0.15, Maximum 0.20
Total cable length (m)
1, 2, 3, 5, 10, more
Multimode Connector Return loss dB
35
Polarity type
Type-A, Type-B, Type-C
MPO Connector type
Standard UPC Male (pins), Standard UPC Female (no pins)
Fiber cable type
Mini-round
Fiber cable jacket outer diameter (mm)
2.0
Fiber color
Yellow (OS2)
