Optical Attenuators

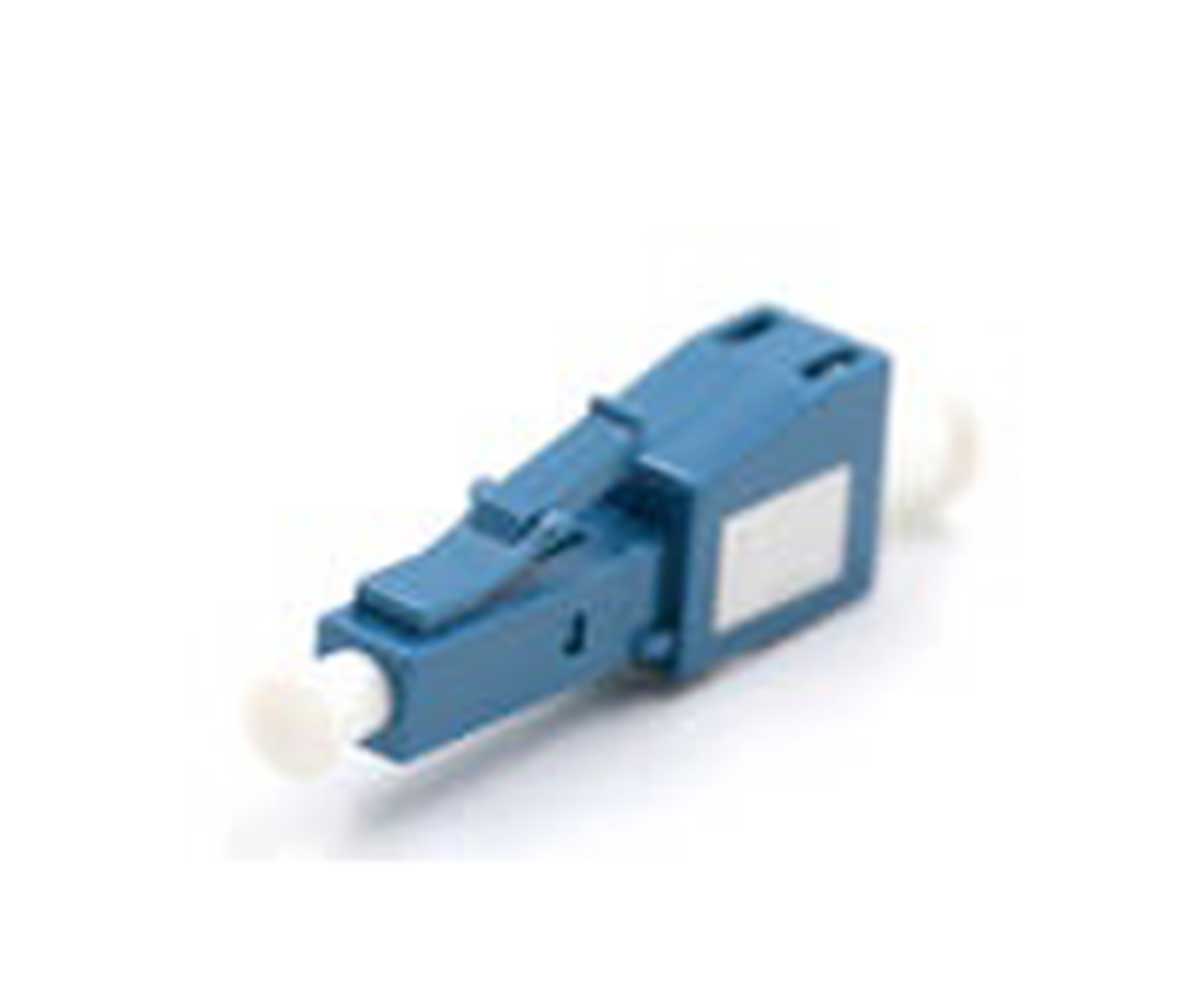

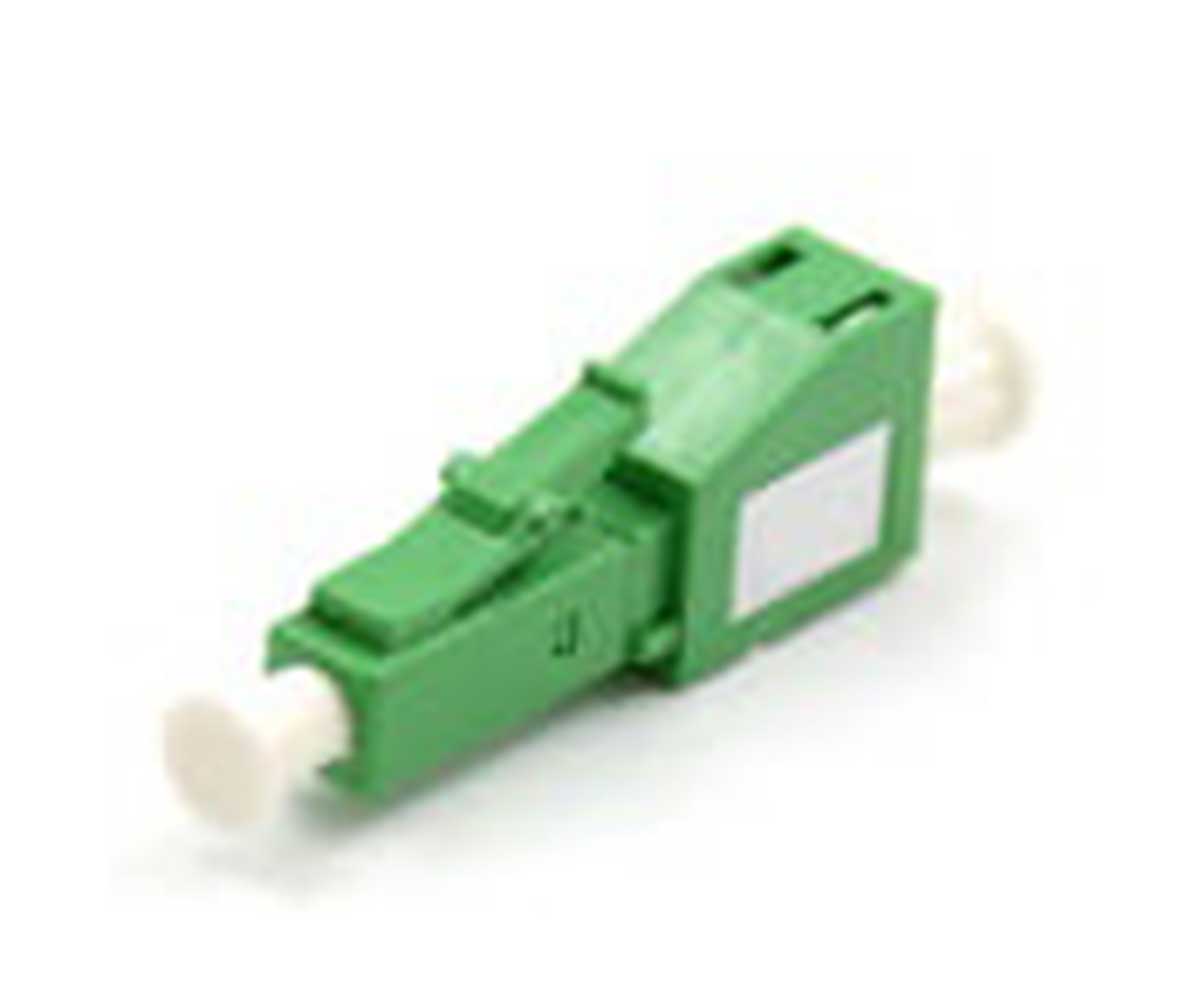

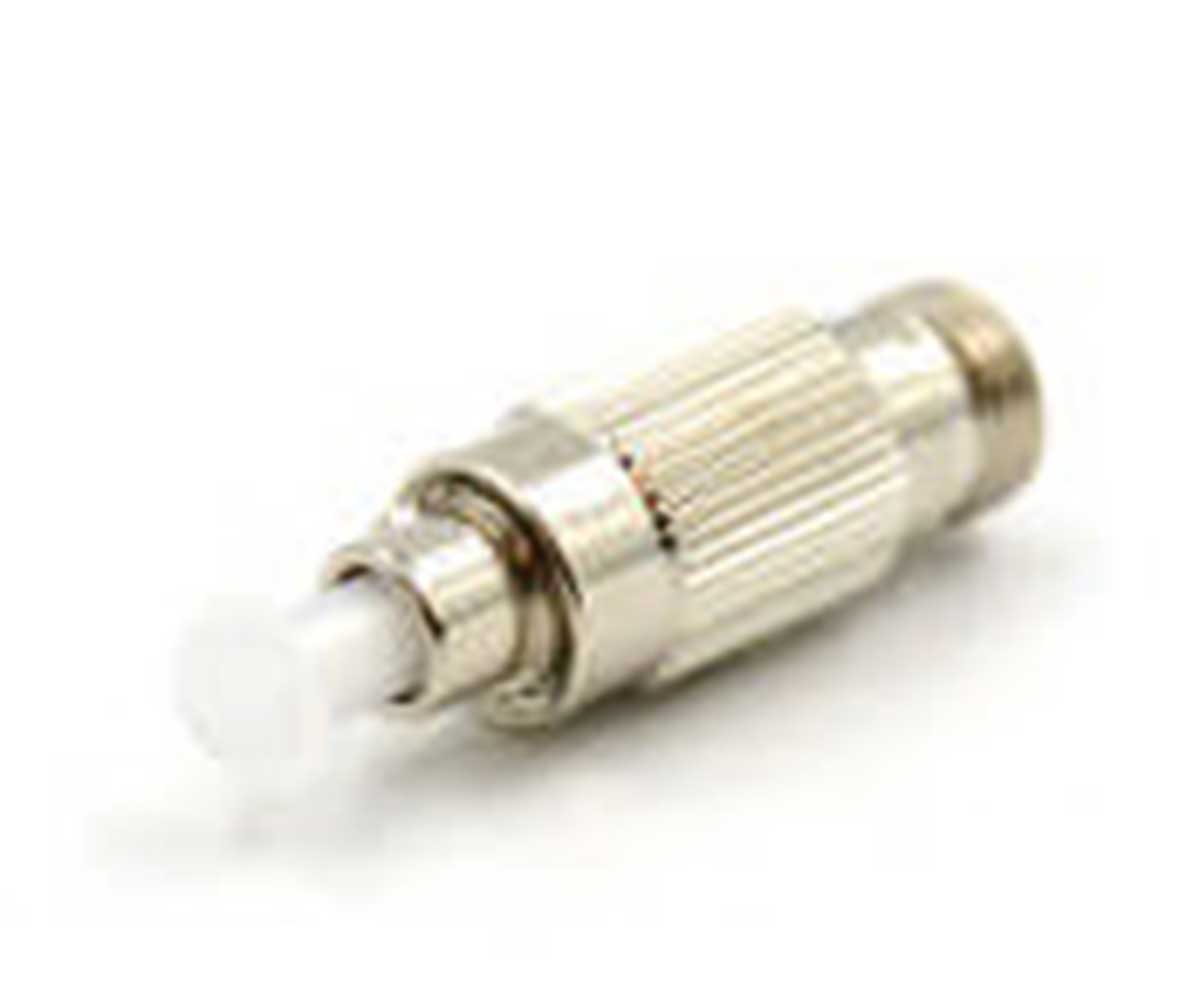

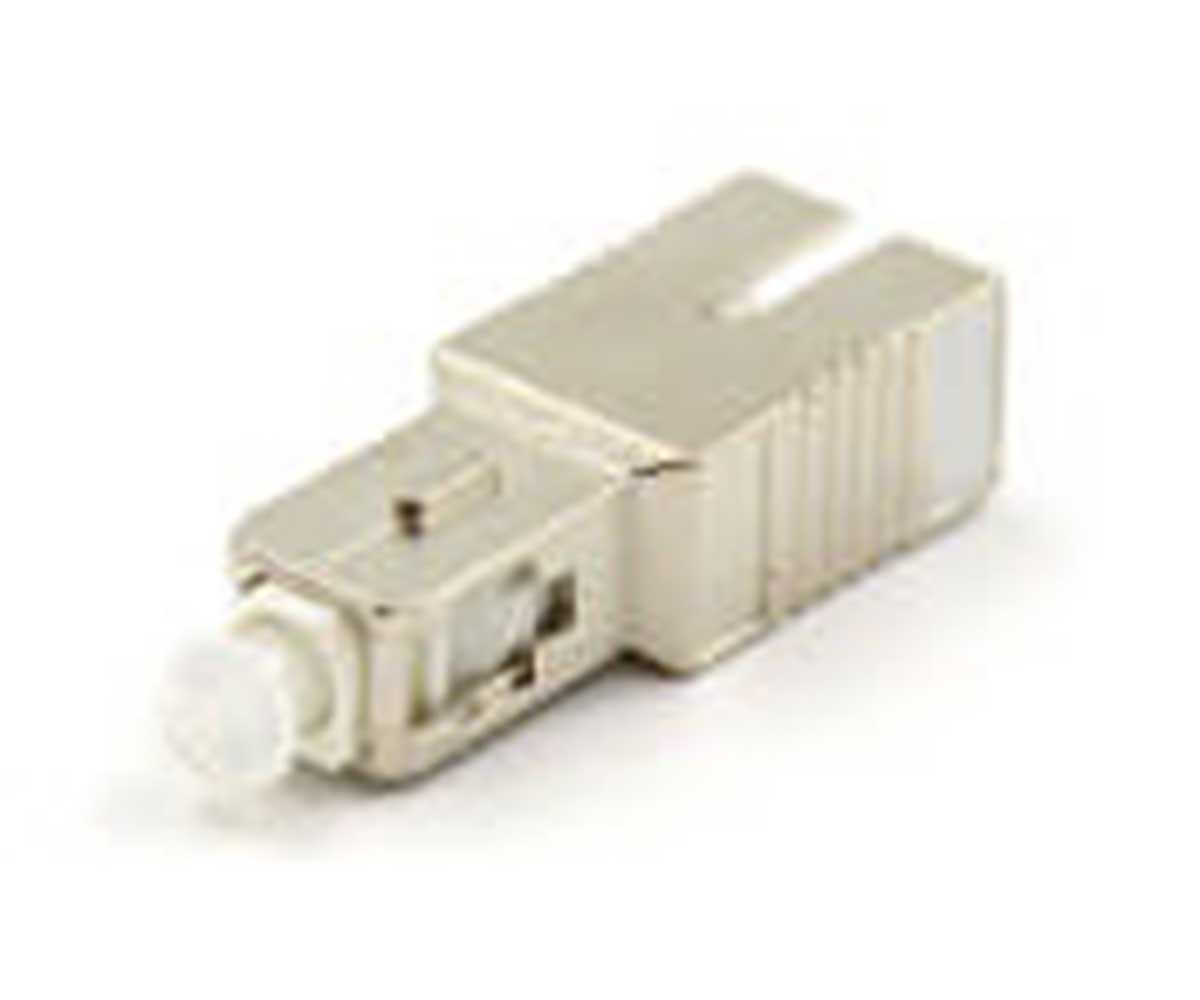

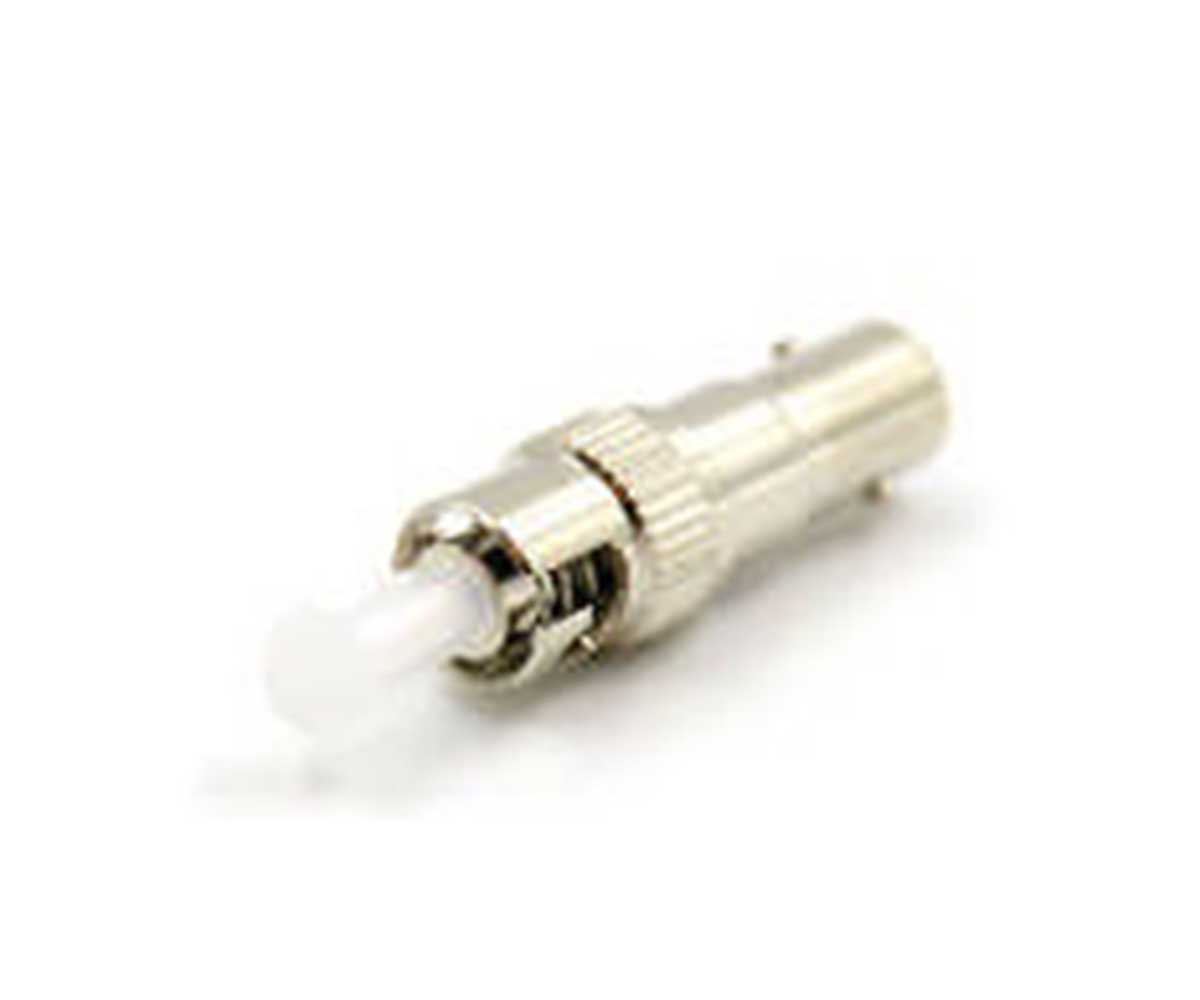

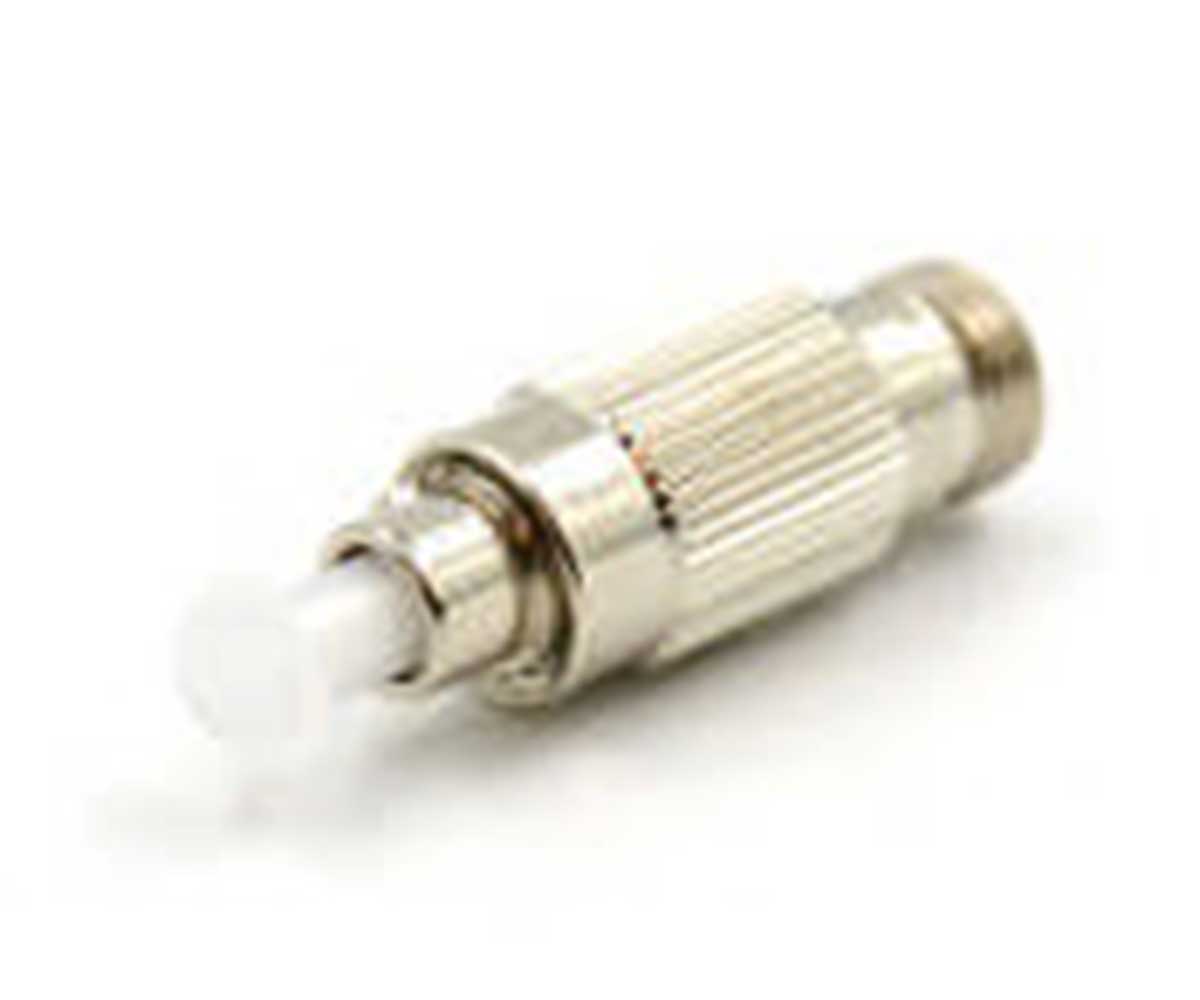

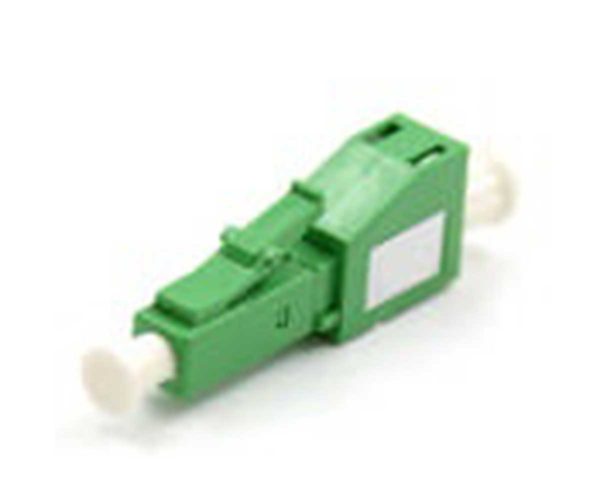

We offer a line of Build-out / In-Line (Male to Female) optical attenuators used to reduce the amount of power signal in Telecom, CATV, and Data Center / Enterprise networks. Attenuators support 1310 &1550nm wavelengths and are available in 1dB increment levels from 1 to 25dB attenuation values. View Specifications
Features
- 1 to 25dB fixed attenuation levels
- Excellent environmental & mechanical stability
- Industry standard connector interface
- Low insertion loss & PDL
Standards:
Applications:
Other compatible products...
SPECIFICATIONS
Operating wavelength range (nm)
1260 ~ 1625
Center wavelength (nm)
1310 / 1550
UPC Return loss (dB):
≥ 50
APC Return loss (dB):
≥ 60
PDL (dB)
≤ 0.1
Operating temperature (°C)
-40 to +85
Adapter / Connector type
FC/APC, FC/UPC, LC/APC, LC/UPC, SC/APC, SC/UPC, ST/UPC
Attenuation value (dB)
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25
