Outdoor Ruggedized Fiber Jumpers
Ideal in Outside Plant applications where fiber jumper cables are exposed to extreme temperatures, Montclair outdoor ruggedized fiber jumper cables (black jacket) provide the jacket flexibility and integrity in cold and hot environments. Available in SC, LC, FC, and ST connector types. View Specifications
Features
- Guaranteed high-performance and reliability
- High return loss (RL)
- IL & RL test results with each product
- Low insertion loss & PDL
- Outdoor-rated fiber cable jacketing for extreme temperatures
- Quality manufactured & tested to all industry standards
Standards:
Applications:
Other compatible products...

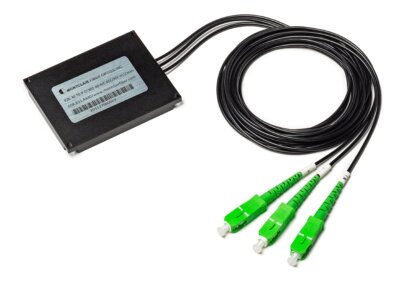

PLC Ruggedized Cassette Optical Splitter
144 Fiber Wall-mount Splice & Term Panel
96 Fiber Wall-mount Splice & Term Panel
24 Fiber Wall-mount Splice & Term Panel
12 Fiber Wall-mount Splice & Term Panel
Adapter plates
Singlemode Fiber Jumper Cables
EZ-QUICK Field-Installable Kit Bag
EZ-QUICK Field-Installable Connectors
PLC Rack-Mount Optical Splitter
SPECIFICATIONS
Insertion loss dB
Typical 0.15, Maximum 0.20
Return loss dB
50
Fiber core type
Singlemode 9/125 Bend insensitive G657A2
Fiber cable count
Simplex 1 fiber
Fiber cable jacket outer diameter (mm)
2.0, 3.0
Fiber color
Black
Operating temperature
-40 to +85 °C
Connector type
FC/APC to FC/APC, FC/UPC to FC/UPC, FC/APC to FC/UPC, LC/APC to LC/APC, LC/UPC to LC/UPC, LC/APC to LC/UPC, SC/APC to SC/APC, SC/UPC to SC/UPC, SC/APC to SC/UPC
Length (m)
1, 2, 3, 5, 10, 15
