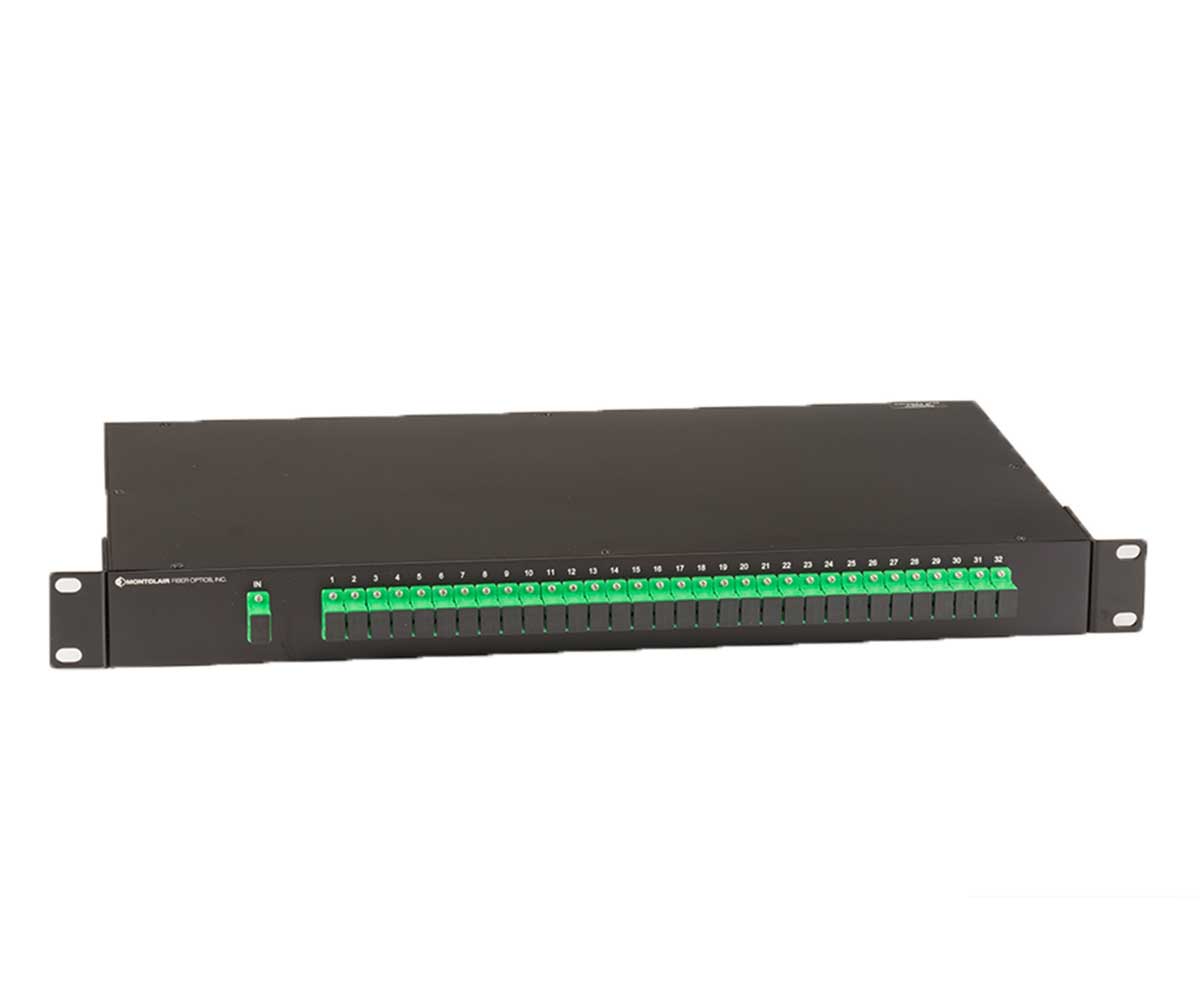

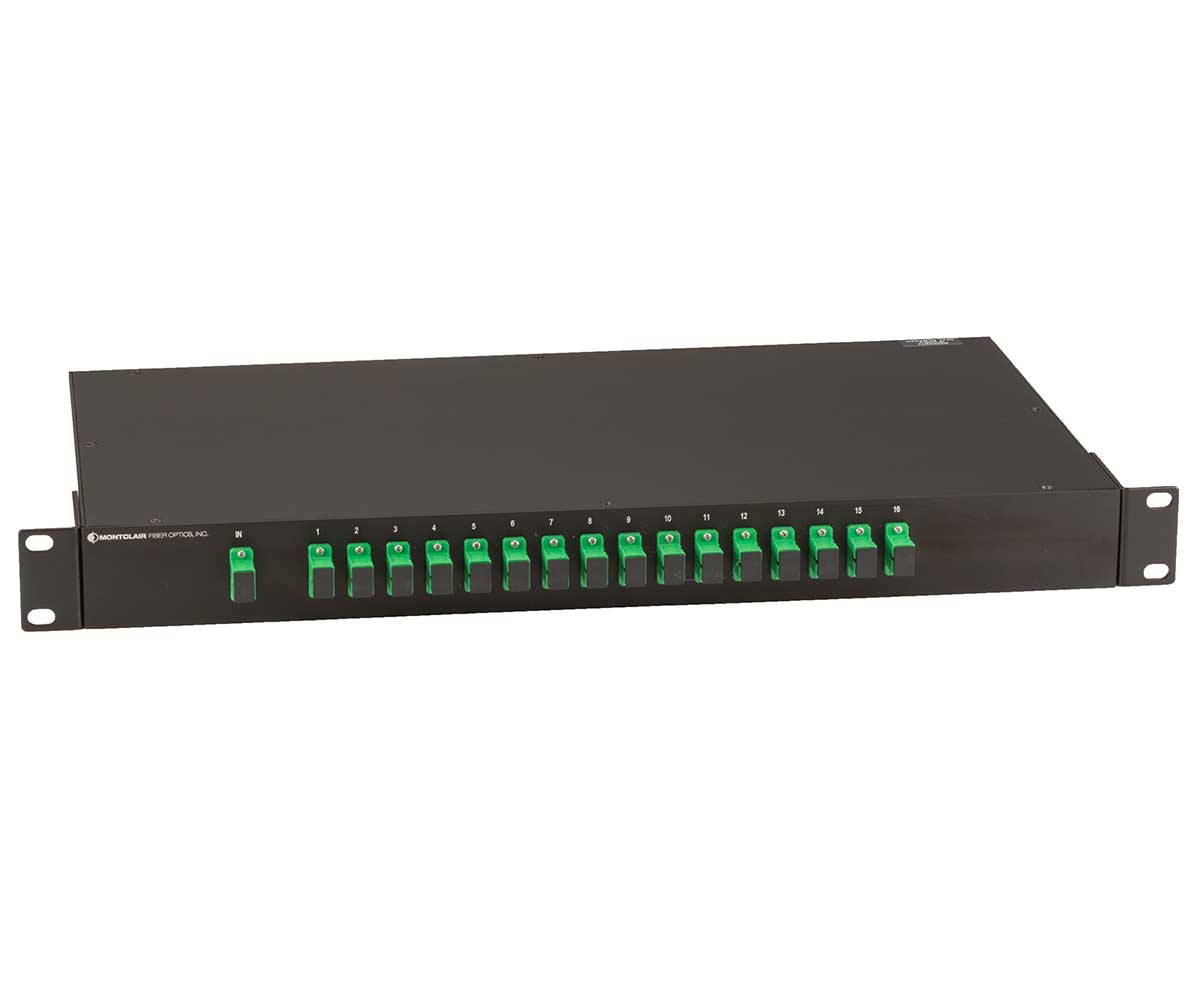

PLC Rack-Mount Optical Splitter

Designed for Central Office (CO) and Outside Plant (OSP) applications they provide superior optical performance, network reliability/stability, and future support of next generation NG-PON2 technologies. Offered in a wide range of standard and custom configurations for a variety of PON environments. View Specifications

Clear
Part No. N/A
Features
  • Excellent environmental & mechanical stability
  • High return loss & port-to-port uniformity
  • Low insertion loss & PDL
  • Premium grade components & connectivity
  • Robust housing
  • Wide operating temperature -40 to +85 °C
  • Wide operating wavelength 1260 ~ 1650nm
SPECIFICATIONS
Operating wavelength range (nm)

1260 ~ 1650

Port configuration

01×08, 01×12, 01×16, 01×24, 01×32, 01×64

Insertion Loss - typical (dB)

10.3 (1×8), 12.2 (1×12), 13.6 (1×16), 15.8 (1×24), 16.6 (1×32), 20.1 (1×64)

Uniformity - max. (dB)

0.8 (1×8), 1.20 (1×12), 1.40 (1×16), 1.50 (1×24), 15.0 (1×32), 2.00 (1×64)

PDL - max. (dB)

0.3 (1×8, 1×12, 1×16, 1×24, 1×32), 0.5 (1×64)

Return Loss (dB)

≥ 50

Directivity (dB)

≥ 55

Operating/Storage temperature range (°C)

-40° to +85°

Maximum power handling (mW)

500

Fiber type

Singlemode G657A1 bend insensitive

Adapter type

LC/APC, LC/UPC, SC/APC, SC/UPC
