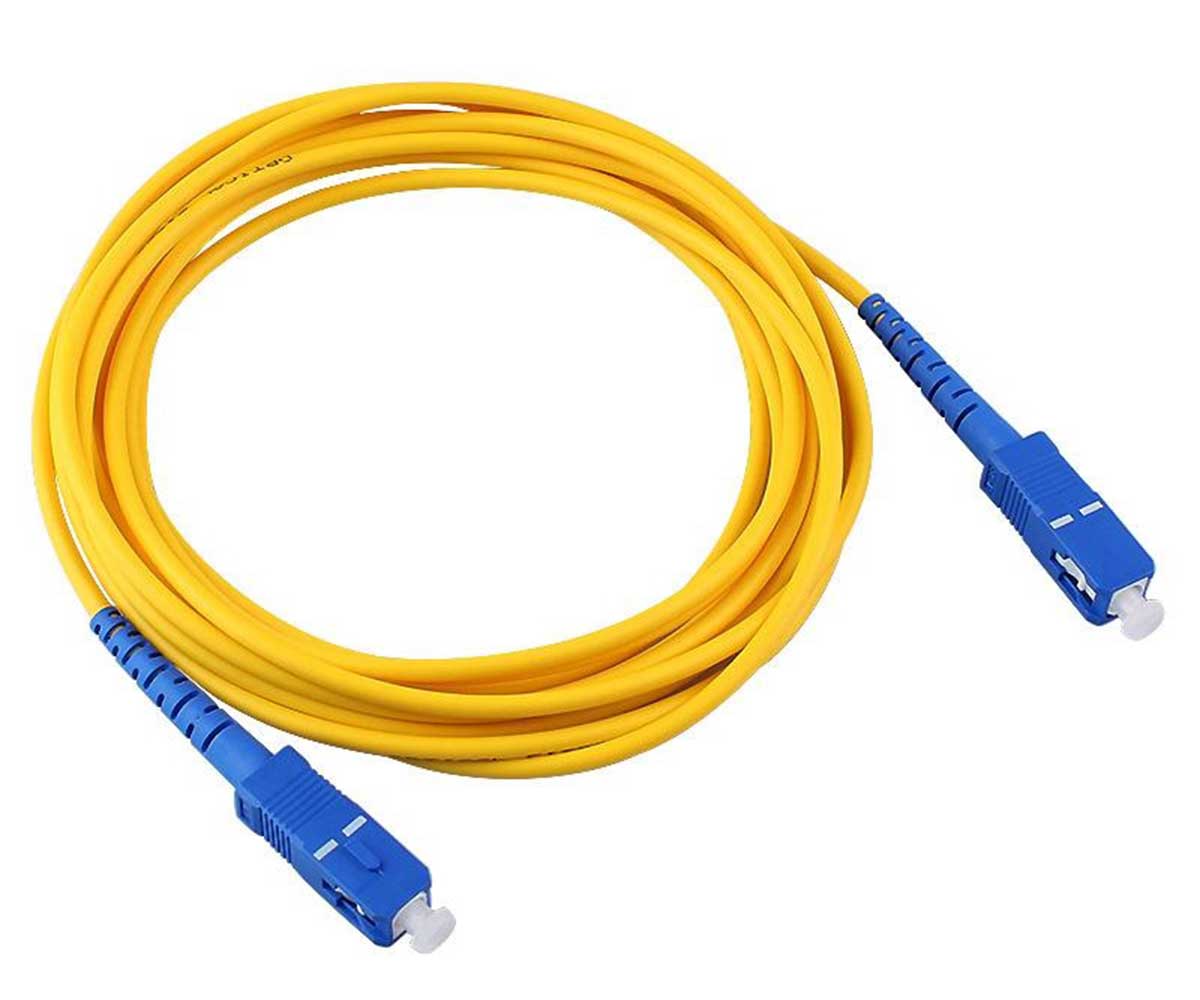

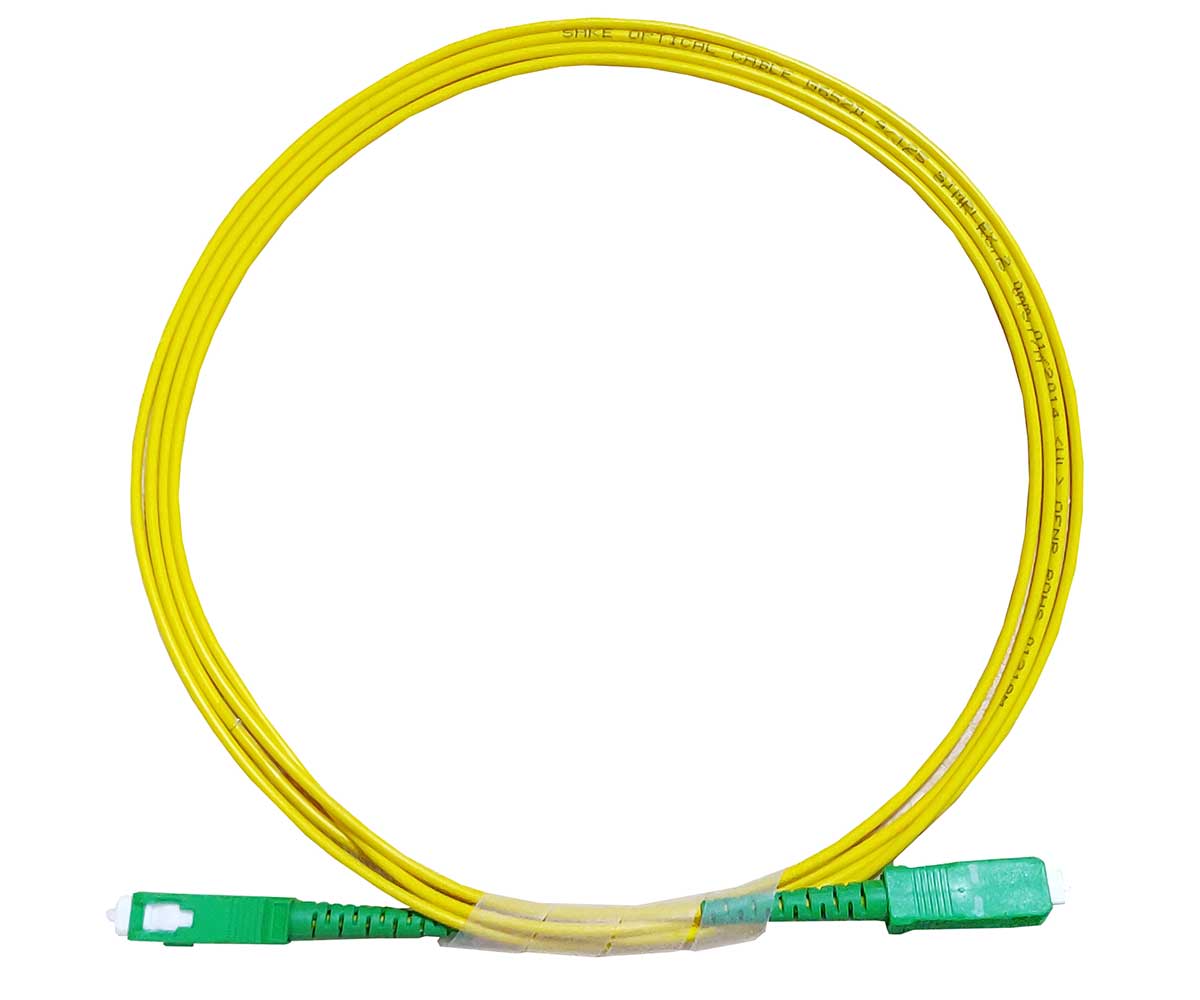

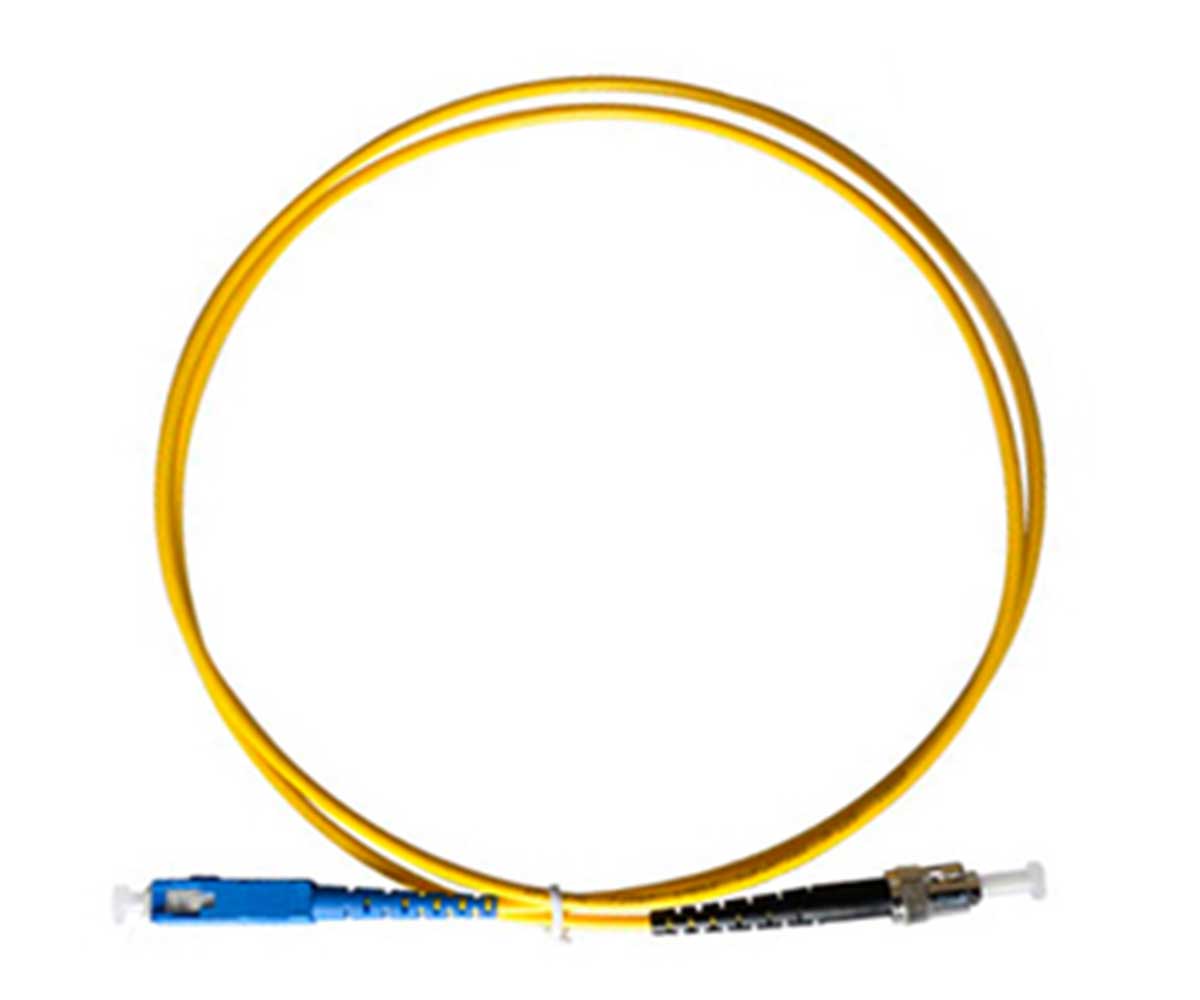

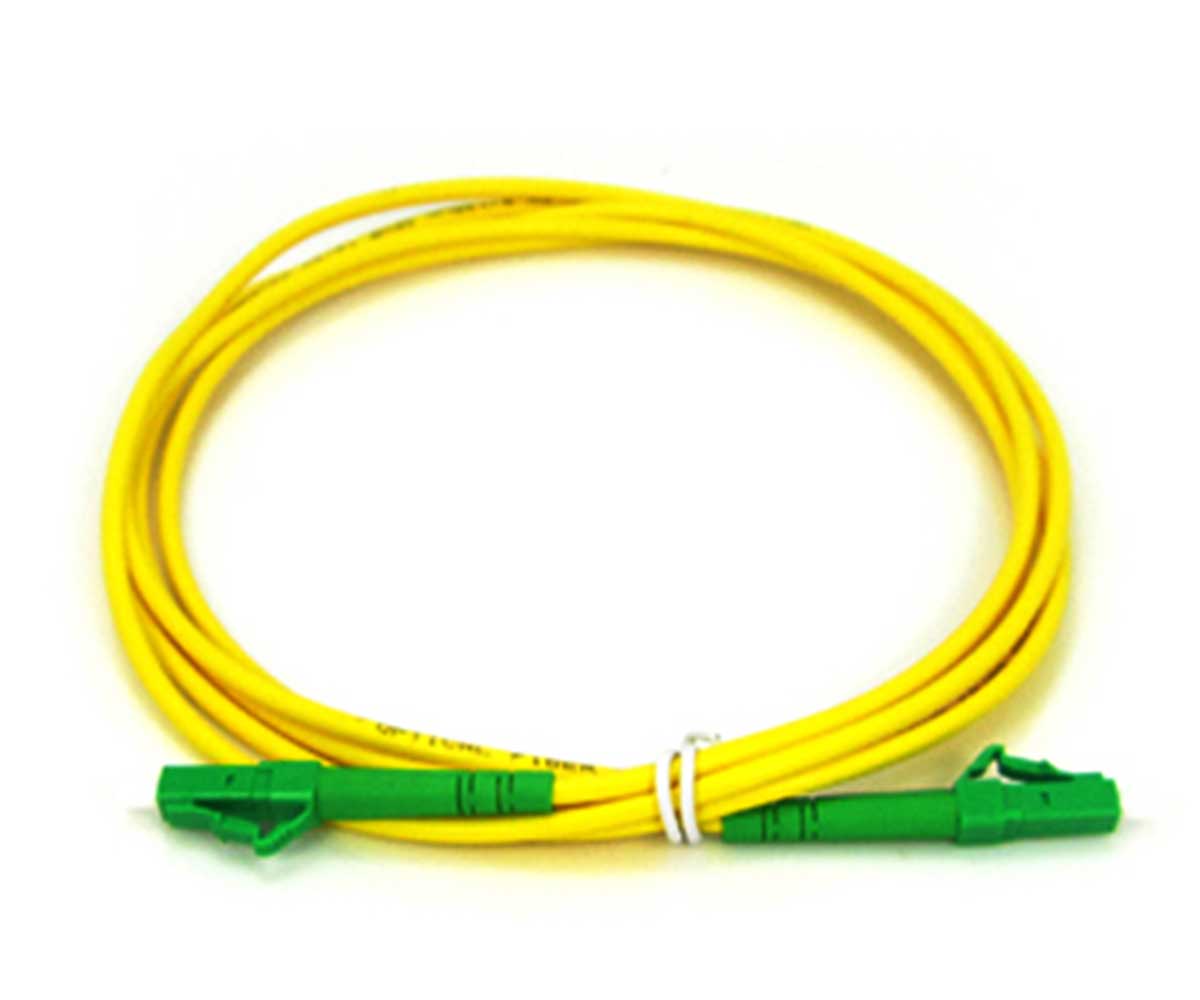

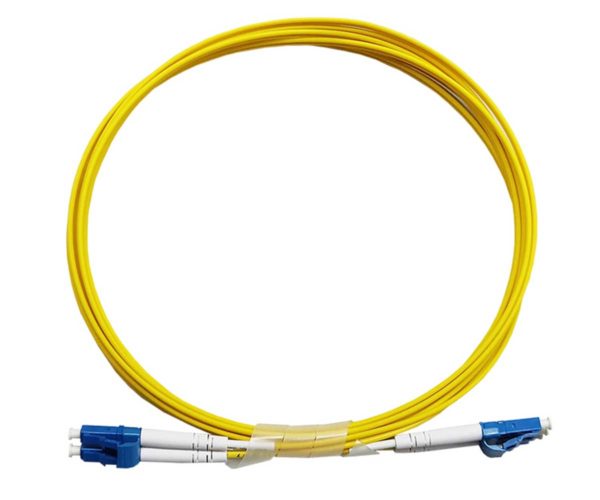

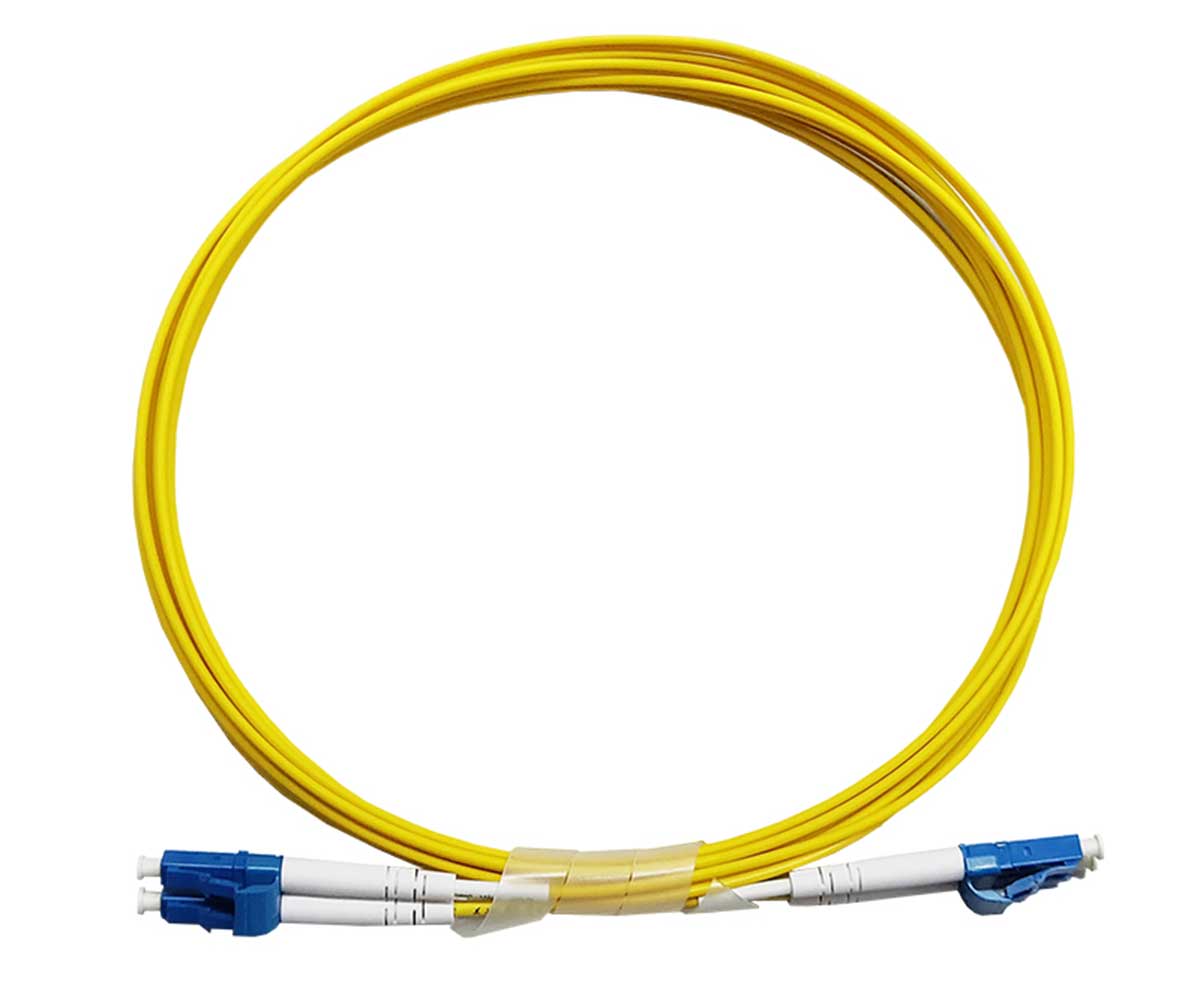

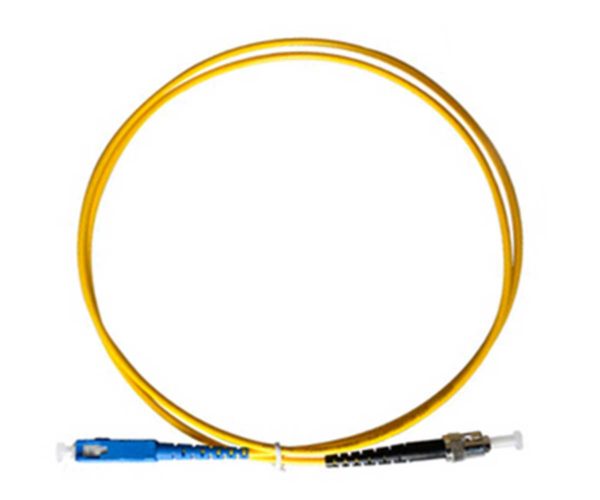

Singlemode Fiber Jumpers

Add Product to Quote

Part No.
For a Custom Design Configuration of this Product Provide Your Request Here

Product Details

Fiber jumper cables are ISO9001 manufactured and 100% optically tested to meet and exceed all industry standard requirements to assure guaranteed performance and reliability. We offer a wide selection of high-quality singlemode bend insensitive G657A fiber jumper cables for all types of optical network environments. Available in a wide range of color jacketing.

Features

  • Availible in many custom & pigtailed options
  • Guaranteed high-performance and reliability
  • High return loss (RL)
  • IL & RL test results with each product
  • Low insertion loss & PDL
  • Quality manufactured & tested to all industry standards

Standards

Product Specifications

Connector Type FC/APC to FC/APC, LC/APC to LC/APC, SC/APC to SC/APC, FC/UPC to FC/UPC, LC/UPC to LC/UPC, SC/UPC to SC/UPC, SC/APC to SC/UPC, FC/UPC to LC/UPC, FC/UPC to SC/UPC, FC/UPC to LC/APC, FC/UPC to SC/APC, LC/APC to SC/UPC, LC/UPC to SC/APC, LC/UPC to SC/UPC
Fiber Mode Singlemode
Length (m) 1, 2, 3, 5, 6, 7, 8, 9, 10, 15, 4
Cable Type Simplex, Duplex
Fiber count Simplex, Duplex
Cable jacket diam. (mm) 2, 3
Insertion loss dB Typical 0.15, Maximum 0.20
Return loss dB 50 UPC, 60 APC
Fiber core type Singlemode 9/125 Bend insensitive G657A2
Fiber cable jacket outer diameter (mm) 1.2, 1.6, 2.0, 3.0
Fiber color Yellow (standard); Available in several color options
